Jackson TEMPSTAR - Page 65

58
07610-003-61-42-T
PARTS
WASH & RINSE ARM/MANIFOLD ASSEMBLIES
ITEM QTY DESCRIPTION PART NUMBER
1 1 Upper Manifold 05700-031-34-82
2 4 Nut, 3/8"-16 S/S Hex 05310-276-01-00
3 4 Lockwasher,3/8 05311-276-01-00
4 2 Bolt, Hex 3/8”-16 x 7/8" Long 05306-011-36-95
5 2 O Ring 05330-111-35-15
6 1 Positioning Bracket, Manifold Tube 05700-011-34-63
7 1 Tube, Wash Manifold 05700-131-15-07
8 2 Gasket, Manifold 05700-111-35-03
9 2 Wash Arm 05700-021-35-93
10 5 Locknut, 1/4"-20 S/S Hex with Nylon Insert 05310-374-01-00
11 2 Clip, Retaining, Rinse Head Bushing 05340-112-01-11
12 4 Rinse Arm Washer 05330-011-42-10
13 2 Bushing, Rinse Head 05700-021-33-84
14 2 Rinse Arm 05700-003-58-94
15 4 Plug, Rinse Arm 04730-609-04-00
16 1 Lower Wash Manifold 05700-031-46-00
17 2 Bearing Assembly 05700-021-35-97
17a 1 Hub Nut 05700-011-35-94
17b 1 Hub Bushing 05700-011-35-96
17c 1 Hub Spindle 05700-011-35-95
17d 1 Ring, Retainer 05340-011-37-81
17e 15 3/16" Stainless Steel Ball 03120-100-02-00
17f 20 1/8" Stainless Steel Ball 03120-011-37-82
18 1 Rinse Manifold Assembly 05700-021-47-61
19 2 Bolt, Hex 3/8”-16 x 1 1/4" Long 05305-276-10-00
20 2 Bearing, Rinse Head 03120-004-12-13
(Continued)

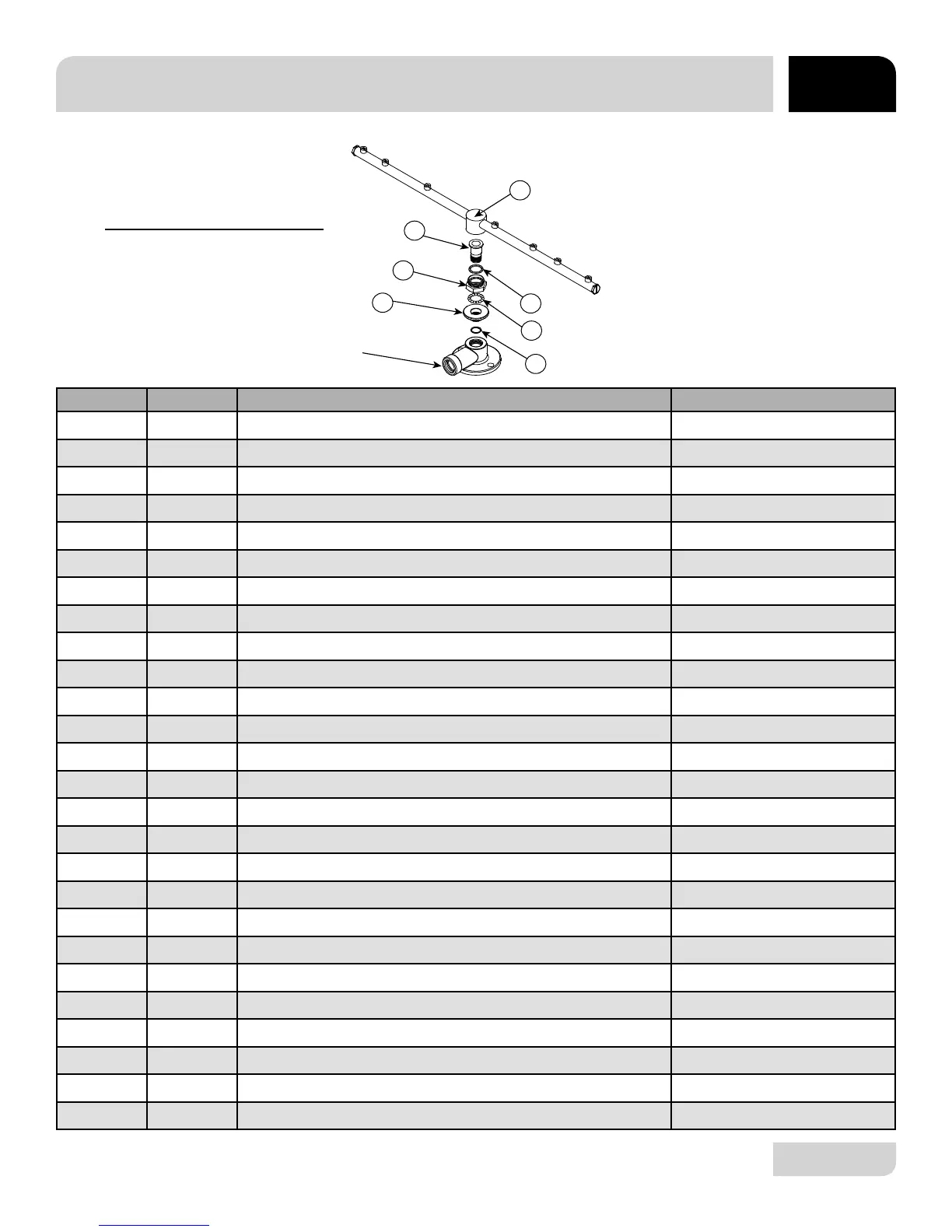

EXPLODED VIEW OF ITEM 17
17d
17e
17f
17b
17a
17c
9
1 or 16
