Jacobsen R-311T Parts & Maintenance Manual

81
> Change from previous revision
7

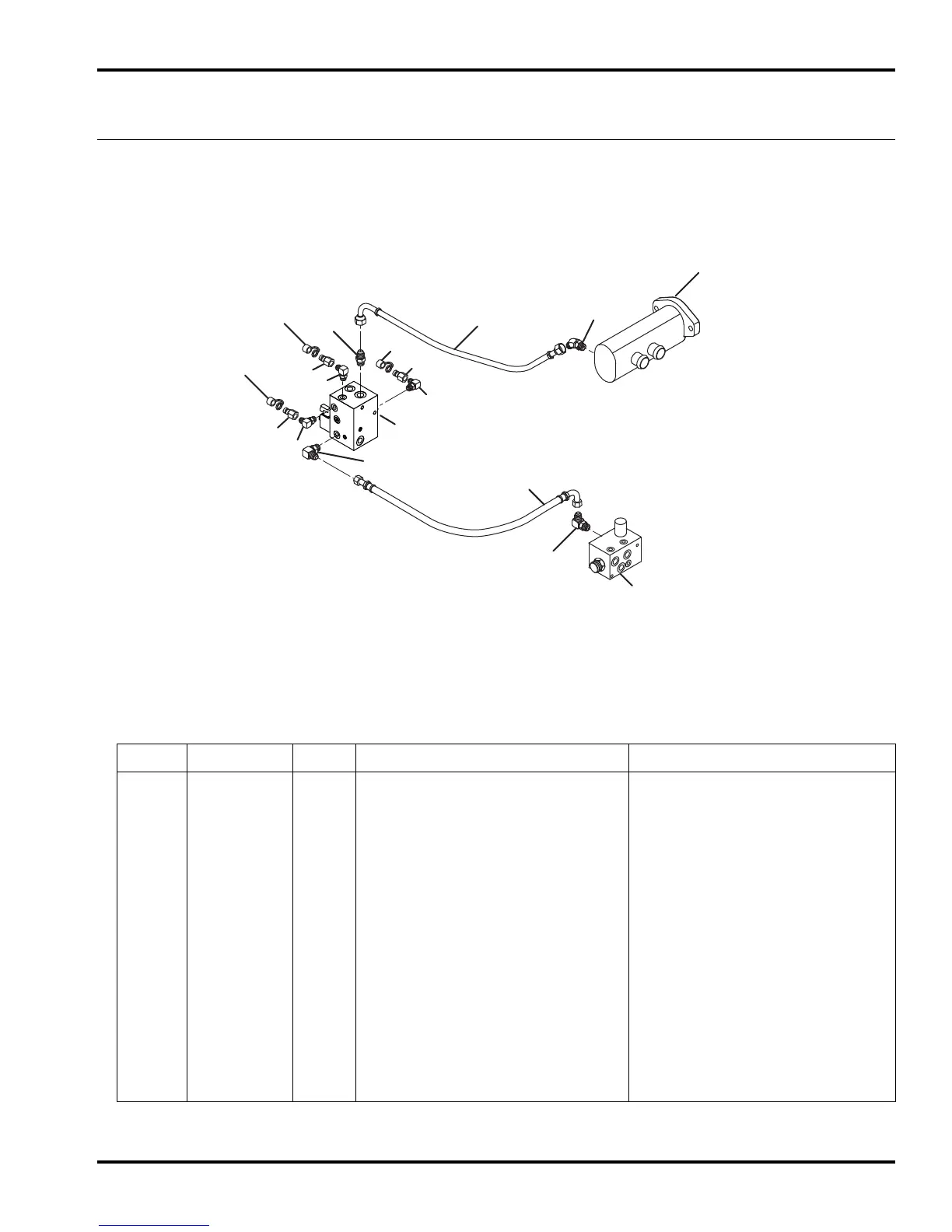

Control Valve
8
1
1
3
3
4
3
5
6
Gear Pump
2
1
2
2
ST
P
LD
T
SD
DL
4WD
4WD Valve
7
R-311
Item Part No. Qty. Description Serial Numbers/Notes
1
340065 3 Adapter, 90°
2 364945 3 Adapter, Diagnostic Port
3 363030 3 Dust Cover
4 339989 1 Adapter, Straight
5 1003105 1 Hose, Pump to Control Valve Control Valve Port P
6 340033 1 Adapter, 45°
7 340061 1 Adapter, 90°
8 4193020 1 Hose, Control Valve to 4WD Valve
9 339979 1 Adapter, Straight
28.1 Control Valve Hydraulics
Serial No. All
