Jacobsen R-311T - Front Deck Hydraulics

89
> Change from previous revision
R-311
Item Part No. Qty. Description Serial Numbers/Notes
1
1003584 1 Hose, Motor to Front Valve Front Deck Valve Port B
4192362 1 Front Deck Hose Assembly
2 1003584 1 • Hose, Front Valve to Motor Front Deck Valve Port A
3 4192360 1 • Hose, Front Deck to Bulkhead
4 340070 4 Adapter, 90°
5 339989 2 Adapter, Straight
6 362288 1 Adapter, 90°
132591 2 Motor Hose Assembly
7 132562 1 • Hose, Motor Outlet to Motor Inlet
8 132563 1 • Hose, Motor Drain
9 366445 2 Adapter, Tee
10 4202340 1 Adapter, 10-8 Reducer Union
11 339988 1 Adapter, Straight
12 4202120 1 Check Valve
4201921 1 • Body, Check Valve
4201920 1 • Cartridge, Check Valve

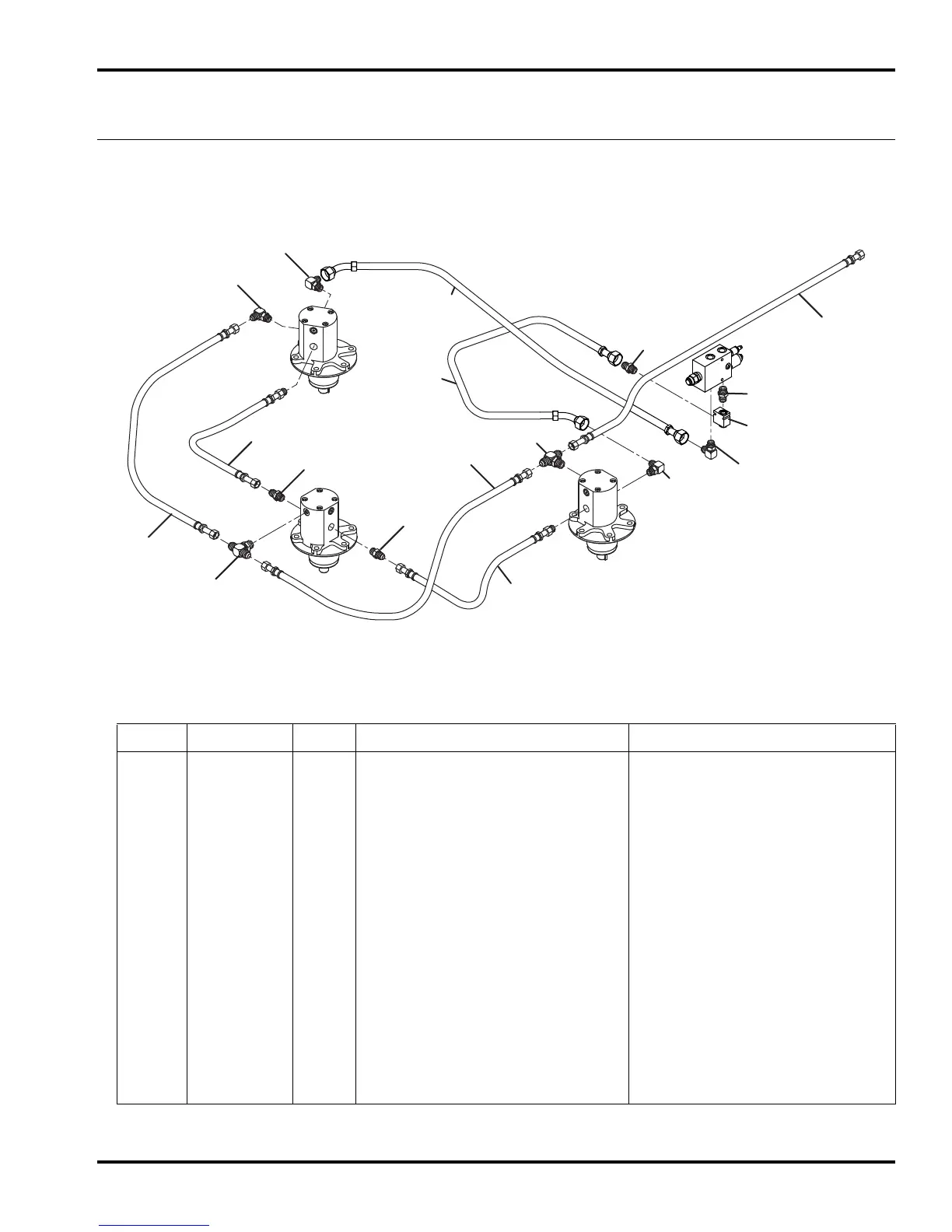

36.1 Front Deck Hydraulics
3
4
4
1
6
4
2
9
8
10
11
12
7
7
9
5
5
8
