Jacobsen R-311T - Left Wing Deck Hydraulics

90
> Change from previous revision
4
6
2
8
1
Outside
Motor
3
2
Inside
Motor
Left Wing
Deck Valve
2
11
13
12
10
9
5
1
7
R-311

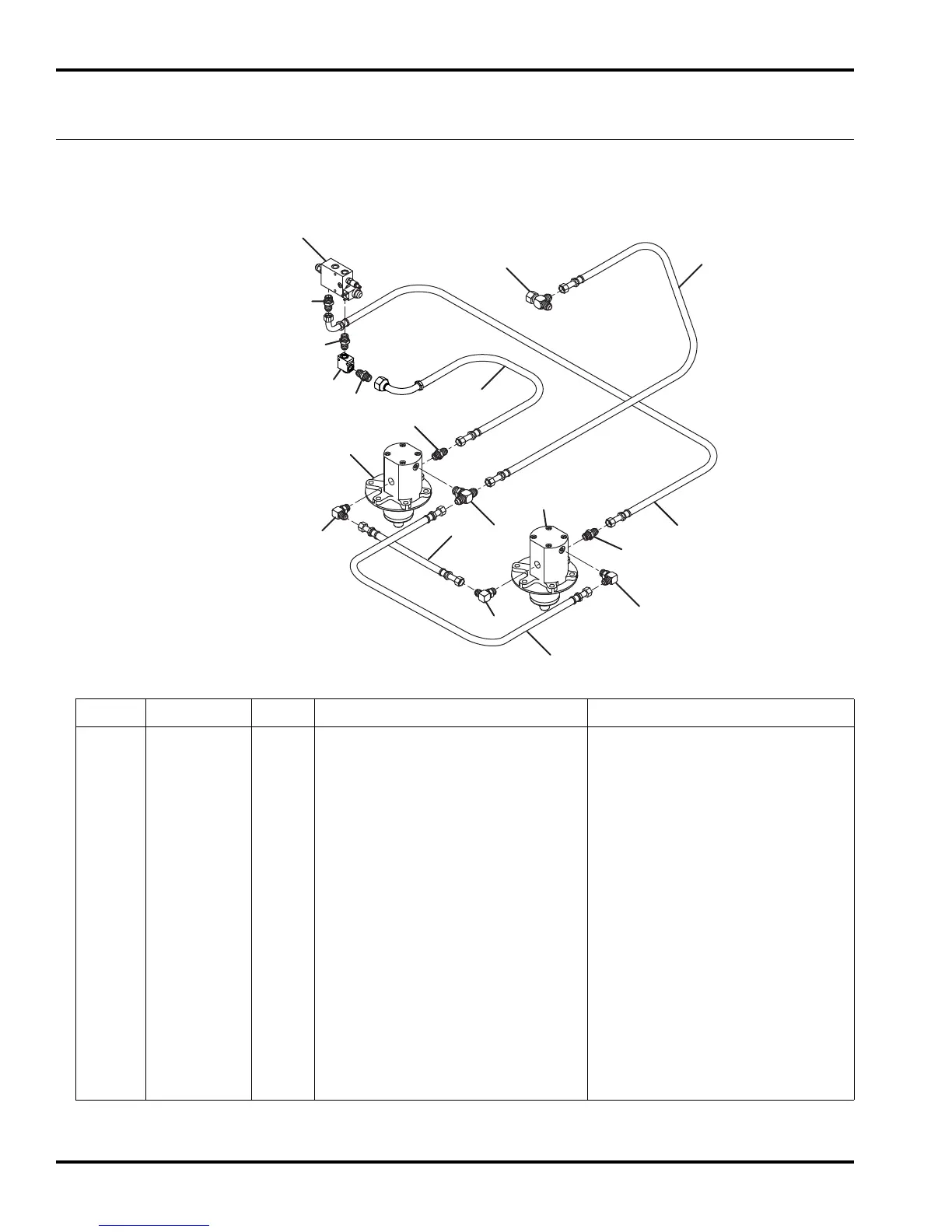

37.1 Left Wing Deck Hydraulics
Serial No. All
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
340070 2 Adapter, 90°
2 339989 4 Adapter, Straight
3 366445 1 Adapter, Tee
4 362288 1 Adapter, 90°
1003134 1 Left Wing Deck Hose Assembly
5 132575 1 • Hose, Left Valve to Motor Left Wing Deck Valve Port A
6 132576 1 • Hose, Motor to Left Valve Left Wing Deck Valve Port B
7 1003138 1 • Hose, Left Deck Drain
132594 1 Motor Hose Assembly
8 132595 1 • Hose, Motor Drain
9 132596 2 • Hose, Motor Outlet to Motor Inlet
10 359186 1 Adapter, Tee See 32.1
11 4202340 1 Adapter, 10-8 Reducer Union
12 339988 1 Adapter, Straight
13 4202120 1 Check Valve
4201921 1 • Body, Check Valve
4201920 1 • Cartridge, Check Valve
