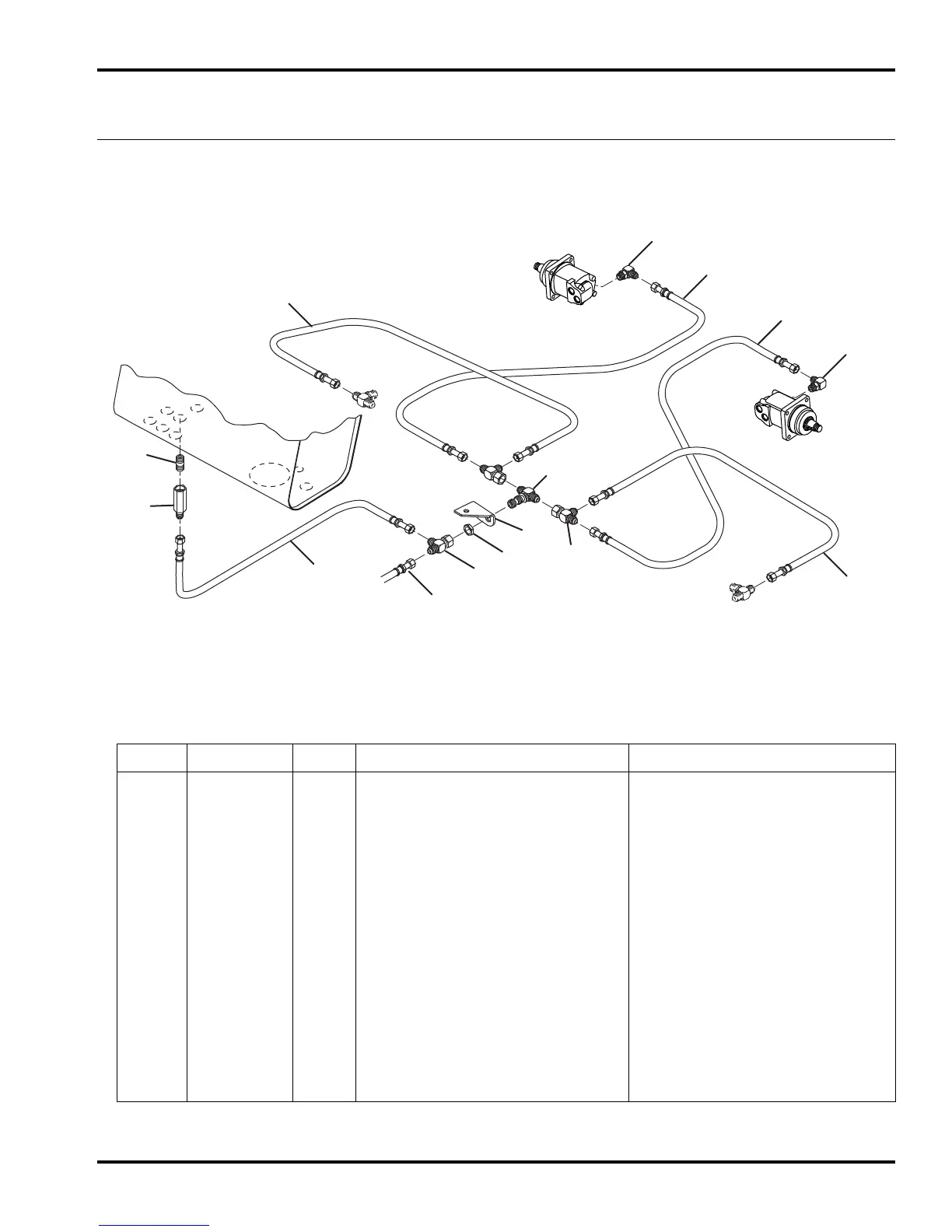

Jacobsen R-311T - Motor Return Hydraulics

85
> Change from previous revision
5
Hydraulic
Tank
11
12
4
6
13
8
4
9
10
1
3
2
7
1
R-311
Item Part No. Qty. Description Serial Numbers/Notes
1
340055 2 Adapter, 90°
2 1000770 1 Hose, Left Wheel Motor Drain See 25.1
3 1000770 1 Hose, Right Wheel Motor Drain See 25.1
4 359186 3 Adapter, Tee
5 1003138 1 Hose, Right Wing Deck Drain See 38.1
6 1003138 1 Hose, Left Wing Deck Drain See 37.1
7 360566 1 Adapter, Bulkhead Tee
8 339960 1 • Nut, Bulkhead
9 4192360 1 Front Deck Motor Drain Hose See 36.1
10 132561 1 Hose, Tee to Tank
11 365966 1 Valve, Check
12 324943 1 Nipple, Pipe
13 3001523.7 1 Plate, Bulkhead See 25.1
32.1 Motor Return Hydraulics
Serial No. All
