114
> Change from previous revision
5
4
6
4
7
3
7
6
2
1
4
R-3
1
1

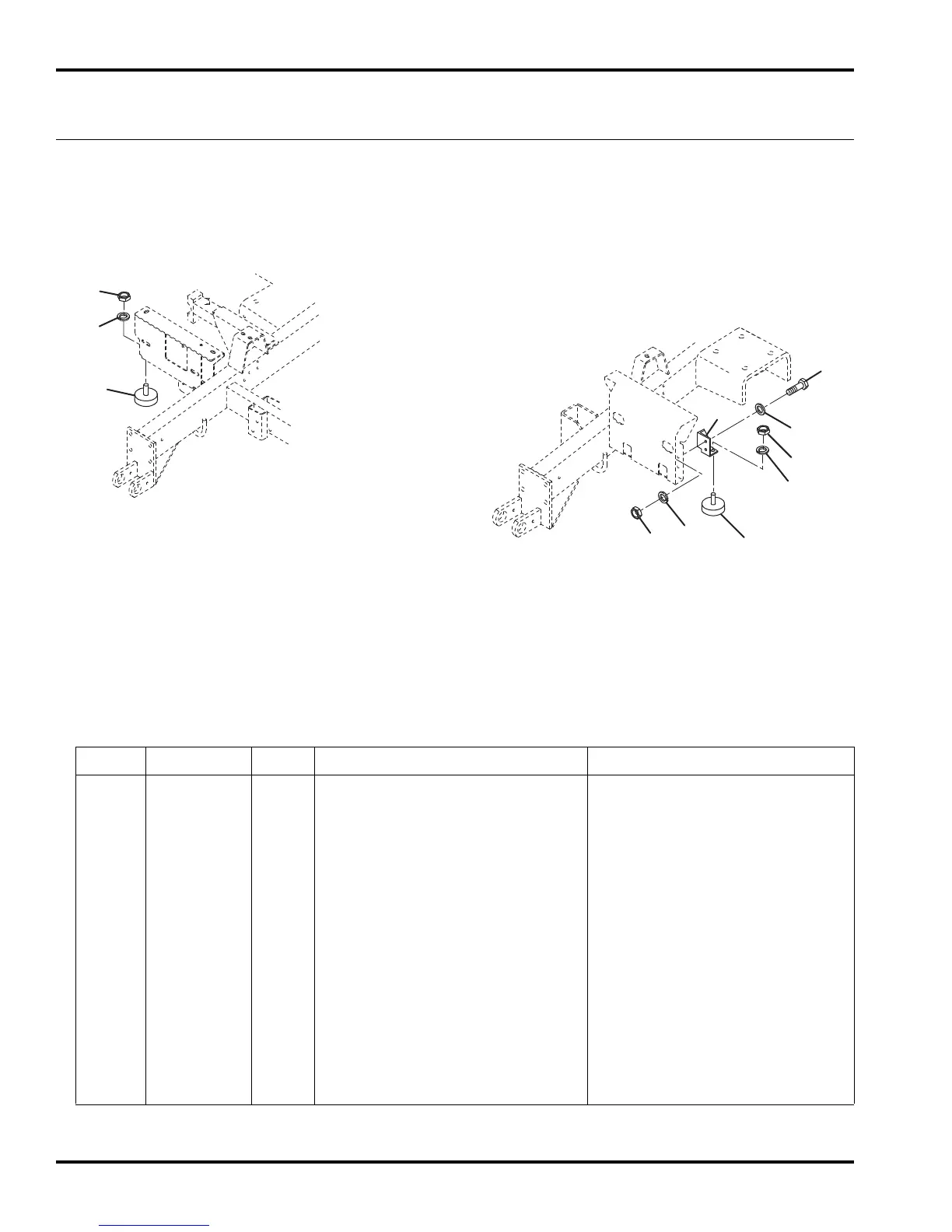

50.1 Deck Bumper
Serial No. All
Item
Part No.
Qty.
Description
Serial Numbers/Notes
1
3003427
1
Bracket, Deck Bumper
2
400262
2
Screw, 3/8-16 x 1” Hex Head
3
453011
2
Flat Washer, 3/8
4
446142
4
Lockwasher, 3/8 Heavy
5
445806
4
Nut, 3/8-16 Hex Nylock
6
361723
2
Stop, Rubber
7
444762
2
Locknut, 3/8-16 Hex Center
143
145
Table of Contents
English
3
Default Chapter
2
Service Parts
2
Table of Contents
3
1 Safety
4
Operating Safety
4
Important Safety Notes
5
2 Specifications
6
Product Identification
6
Engine
6
Mower
6
Cutting Units
7
Weights and Dimensions
7
Accessories and Support Literature
7
3 Adjustments
8
General
8
Ball Joints
8
Engine Alternator Belt
8
Brake Pedal
8
Parking Brake Switch
9
Cruise Control Switch
10
Mow Speed
10
Weight Transfer
10
Hydro Neutral
11
Reverse Sensing Switch
11
Steering Toe in
12
Turning Radius
12
Steering Stop Bolts
12
Cutting Height
13
Leveling Front Mower
14
Servicing Front Deck
14
Torque Specification
15
Specific Torque
15
Maintenance
16
General
16
Inspecting Blades
16
Maintenance General
16
Sharpening Blades
17
Engine
18
Engine Oil
18
Air Filter
19
Fuel
19
Fuel System
19
Battery
20
Jump Starting
20
Charging Battery
20
Hydraulic Hoses
21
Hydraulic Oil
21
Electrical System
22
Hydraulic Oil Filters
22
Muffler and Exhaust
22
Tires
22
Care and Cleaning
23
Rollover Protection Structure (ROPS)
23
Wheel Mounting Procedure
23
Radiator and Oil Cooler
24
Storage
25
5 Troubleshooting
26
General
26
6 Maintenance & Lubrication Charts 6
27
General
27
Lubrication Chart
27
Maintenance Charts
28
7 Notes 7
29
8 Parts List
30
How to Use the Parts Catalog
30
How to Order Parts
30
Español
33
Default Chapter
34
Manipulación Segura
34
1 Seguridad 1
35
Avisos Importantes sobre Seguridad
35
2 Especificaciones
36
Identificación del Producto
36
Motor
36
Cortacésped
36
Unidades de Corte
37
Pesos y Dimensiones
37
Accesorios E Información Adicional
37
3 Ajustes
38
Generalidades
38
Juntas Esféricas
38
Correa del Alternador del Motor
38
Pedal de Freno
39
Interruptor del Freno de Estacionamiento
39
Interruptor de Control de Crucero
40
Velocidad de Corte
40
Transferencia de Peso
40
Punto Muerto Hidrostático
41
Interruptor de Detección de Marcha atrás
41
Convergencia de la Dirección
42
Radio de Giro
42
Pernos de Parada de Dirección
42
Altura de Corte
43
Nivelación de la Unidad de Corte Delantera
44
Mantenimiento de la Plataforma Delantera
44
Especificacion de Par de Torsión
45
Par de Torsión Específico
45
4 Mantenimiento
46
Generalidades
46
Revisión de las Cuchillas
46
Afilado de las Cuchillas
47
Motor
48
Aceite de Motor
48
Filtro de Aire
49
Combustible
49
Sistema de Combustible
49
Batería
50
Arranque en Puente
50
Recarga de la Batería
50
Mangueras Hidráulicas
51
Aceite Hidráulico
51
Filtros de Aceite Hidráulico
52
Sistema Eléctrico
52
Escape y Silenciador
52
Neumáticos
52
Montaje de las Ruedas
53
Cuidados y Limpieza
53
Estructura de Protección Antivuelco (ROPS)
53
Refrigerador del Radiador y de Aceite
54
Almacenamiento
55
Solucion de Problemas
56
Generalidades
56
6 Cuadros de Mantenimiento y Lubricacion 6
57
Generalidades
57
Cuadro de Lubricación
57
Cuadros de Mantenimiento
58
7 Notas 7
59
8 Catalogo de Piezas
60
Cómo Usar el Catálogo de Piezas
60
Para Hacer Pedidos de Piezas
60
Decals
62
Hood and Front Cowling
64
Hood
66
Floorboard Platform
68
Console Support
70
Seat and Seat Base
72
Control Panel
74
Lift Valve
76
Throttle
77
Traction Pedal Linkage
78
Traction Linkage
80
Brake Pedal
82
Frame and Front Axle
84
Steering Axle
86
Steering Tower
88
Air Cleaner
90
Radiator and Oil Cooler
92
Engine
94
Engine Mounts
96
Engine Fuel Control
98
Muffler
99
Fuel Tank
100
Tank Support
102
Hydraulic Tank
104
Pumps and Control Valve
106
Traction Hydraulics
108
Gear Pump Hydraulics
110
Control Valve Hydraulics
111
Steering Hydraulics
112
Lift Hydraulics
113
Lift Return Hydraulics
114
Motor Return Hydraulics
115
Charge Hydraulics
116
Oil Cooler Hydraulics
117
Return Hydraulics
118
Front Deck Hydraulics
119
Left Wing Deck Hydraulics
120
Right Wing Deck Hydraulics
121
Hydraulic Clamping
122
Electrical Components
124
Electrical Routing
126
Harness
128
Front Lift Arms
130
Wing Lift Arms
132
Wing Deck Latch
134
Deck Mounting
136
Front Deck
138
Wing Deck
140
Caster Wheels
142
Deck Bumper
144
Deck Valve
145
Lift Valve
146
Control Valve
148
4WD Valve
149
Traction Pump
150
Rear Wheel Motor
152
Rops
153
Seat
154
Front Axle
156
Electrical Schematic
158
Hydraulic Schematic
162
O-Ring Chart
164
