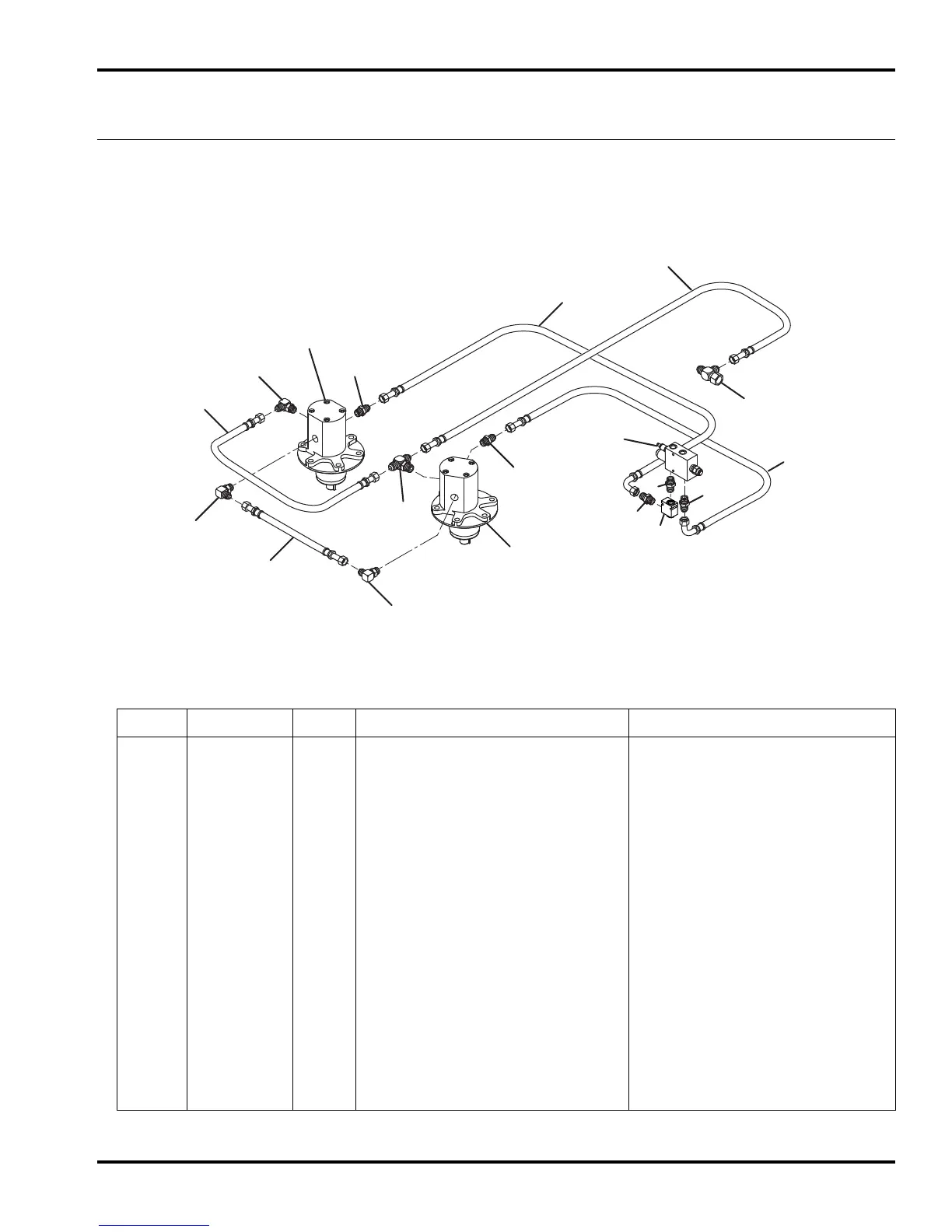

Jacobsen R-311T - Right Wing Deck Hydraulics

91
> Change from previous revision
10
11
12
13
Inside
Motor
4
1
2
5
2
3
8
Outside
Motor
7
9
1
Right Wing
Deck Valve
2
6
R-311
Item Part No. Qty. Description Serial Numbers/Notes
1
340070 2 Adapter, 90°
2 339989 4 Adapter, Straight
3 362288 1 Adapter, 90°
4 366445 1 Adapter, Tee
1003133 1 Right Wing Deck Hose Assembly
5 1003138 1 • Hose, Right Wing Deck Drain
6 1003137 1 • Hose, Right Valve to Motor Right Wing Deck Valve Port A
7 1003136 1 • Hose, Motor to Right Valve Right Wing Deck Valve Port B
132594 1 Motor Hose Assembly
8 132596 1 • Hose, Motor Drain
9 132595 1 • Hose, Motor Outlet to Motor Inlet
10 359186 1 Adapter, Tee See 32.1
11 4202340 1 Adapter, 10-8 Reducer Union
12 339988 1 Adapter, Straight
13 4202120 1 Check Valve
4201921 1 • Body, Check Valve
4201920 1 • Cartridge, Check Valve
38.1 Right Wing Deck Hydraulics
