3 ADJUSTMENTS
14
3.15 LEVELING FRONT MOWER _________________________________________________________________
1. Before leveling the front deck, the mower tires, and caster
wheels must be properly inflated. The cutting height is directly
related to the radius of the tire.
2. Set the cutting height of the front mower to 5-1/2 in. (140 mm).

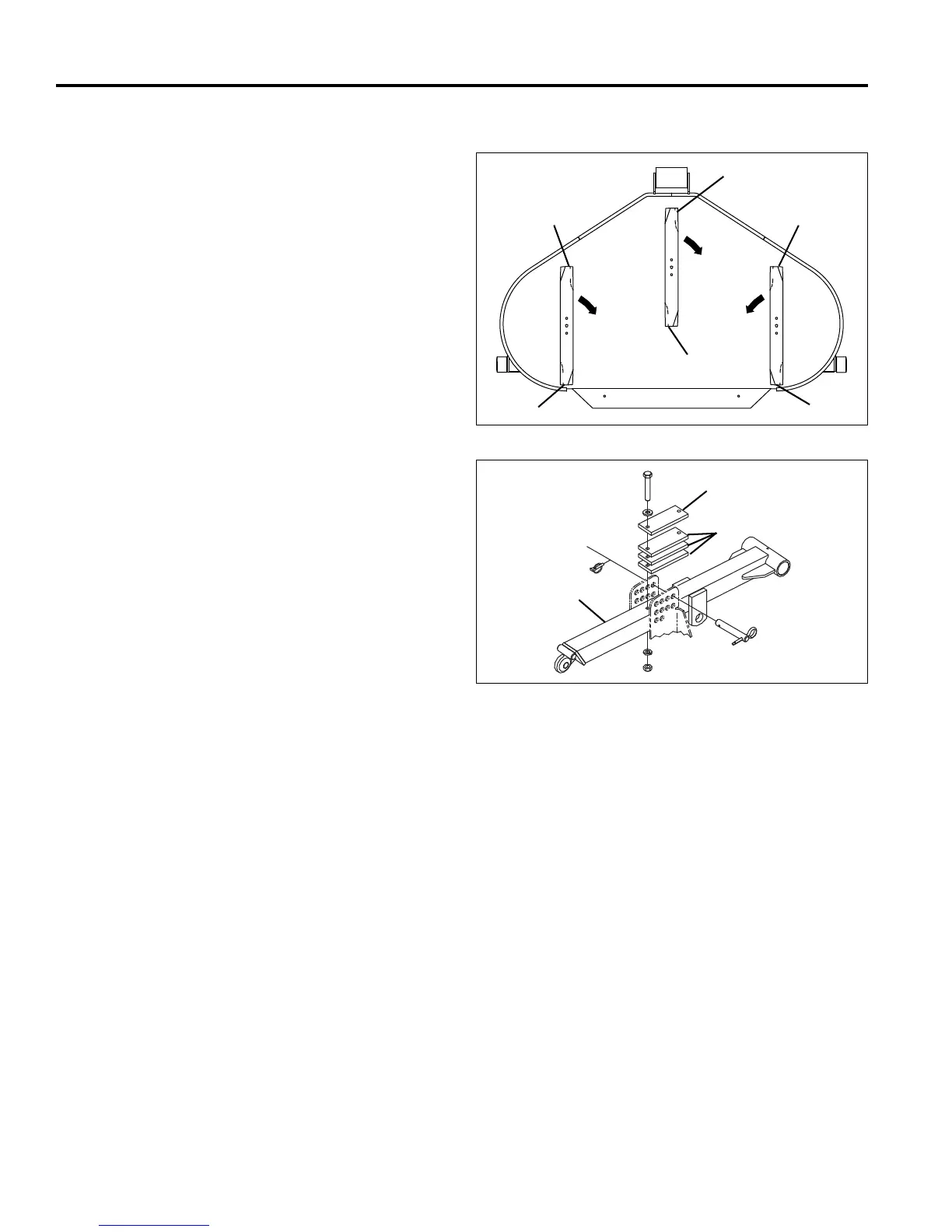

3. Rotate all blades so that one end of the blade (A) is pointing
forward.
4. Fully lower front deck. Measure from the ground to point (A)
and from the ground to point (B). Point (B) must be 1/8 in. (3
mm) higher than point (A).
5. Add or remove shims (C) as required between bumper pad (D)
and lift arm (E).
6. Once the front mower has been properly leveled, the cutting
height may be readjusted without changing the shims. It may be
necessary to re-level the deck if there is a change to the tires.
Figure 3N
Figure 3O
3.16 SERVICING FRONT DECK __________________________________________________________________
The front deck can be raised and tilted up to improve access to the
cutting unit and blades for service and cleaning. Be sure to disengage
all drives, engage parking brake, stop engine and remove ignition key
before working around deck.
To tilt front deck up to its service position:
1. Fully raise front and right wing deck. Stop engine.
2. Remove height of cut pins from front deck and carefully lift deck
to a perpendicular position.
3. Use height of cut pin on left front lift arm to pin deck in service
position.
4. Start engine and lower front deck to the ground. Stop engine
and remove ignition key.
To return deck to service:
1. Start engine and fully raise front deck. Stop engine. Remove pin
from left front lift arm and slowly lower front deck.
2. Install height of cut pins in correct set of holes. Start engine and
lower front deck.
