Jacobsen R-311T - Return Hydraulics

88
> Change from previous revision
R-311

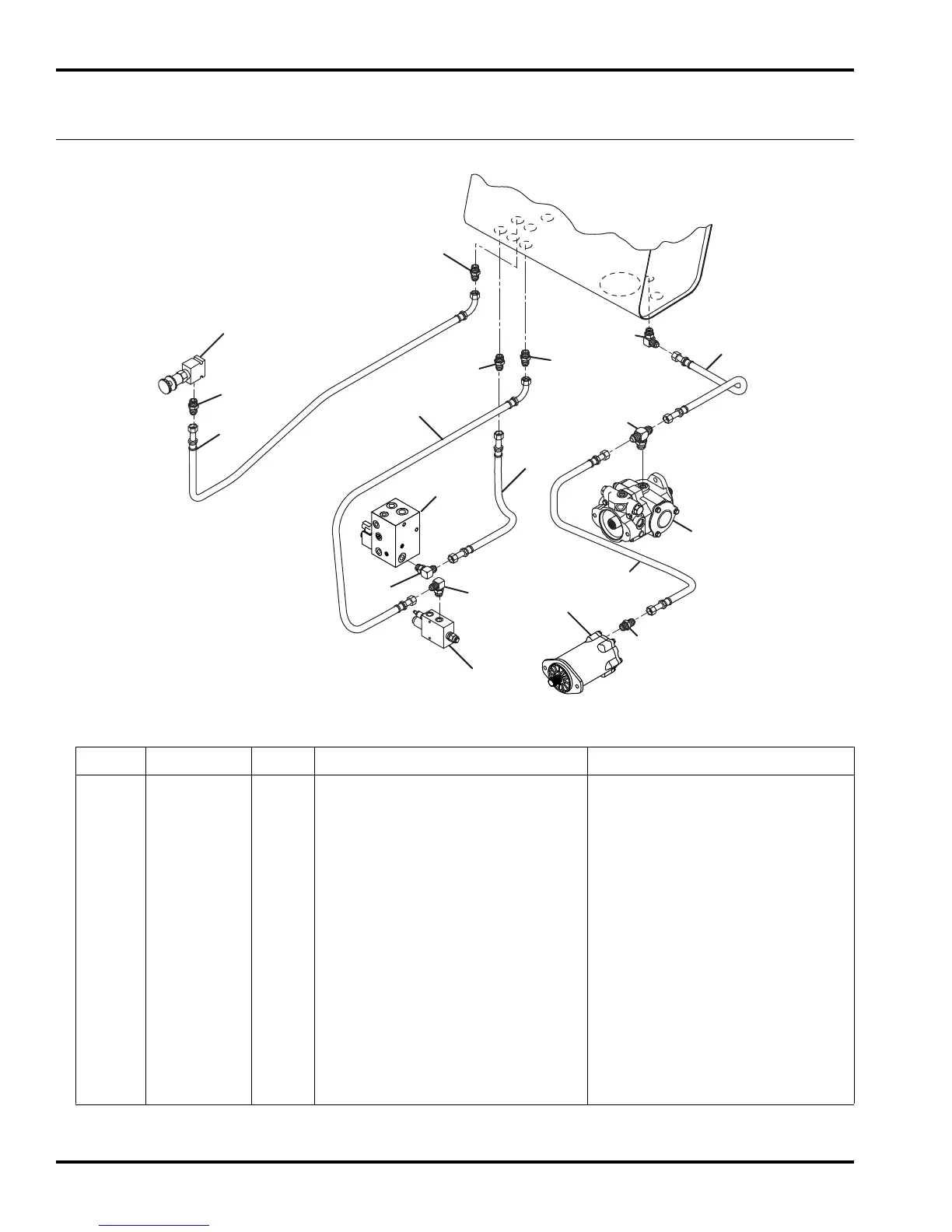

35.1 Return Hydraulics
Serial No. All
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
351124 2 Adapter, Straight
2 358949 1 Adapter, 90°
3 357613 1 Adapter, Straight
4 4188620 1 Hose, Backpressure Valve to Tank
5 351108 1 Adapter, Straight
6 132579 1 Hose, Control Valve to Tank
7 340066 1 Adapter, 90°
8 132580 1 Hose, Right Deck Valve to Tank
9 354065 1 Adapter, 90°
10 4173221 1 Hose, Traction Pump to Tank
11 4173200 1 Adapter, Tee
12 4173220 1 Hose, Axle Motor to Traction Pump
13 351109 1 Adapter, Straight
3
13
9
Right Wing
Deck Valve
2
1
1
Front Axle
Motor
8
7
Traction
Pump
10
12
Control
Valve
6
11
4
5
Backpressure
Valve
Hydraulic
Valve
ST
P
LD
T
SD
DL
4WD
