Jacobsen R-311T Parts & Maintenance Manual

122
> Change from previous revision
4
3
2
2
10
11
2
5
9
6
1
7
8
R-311

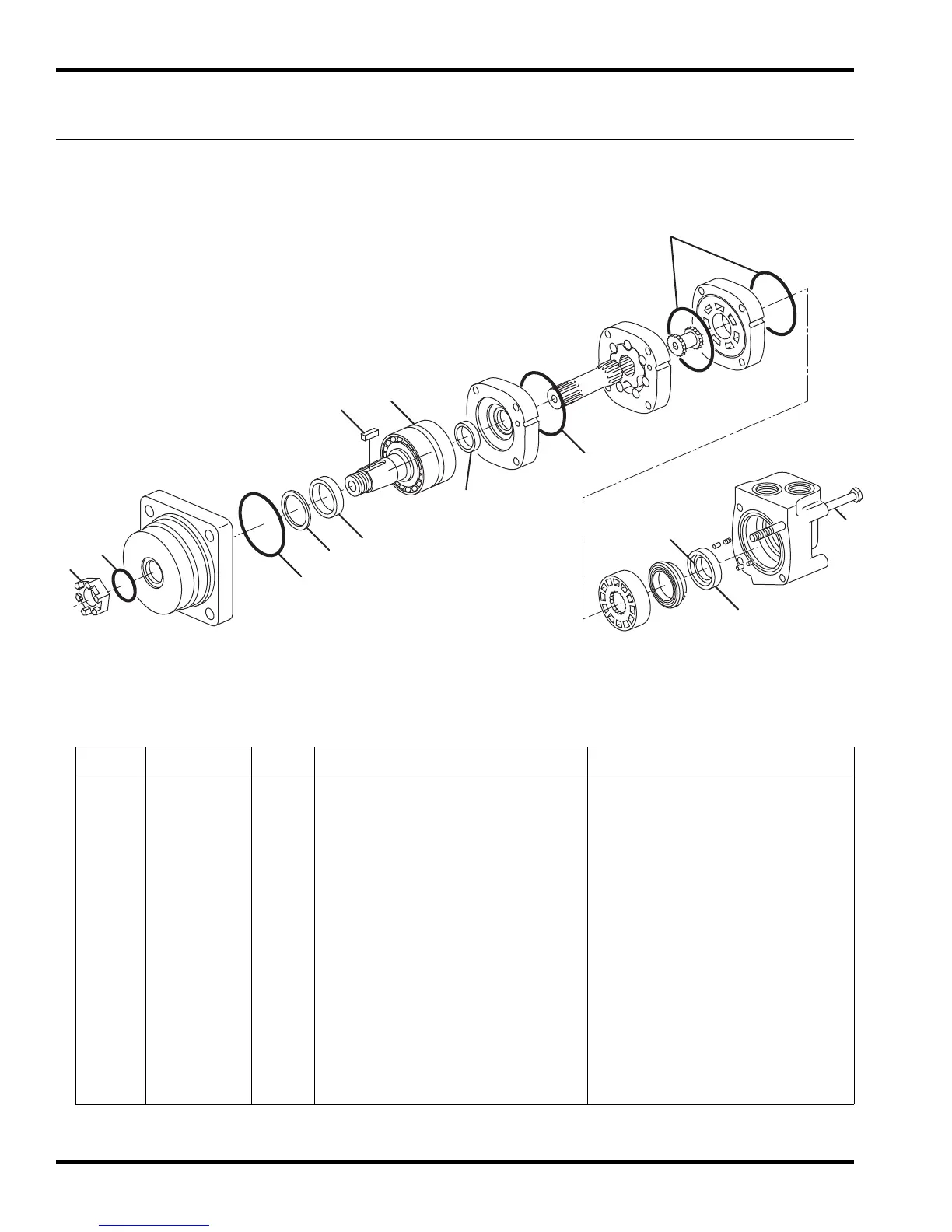

56.1 Rear Wheel Motor
Part Number 4178560
Serial No. All
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
l
1
N/S 1 Seal Exclusion
l 2 N/S 4 Seal, 3” I.D.
t 3 N/S 1 Back-Up Ring
t 4 N/S 1 Shaft Seal
5 5003384 1 Shaft and Bearing Kit
6 554780 1 Key
7 554779 1 Nut
l 8 N/S 1 Shaft, Face Seal
l 9 N/S 1 Inner Face Seal
l 10 N/S 1 Outer Face Seal
11 556450 4 Bolt
l 4178561 1 Rear Seal Kit
t 4178562 1 Front Seal Kit
