MAINTENANCE & LUBRICATION CHARTS 6
27
6 MAINTENANCE & LUBRICATION CHARTS
6.1 GENERAL ________________________________________________________________________________
1. Always clean the grease fitting before and after lubricating.
2. Lubricate with grease that meets or exceeds NLGI Grade 2 LB
specifications. Apply grease with a manual grease gun and fill
slowly until grease begins to seep out. Do not use compressed
air guns.
3. Periodically apply a small amount of lithium based grease to the
seat runners.
4. For smooth operation of all levers, pivot points and other friction
points that are not shown on the lubrication chart apply several
drops of SAE 30 oil every 40 hours or as required.
5. Grease fittings every 25 hours.

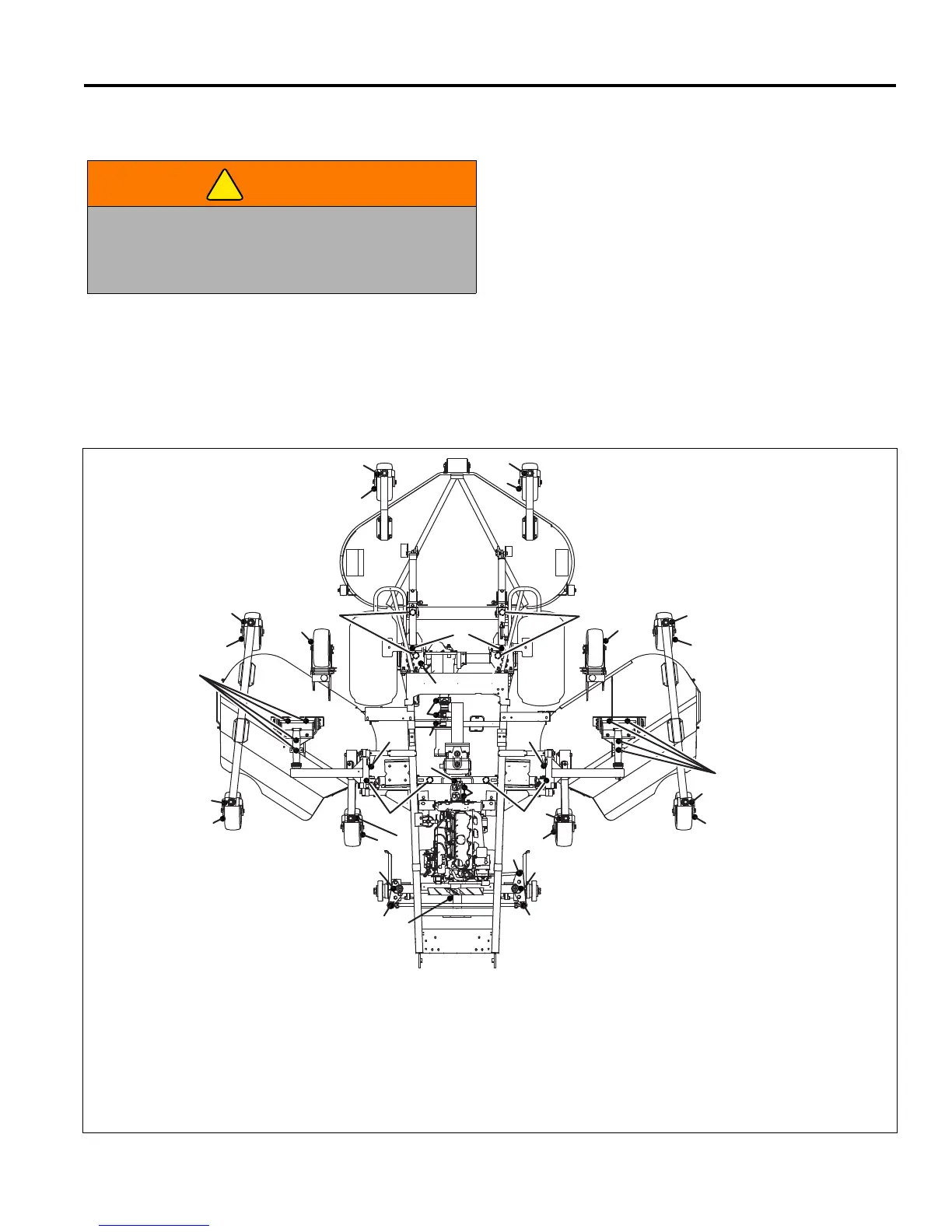

6.2 LUBRICATION CHART______________________________________________________________________
WARNING
Before you clean, adjust, or repair this equipment disengage all
drives, lower implements to the ground, engage parking brake,
stop engine, and remove key from ignition switch to prevent
injuries.
E
E
E
E
E
E
E
E
E
E
I
M
F
F
F
F
F
F
F
F
J
J
J
N
G
G
K
O
A
B
B
C
C
D
D
H
H
L
Description Fittings
A Front mower arm pivot (2)
B Front lift cylinders (4)
C Wing mower arm pivot (2)
D Wing mower lift cylinders (4)
E Caster Wheels (10)
F Caster Arms (8)
G Deck Pivot Housing (8)
H Steering Axle Spindle Housing (2)
I Steering Axle Pivot (1)
J Steering Axle Ball Joints (4)
K Brake Pedal Pivot (1)
L Pump Drive Shaft Crosses (2)
M Pump Drive Shaft Spline (2)
N Axle Drive Shaft Crosses (2)
O Axle Drive Shaft Spline (1)
