GB-11
FRONTLINE 960 Series: LQ
MAINTENANCE AND PARTS MANUAL
GB
5 LUBRICATION AND MAINTENANCE
5.1 ENGINE: First 50 working hours and
every 250 working hours.
Change Engine Oil.
(a) Warm up the engine first and then shut it
off. Remove oil drain plug from the bottom
of the crankcase and wipe it off.
(b) Replace the drain plug and fill engine with
10.6 litres of oil(with filter).

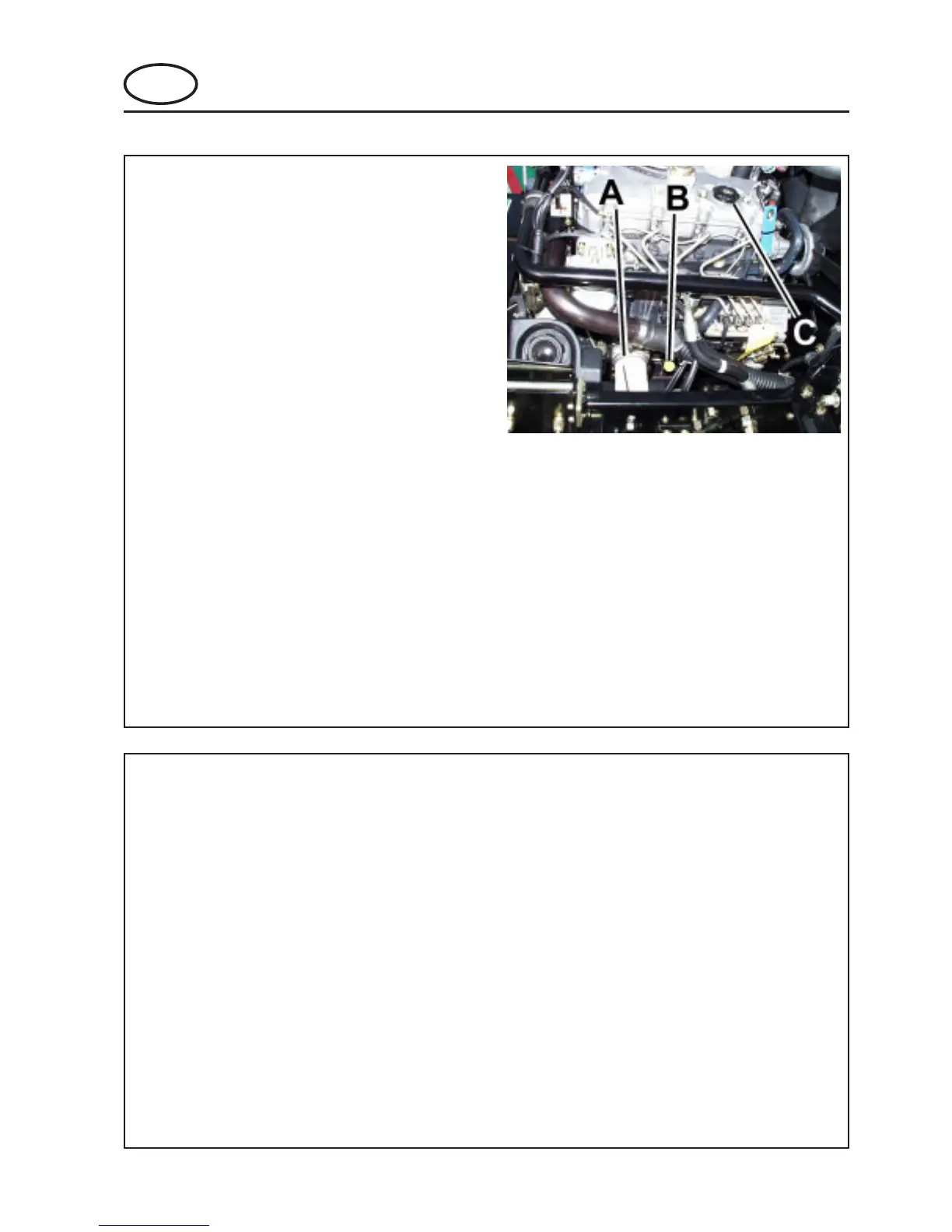

Fig.1 A Oil Fill, B Dipstick, C Oil fill
Change Engine Oil Filter (A)
(a) Remove single-unit cartridge (A)
(b) Clean area on crankcase.
(c) Apply thin coat of oil to cartridge gasket
before installing.
(d) Tighten filter by hand only.
(e) Check for oil leaks around the cartridge
gasket after engine is started.
Fig.1
5.2 MACHINE: Lubricate the following
points. Weekly or every 40 working
hours.
1. Lubricate the following with Shell Darina R2
grease. (Fig.3)
(a) Lift arm pivots.
(b) Rear Axle centre pivot.
(c) Steering rams-inner pivots.
(d) Steering ram rod end.
(e) Steering Track Rod, Rod End.
(f) Lift arm yoke pivots.
(g) Belt pulleys.
(h) Deck Castor wheels
LUBRICATION
