GB-21
FRONTLINE 960 Series: LQ
MAINTENANCE AND PARTS MANUAL
GB
9 SCHEMATICS

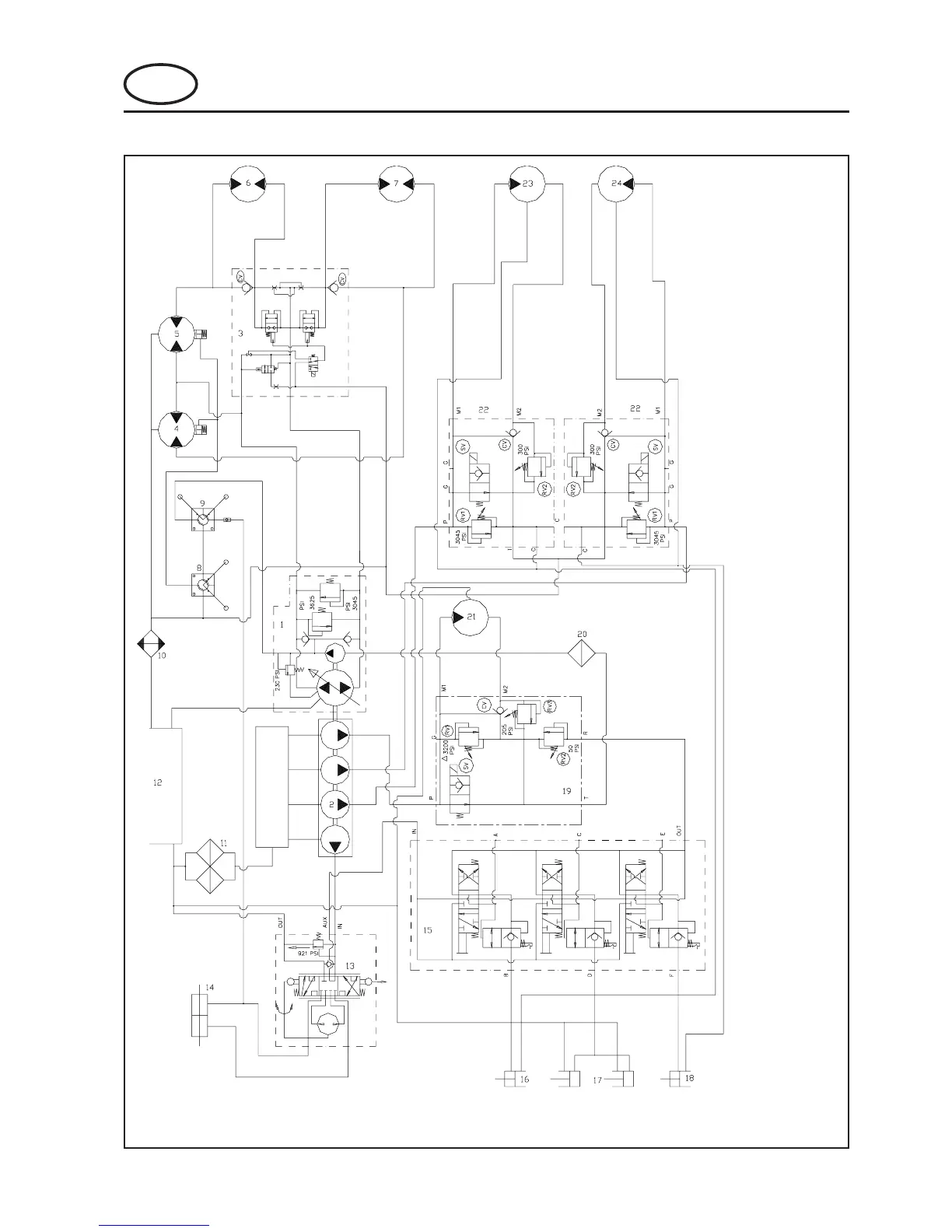

9.1 HYDRAULIC CIRCUIT
1. Transmission Pump
2. 4 Section Pump
3. Transmission Valve
4. RF Wheel Motor
5. LF Wheel Motor
6. LR Wheel Motor
7. RR Wheel Motor
8. Brake Valve
9. Aux Brake Valve
10. Oil Cooler
11. Filter Head
12. Reservoir/Tank
13. Steer Valve
14. Steer Ram
15. Lift Valve
16. RH Lift Cylinder
17. Centre Lift Cyl's
18. LH Lift Cylinder
19. Front Cutter Deck Valve
20. Charge Filter
21. Front Cutter Deck Motor
22. Wing Deck Valves
23. LH Cutter Motor
24. RH Cutter Motor
25. Inlet Manifold
