GB-23
FRONTLINE 960 Series: LQ
MAINTENANCE AND PARTS MANUAL
GB

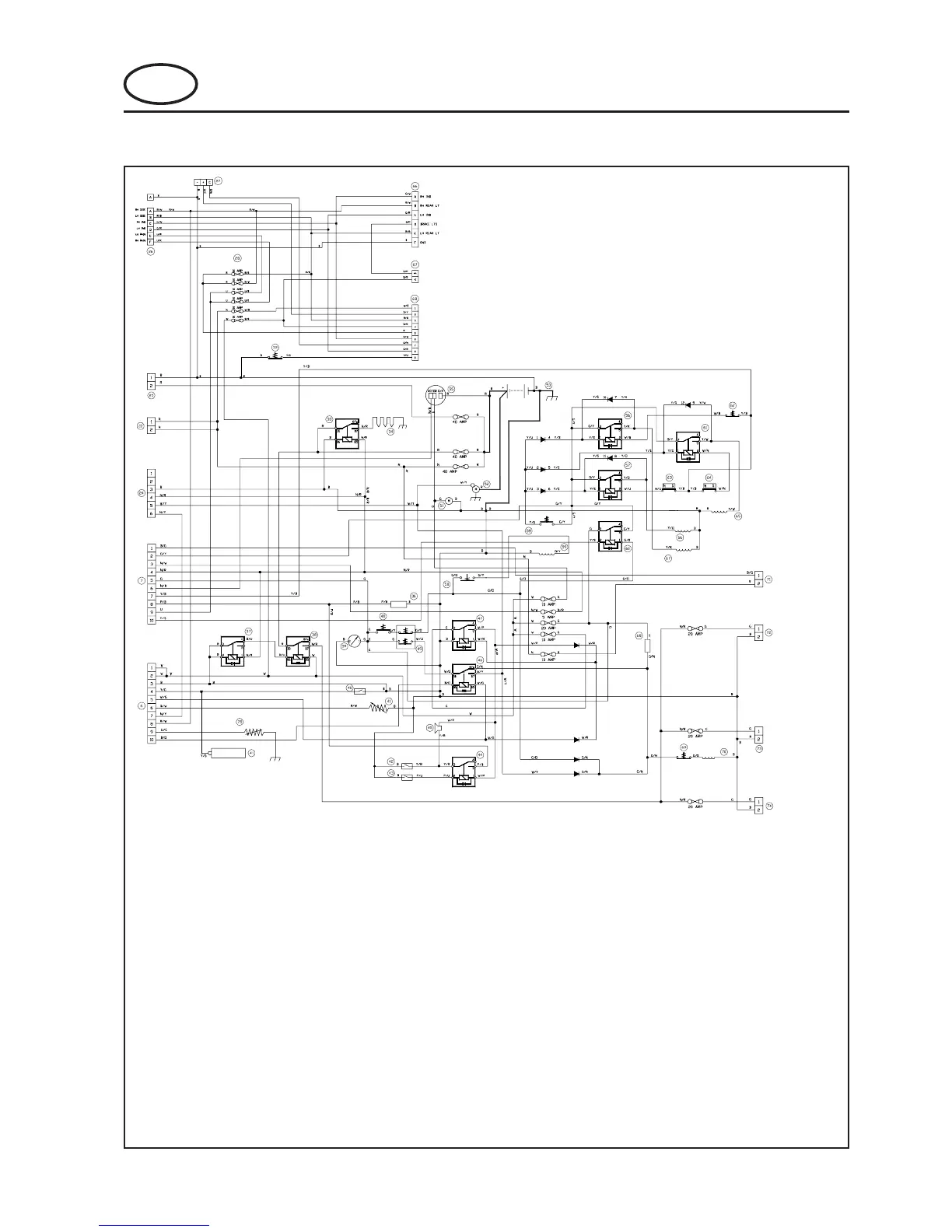

9.3 ELECTRICAL CIRCUIT MAIN
9 SCHEMATICS
KEY TO WIRING DIAGRAM
24 Lamp Timer
25 Cab Supply
26 Front Lamps
27 Flasher Unit
28 Fuse Holder
29 Split to Rear Lights
30 Brake Lights Switch
Connection
31 Split to Console No.4
32 Transport Deck Disable
Switch
33 Glow Plug Relay
34 Glow Plugs
35 Alternator
36 Relay Flasher
37 Accessory Control Relay
38 Accessory Relay
39 Hourmeter
40 Switch Hydraulic Oil
Tempature
41 Fuel Level Sender
42 Water Temperture Sender
43 Engine Oil Pressure Switch
44 Horn Relay
45 Horn
46 Start Reley
47 Alarm Relay
48 Seat Switch
49 Park Switch
50 Diff Lock Switch
51 Fuel Pump
52 Starter
53 Battery
56 Centre Relay
57 LH Deck Relay
58 Deck enable Switch
59 Diff Lock Valve
60 4WD Relay
61 RH Deck Relay
62 Centre Deck Switch
63 LH Deck Kill Switch
64 RH Deck Kill Switch
65 RH Cutter Deck Valve
66 LH Cutter Deck Valve
67 Centre Cutter Deck Valve
68 Seat Delay Module
69 Brake Release Engine Kill
70 Engine Fule Soleniod
71 Split to Beacon
72 Accessory Supply
73 Air Seat Supply
74 Heated Jacket Supply
75 Water Temp Sender
To Next Page
