FRONTLINE 960 Series: LQ
MAINTENANCE AND PARTS MANUAL
9 SCHEMATICS

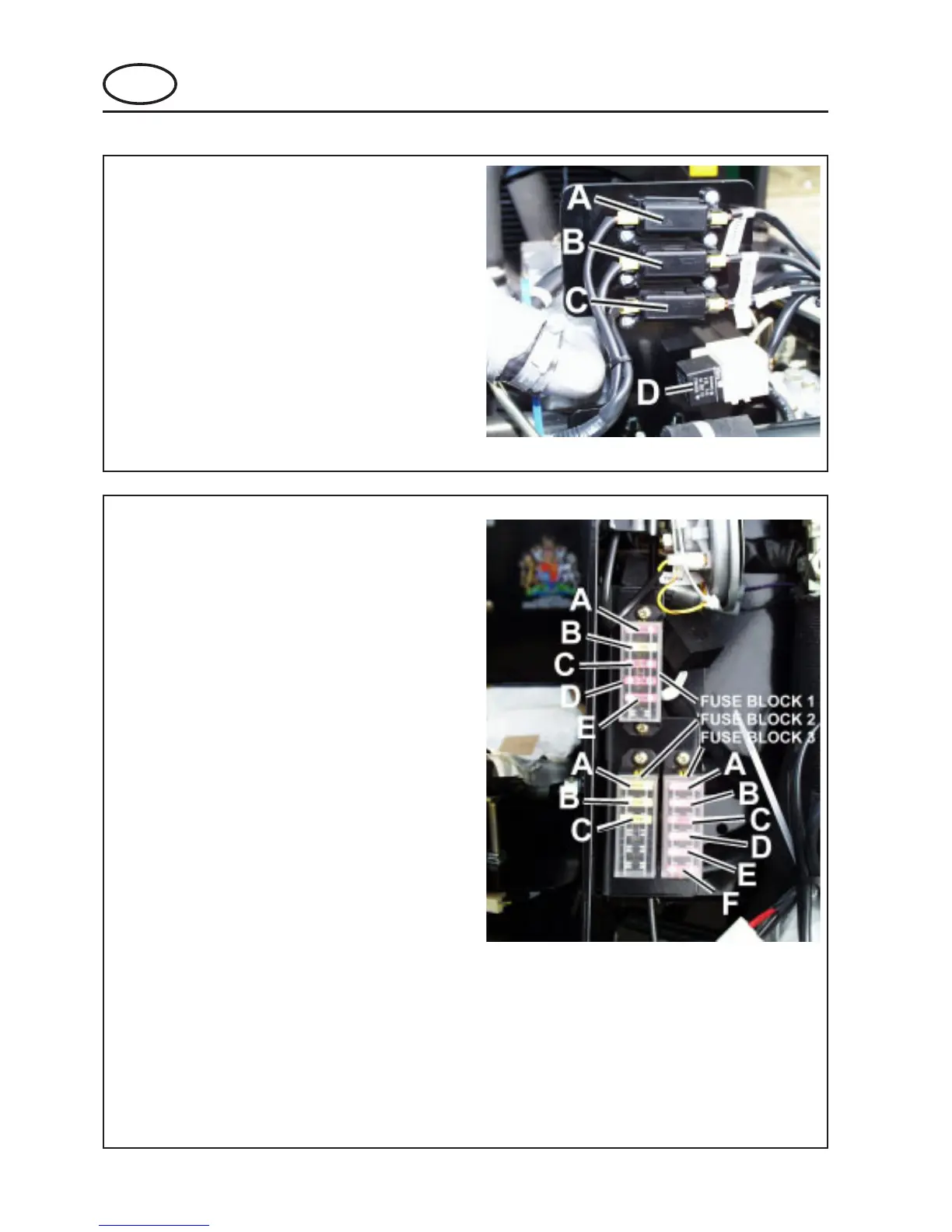

FUSE POSITIONS - MAIN FUSES
MAIN FUSES
The main fuse panel is situated under the front of
the engine bonnet .
Fuse A - 40Amp Link Fuse - System Fuse.
Fuse B - 40Amp Link Fuse - Glow Plug and
Accessory Fuse.
Fuse C - 40 Amp Cab Fuse.
Relay D - Glow Plug Relay.
SECONDARY FUSES
The secondary fuse panel is situated under the front
tower cover.
FUSE BLOCK 1
Fuse A - 10Amp - Fuel pump/Alternator.
Fuse B - 20Amp - Main Ignition.
Fuse C - 10Amp - Horn.
Fuse D - 10Amp - Glow Plug Relay.
Fuse E - 10Amp - Beacon
Fuse F - Spare.
FUSE BLOCK 2
Fuse A - 20Amp - Accessory.
Fuse B - 20Amp - Air Seat.
Fuse C - 20Amp - Heated Jacket.
Fuse D - Spare.
Fuse E - Spare.
Fuse F - Spare.
FUSE BLOCK 3
Fuse A - 10Amp - LH Headlamp.
Fuse B - 10Amp - RH Headlamp.
Fuse C - 10Amp - RH Side Lights.
Fuse D - 10Amp - LH Side Lights.
Fuse E - 10Amp - Hazards.
Fuse F - 10Amp - Indicators /Brake Lights
