GB-17
FRONTLINE 960 Series: LQ
MAINTENANCE AND PARTS MANUAL
GB
ADJUSTMENTS

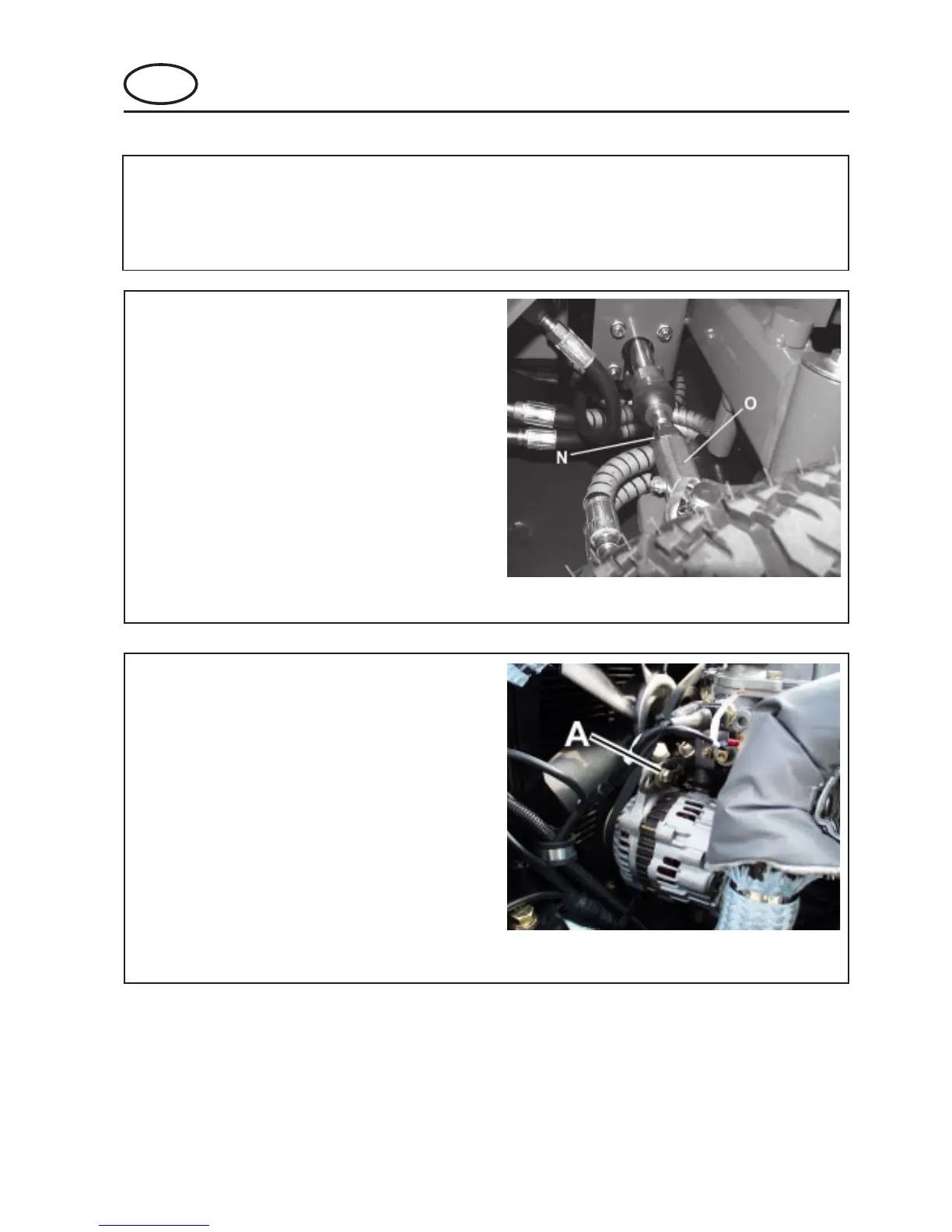

6.2 REAR WHEEL TOE-IN
The rear wheels should have 1/8" (3.2mm) toe-in
from the front of the wheel to the back of the wheel.
Adjust as follows:
1. Loosen locknuts N at balljoints near both rear
wheels.
2. Rotate the tie rod O until wheels are correctly
positioned. Adjust both tie rods an equal
amount.
3. Re-tighten locknuts. The tires should then be 1/
8" closer at the front than the rear.
6.3 ALTERNATOR
The fan belt is adjusted so that it can be deflected
5mm (0.2in) with a force of 5 kg (11 lbs) applied
midway between the crankshaft and alternator
pulley. (Fig.17) To adjust:
1. Loosen alternator bolts A.
2. Move the alternator to tighten or loosen fan
belt.
3. Tighten bolts A.
Check belt tension and condition of belt every 250
hours.
6.1 SPEED LIMITER
The transport and mow speeds are factory set and
should not need altering.
NOTE: Textron Turf Care cannot be held responsible
for loss of performance or machine damage if these
speeds are adjusted outside the speeds shown in the
machine specification.
Fig.16
Fig.17
6 ADJUSTMENTS
