Section 2. Overview of the OneTouch™ Control Panel
This document gives in struc tions for operating the Jandy AquaLink
®
RS OneTouch Indoor Control Panel. The
in struc tions must be fol lowed exactly. Read through the instructions com plete ly before operating the equipment.
2.1 Basic Functions
The AquaLink
®
RS OneTouch™ can turn your pool/spa equipment on and off in any of the following three ways:
1. Activate the equipment manually through the EQUIPMENT ON/OFF menu.
2. Program the equipment to turn on and off at specifi c times. See page 18 for a detailed explanation of how to
program equipment for automatic operation.
3. Use the OneTouch buttons to create scene settings with just "one touch" of a button. For example, you can
program the spa heater to heat to 101 degrees, spa light on, jets on, water features on, and then name the result
Romantic Scene.
NOTE The AquaLink
®
RS OneTouch™ has two default screens; the date/time/temp screen or the OneTouch quick operation
screen. The OneTouch will return to the last screen used after a 30 second delay.
2.2 Using the Buttons

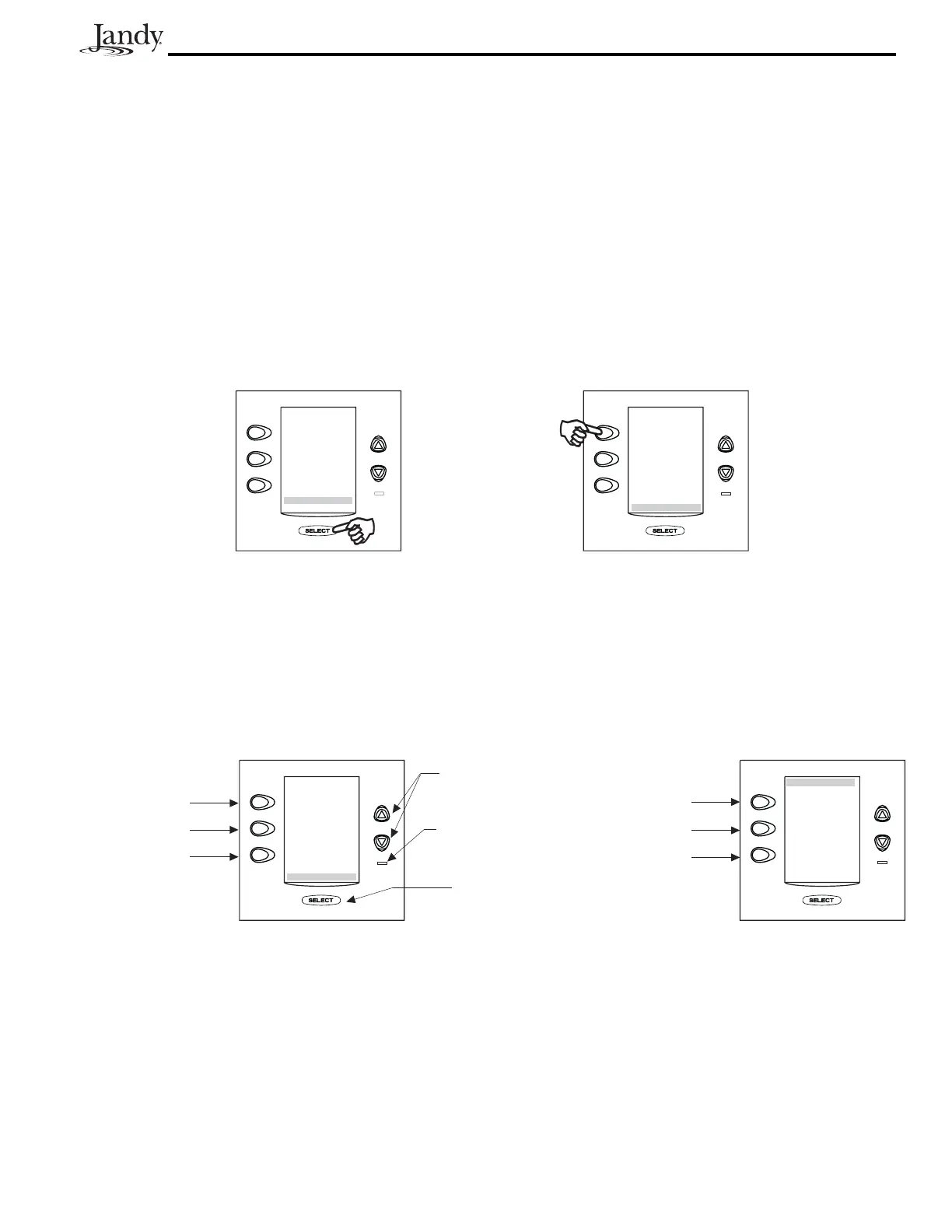

Use the buttons as explained in the diagram below. For an on-screen description of the buttons, select MENU/HELP,
HELP, KEYS. When moving through the screens, you will have about 15 seconds before the controller will return to
the previous screen. If you keep the Up or Down arrow button depressed, it will automatically step through the menu
items in that direction.
2.3 Battery Back-Up
In the event of a power failure, Date and Time will be backed-up by the 9-volt battery located in the Power Center
enclosure. All other programs and menu setups do not require battery to store information. To determine if battery is
low, highlight MENU/HELP press SELECT, highlight HELP press SELECT, highlight DIAGNOSTICS and press
SELECT.
The battery is located behind the small door on the right side of the Power Center panel and should be checked, if
necessary replaced, once a year.
Default screen 1 Default screen 2
SPA MODE ON
CLEAN MODE OFF
ONETOUCH 3 OFF
SYSTEM
JANDY AquaLink RS
FILTER PUMP OFF
AIR 79°
06/02/03MON
6:00 PM
EQUIPMENT ON/OFF
MENU / HELP
ONETOUCH ON/OFF
SPA MODE ON
CLEAN MODE OFF
ONETOUCH3 OFF
SYSTEM
Up/Down Arrow
(Scroll) Keys
Heater LED
Spa Mode
Clean Mode
OneTouch3
Selects
Highlight ed Item
ALL OFF
FILTER PUMP ON
SPA
POOL HEAT
SPA HEAT
SOLAR HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
OFF
ON
OFF
OFF
ON
OFF
ON
OFF
OFF
OFF
Page-down
Back
Page-up
2.4 Power Interruption
In the event there is a power interruption, and the AquaLink RS system is in Service or Time Out mode, the system
will default to Auto. In previous firmware versions, the system would default to last mode of operation.
