Jandy PureLink User Manual

Page 10

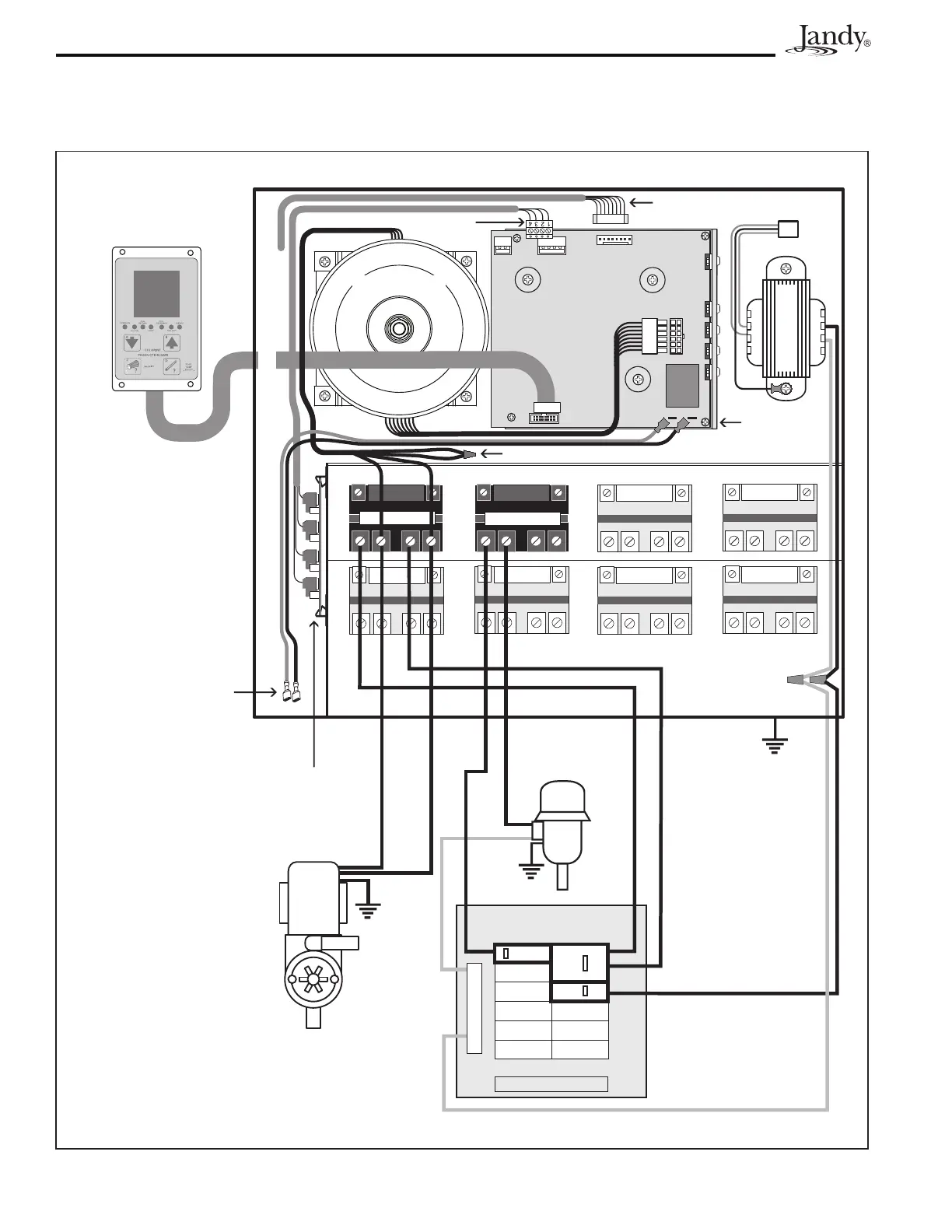

Figure 2a. 240 VAC Wiring Diagram for the AquaLink RS PureLink
TM
System
PRIMARY
SECONDARY
J10 J8
CHLORINE GENERATOR
POWER INTERFACE
J13
J12
J11
GR
Y
BK
R
CHLORINE GENERATOR
USER INTERFACE
Filter Pump Relay
Aux. 3 Relay
Load 2
Line 1
Wire Nut to
120 VAC Power
Breakers
Ground
Neutral
Blower
(120 VAC)
Filter Pump
(240 VAC)
To Electrolytic
Cell
Multiplex Board
(J1 through J4)
J1J2J3J4
Load 1
Line 2
Low voltage raceway (do not run high voltage in this compartment)
(Middle primary wires not used)
Factory wired to Multiplex Board
To AquaLink® RS
24VAC
120VAC
AQUALINK RS
POWER TRANSFORMER
BLK/YEL
BLACK
Flow, Salinity, Temp Sensors
HEAT SINK
L - BRACKET
CHLORINE GENERATOR
TRANSFORMER
