Jandy PureLink User Manual

Page 11

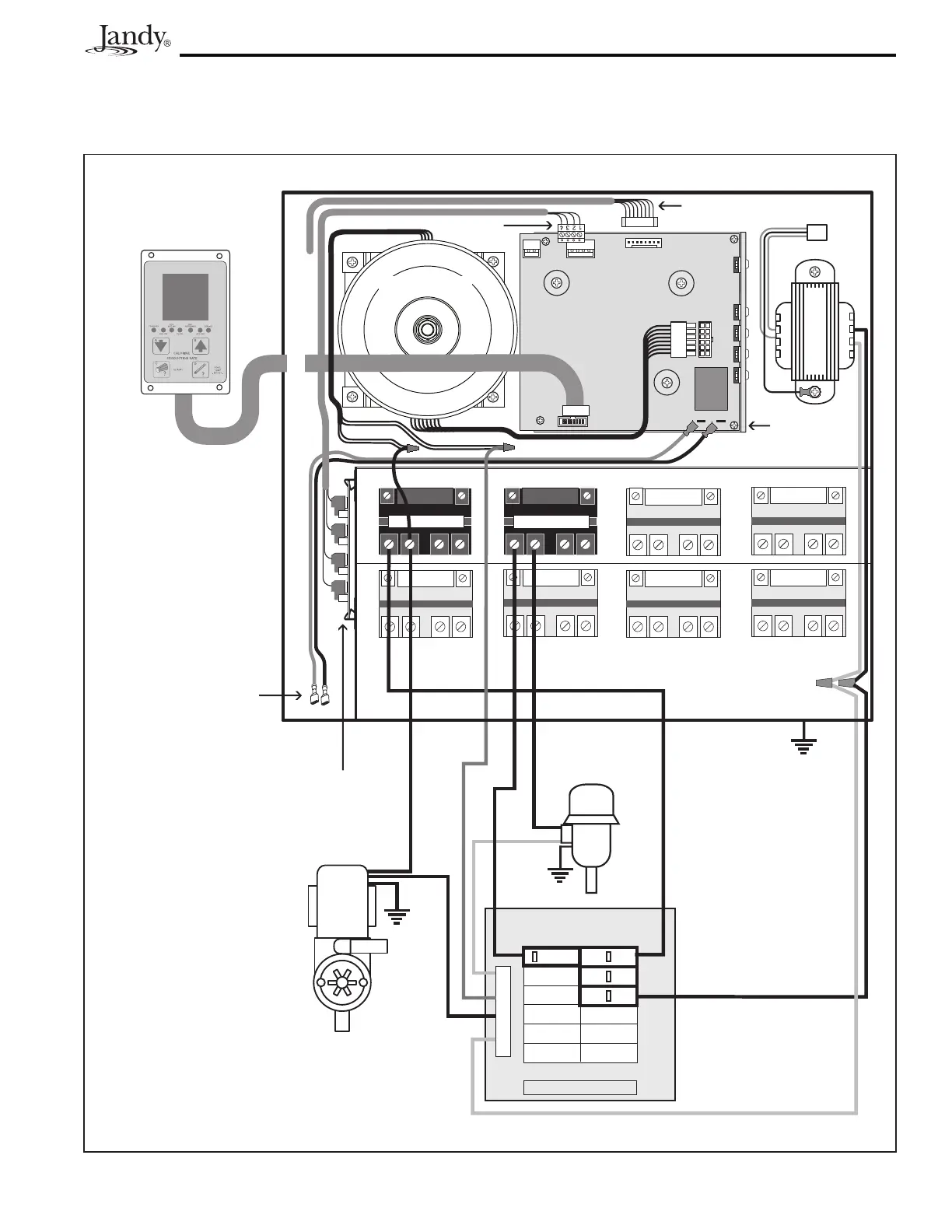

Figure 2b. 120 VAC Wiring Diagram for the AquaLink RS PureLink
TM
System
Filter Pump Relay
Aux. 3 Relay
Line 1
Wire Nut to
120 VAC Power
Breakers
Ground
Neutral
Blower
(120 VAC)
Filter Pump
(120 VAC)
To Electrolytic
Cell
Multiplex Board
(J1 through J4)
J1J2J3J4
Load 1
Factory wired to Multiplex Board
To AquaLink® RS
24VAC
120VAC
AQUALINK RS
POWER TRANSFORMER
J10 J8
CHLORINE GENERATOR
POWER INTERFACE
J13
J12
J11
Flow, Salinity, Temp Sensors
GR
Y
BK
R
HEAT SINK
L - BRACKET
BLK/WHT
BLK/YEL
BLK/RED
BLK
CHLORINE GENERATOR
USER INTERFACE
Low voltage raceway (do not run high voltage in this compartment)
PRIMARY
SECONDARY
CHLORINE GENERATOR
TRANSFORMER
