Page 13

WARNING

When using electrical products, basic precautions should always be followed, including the following:

• RISKOFELECTRICSHOCKWHICHCANRESULTINSERIOUSINJURYORDEATH.Before

attempting installation or service, ensure that all power to the device is disconnected/turned off at

the circuit breaker.

• Groundingisrequired.Theunitshouldbeinstalledbyaqualiedservicerepresentativeand

should be properly grounded. (See Section 3.4, Earth Grounding).

• Installtopermitaccessforservicing.

• ReadSection 1, Important Safety Instructions. Before attempting any electrical wiring, be

sure to read and follow Safety Instructions. Wiring should only be attempted by a qualied

professional.

Sensor

Flow

( )

UP UP

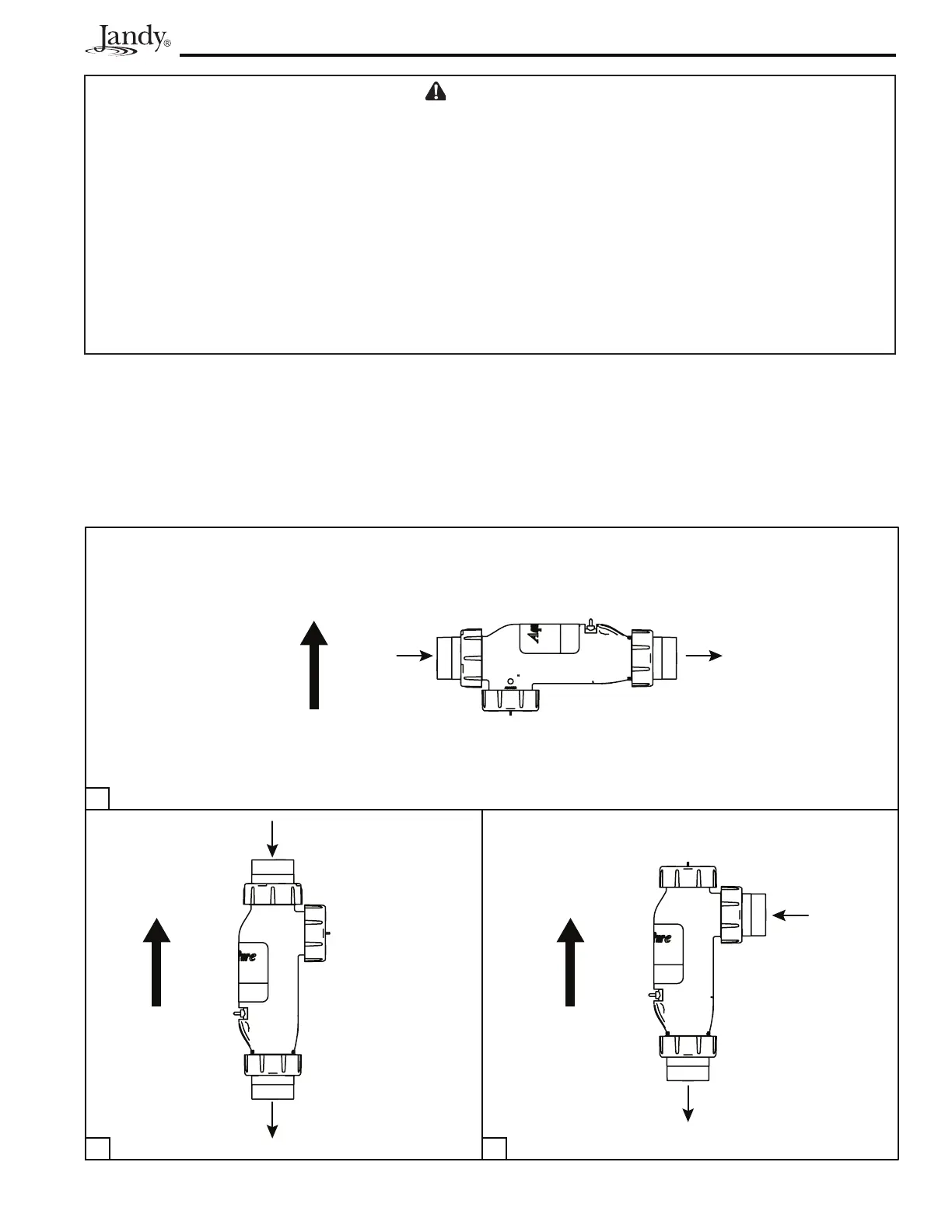

Figure 3. Chlorine Generator Cell and Sensor Orientation with Flow Direction

3.2 Plumbing Congurations

3.2.1 Recommended Electrolytic Cell and Sensor Orientation

Shown below are three (3) different cell and sensor orientations. The third port on the cell is designed for

installationofthesensorandforquickviewingofthecellplates.Theminimumowrateis30GPM

(114 LPM).
