Jandy VSSHP220DV2A - Page 13

Page 13
ENGLISH
Jandy
®
Variable-Speed Pumps
|
Installation & Operation Manual
Remove screw and
RS485 quick
connect port cover
Feed RS485 connec-
tor and cable through
the RS485 quick
connect port and
strain relief channel.
Connect the RS485
and secure the
RS485 quick connect
port cover back into
place with the screw.
2
3
Wire the cable to the RS485 connector
in order of Red(1), Black(2), Yellow (3),
Green (4)
1
4
3-YELLOW
2-BLACK
4-GREEN
1-RED
RS485 Cable (22 AWG)

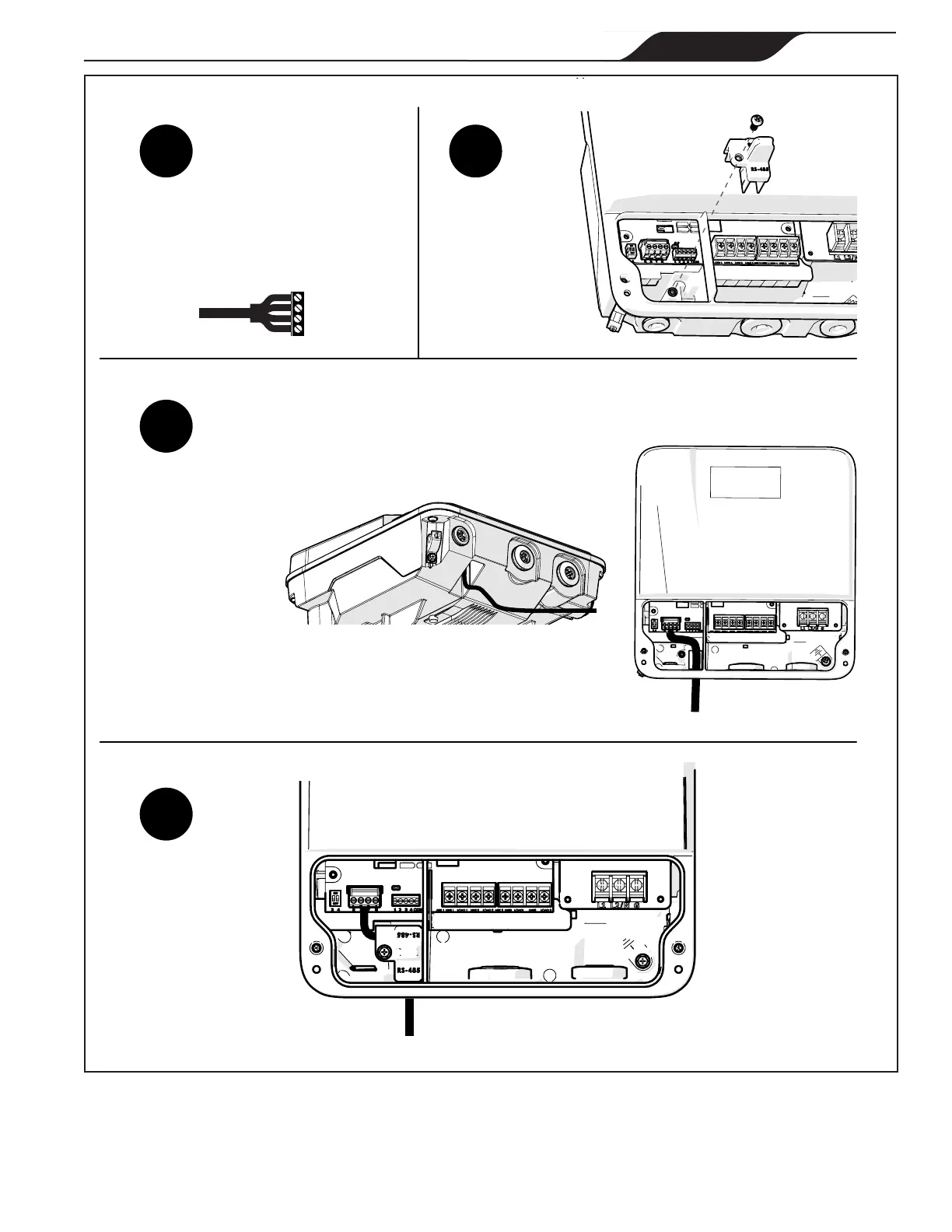

Figure 8. RS-485 Quick Connect Port with Wiring
