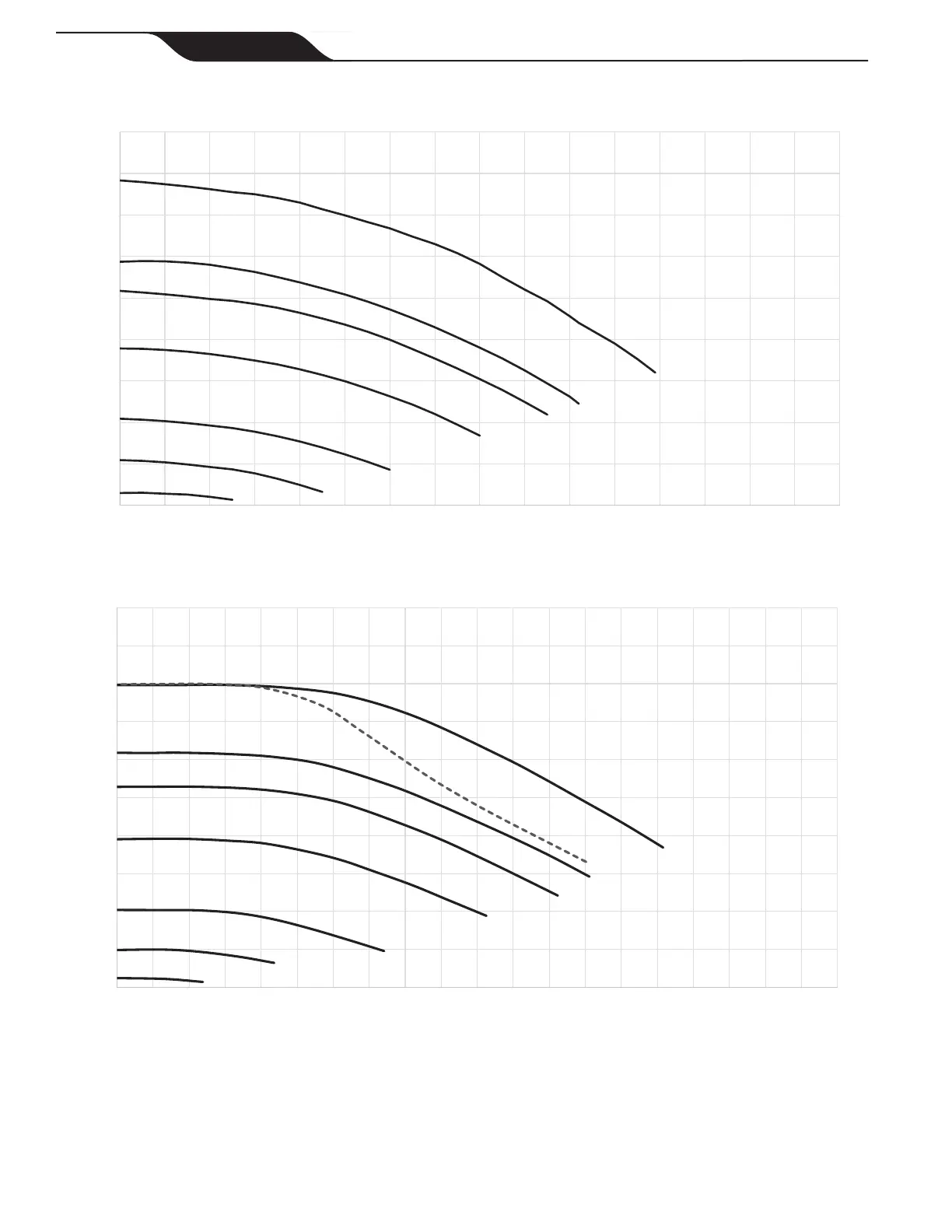

VSFHP185DV2A Performance Curves
600 RPM
1200 RPM
1730 RPM
2400 RPM
2750 RPM
3000 RPM
3450 RPM
0
10
20
30
40
50
60
70
80
90
100
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200
Total Dynamic Head (Feet of Water)
Flow Rate, Gallons Per Minute (GPM)
VSSHP220DV2A Performance Curves
3450 RPM
2400 RPM
2800 RPM
3000 RPM
1730 RPM
1200 RPM
600 RPM
115VAC
