UMG 96RM-P/-CBM
Dimension diagrams
All dimensions in mm.

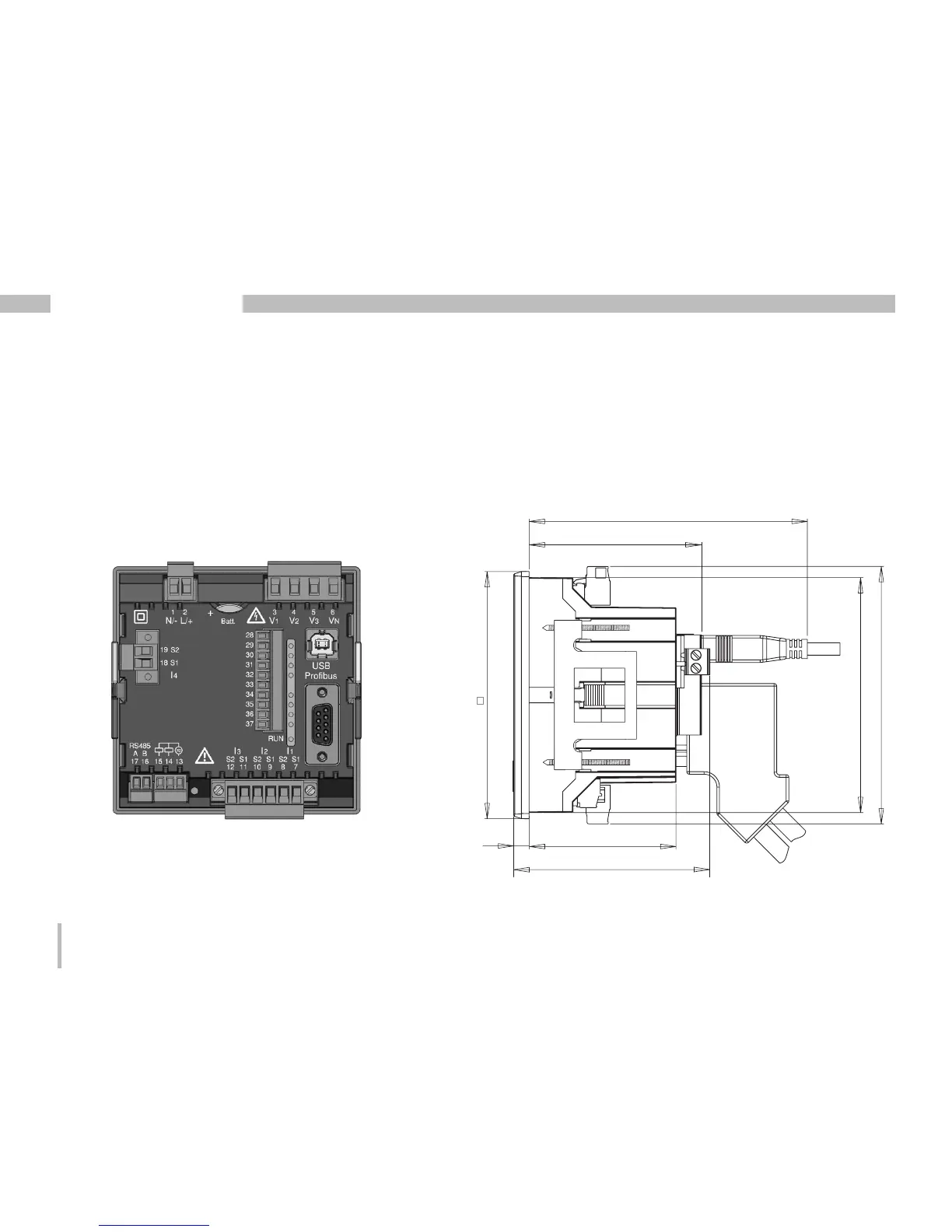

Rear view of UMG 96RM-P Side view of UMG 96RM-P
with USB and Profibus connectors inserted
57
6
96
104
ca. 108
91,5
65
78
(depth without connector)
