UMG 96RM-P/-CBM
Impulse output
The digital outputs can be used for the output of pulses
for the computation of power consumption. For this pur-
pose, a pulse of defined length is applied on the output
after reaching a certain, adjustable amount of power.
You need to make various adjustments in the software
GridVis (configuration menu) to use a digital output as
a pulse one.
• Digital output,
• Selection of source,
• Selection of measured value,
• Pulse length,
• Pulse value.

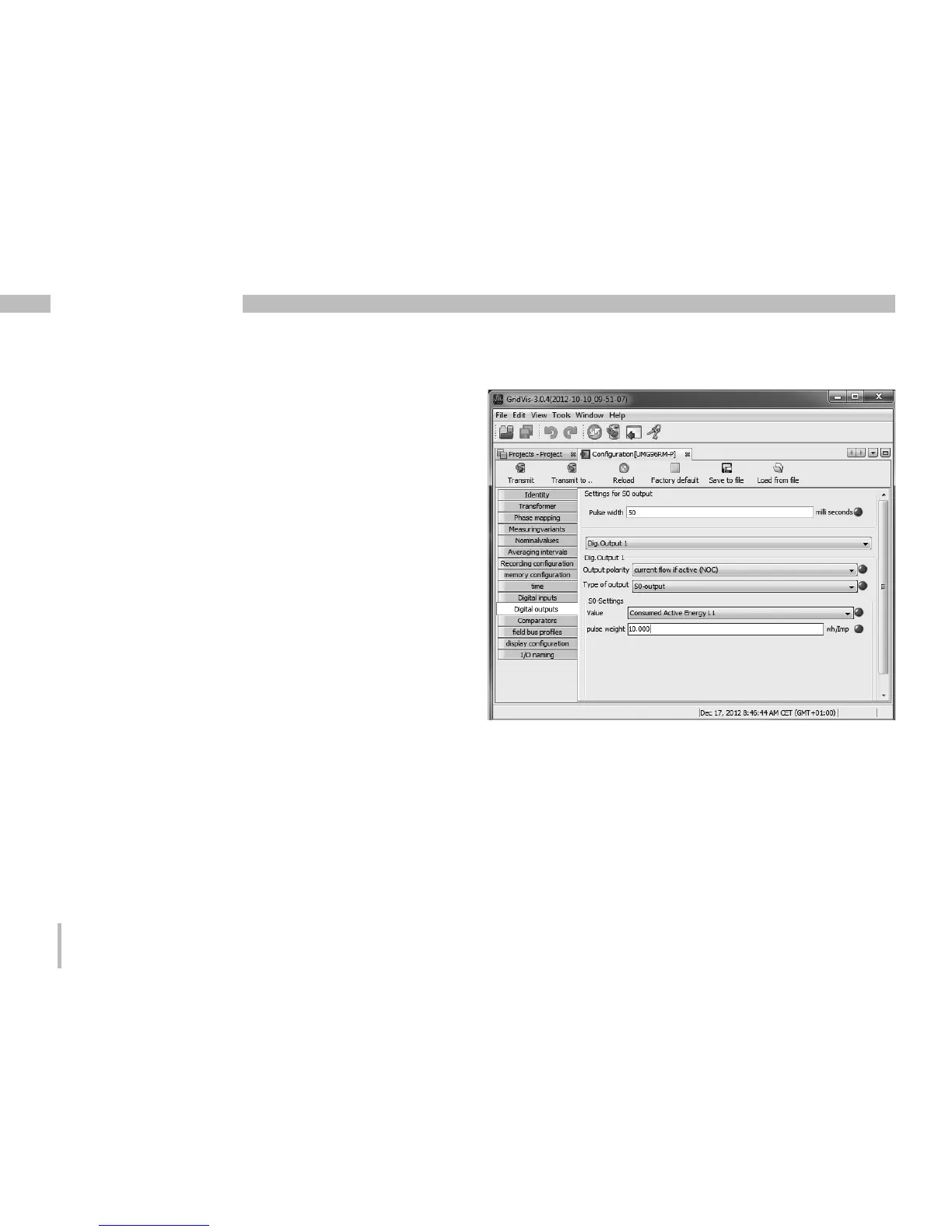

Fig.: Software GridVis, configuration menu
