Digital outputs
The UMG 96RM-P and UMG 96RM-CBM have 6 digital
outputs, whereby these are split into two groups of 2 and
4 outputs (see illustration on the right).
Digital outputs, Group 1
• The status indicator appears on the display at K1 or
K2
• The status indicator on the display is not dependent
on an inversion being activated (NC / NO)
Digital
output 1
e.g.
Comparator group
K1/K2 display
status indicator
InverterSource
Digital outputs, Group 2
• The status of the inputs and outputs in Group 2 is in-
dicated by the associated LED (cf. chapter LED status
bar).
~
~
Group 2
Group 1

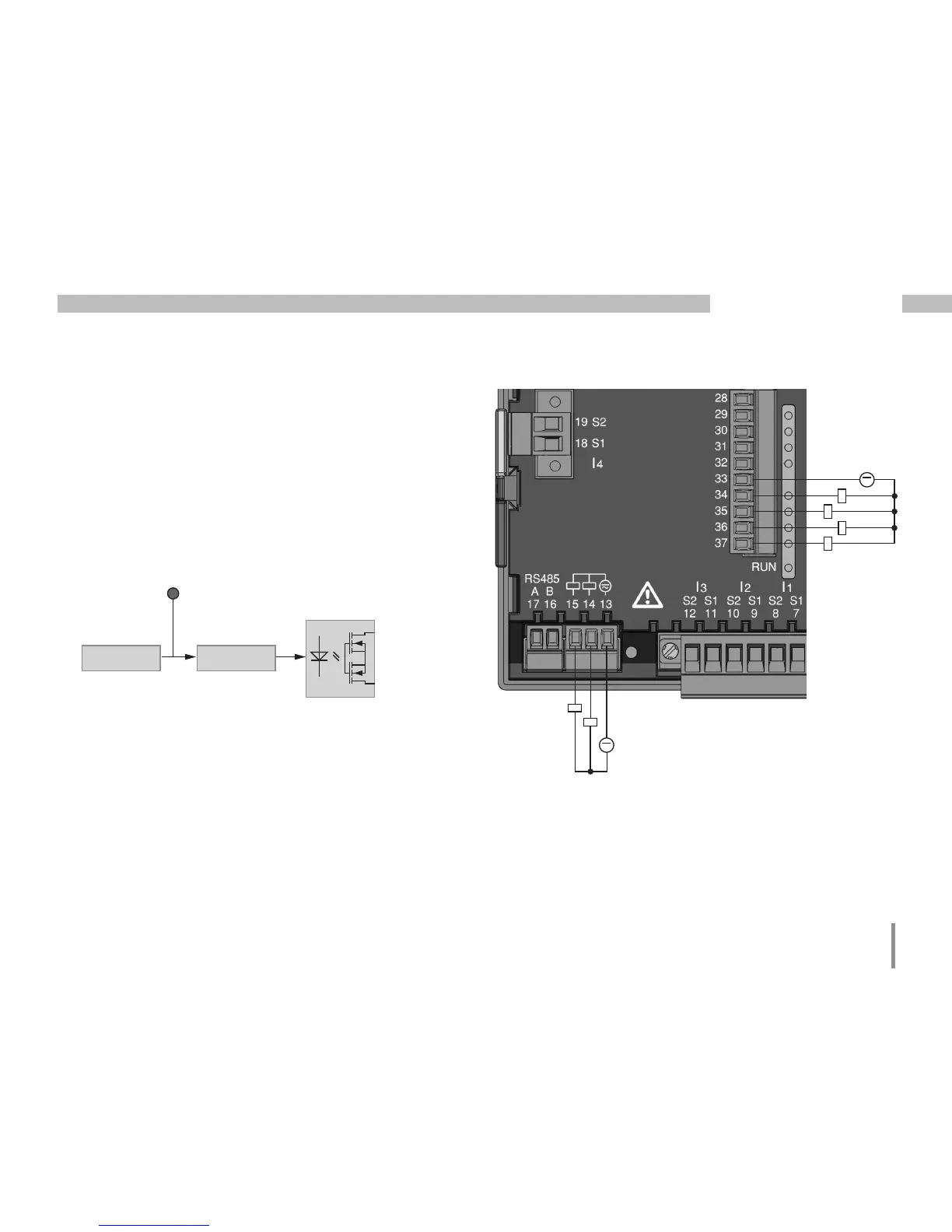

Fig. Connection
digital/pulse
outputs
