janitza UMG 96RM-P - Digital Outputs

84
UMG 96RM-P/-CBM
Digital outputs
The UMG 96RM-P and UMG 96RM-CBM have 6 digital
outputs, whereby these are split into two groups of 2 and
4 outputs (see illustration on the right). .
The User can allocate different functions to the digital
outputs
The functions can be programmed by using the configu-
ration menu of the GridVis software.
Digital-Ausgänge
33 34 35 3613 14 15
24V
DC
K1 K2
=
-
+
K3 K4
K5
=
-
+
Gruppe 1 Gruppe 2
37
K6

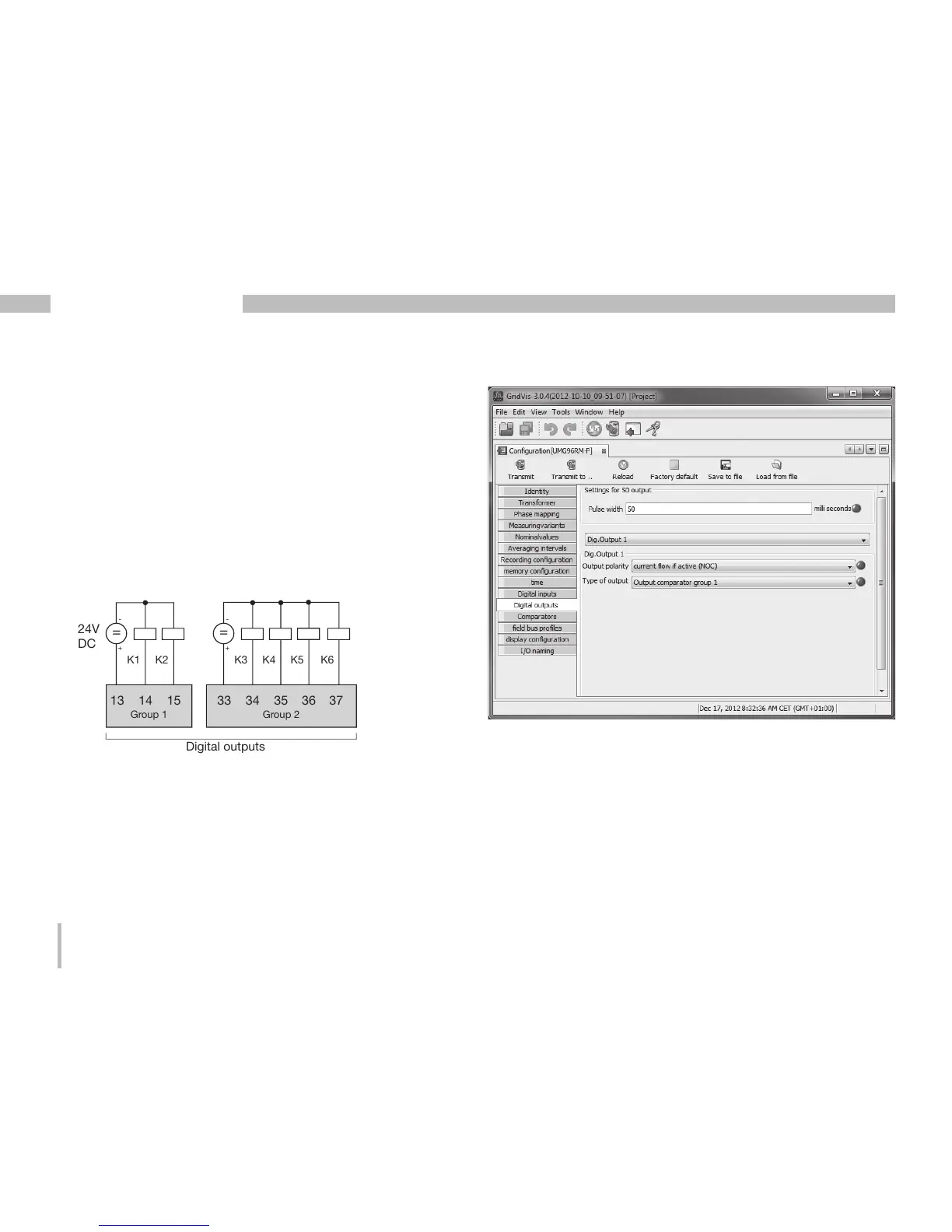

Fig.: Digital outputs of group 1 and group 2
Fig.: Software GridVis, configuration menu
Digital outputs
Group 1
Group 2
