janitza UMG 96RM-P - Programming Voltage Transformers

53
UMG 96RM-P/-CBM

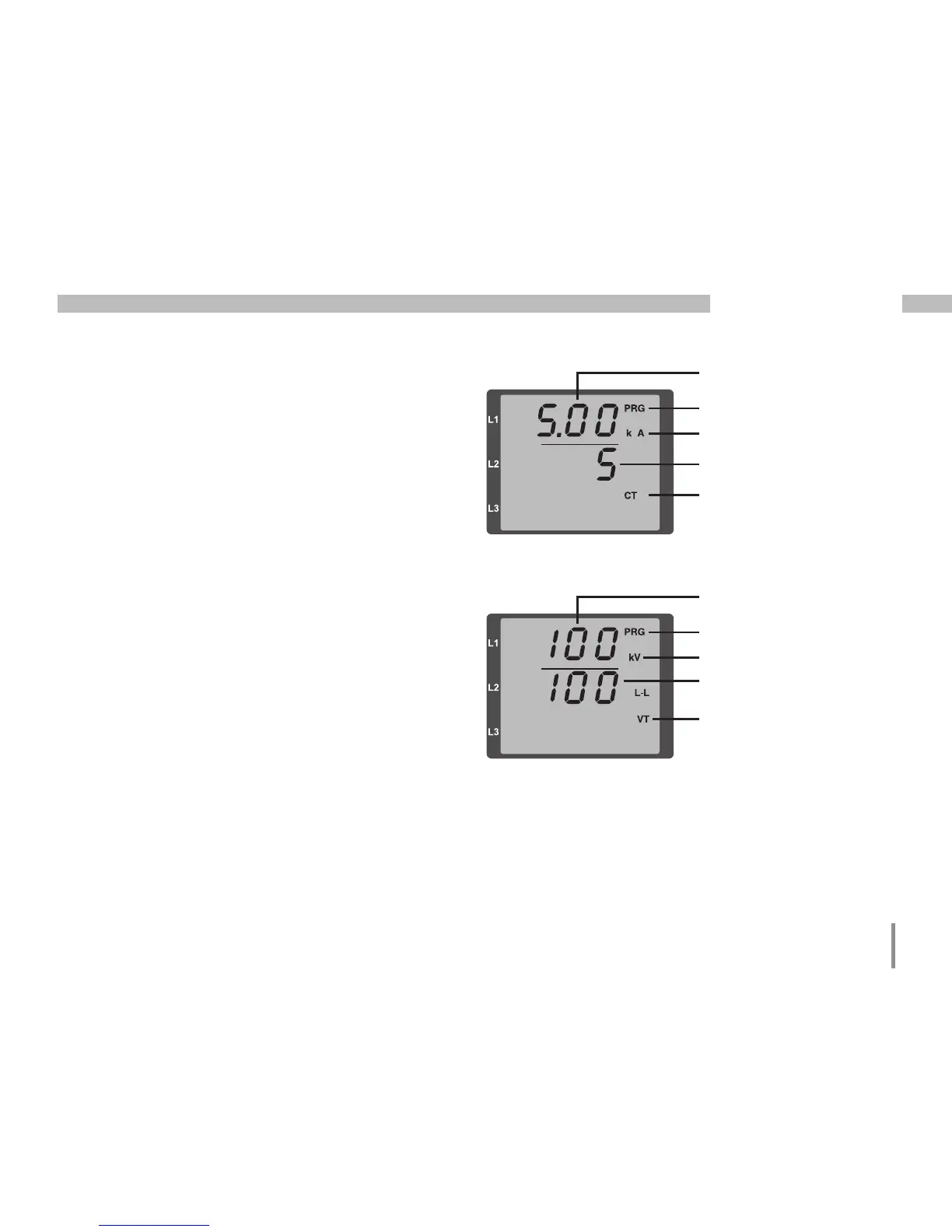

Current transformer symbol
Units display
Current transformer, primary
Programming mode
Current transformer, secondary
Units display
Voltage transformer, primary
Programming mode
Voltage transformer,
secondary
Voltage transformer,
symbol
Programming voltage transformers
• Switch to the programming mode as described. The
symbols for the programming mode (PRG) and for the
current transformer (CT) appear.
• Use button 2 to switch to the voltage transformer
setting.
• Confirm the selection with button 1.
• The first digit of the input area for the primary current
starts flashing. The ratio of primary to secondary
voltage of the voltage transformer can be set in the
same way as the assignment of the current transformer
ratio of primary to secondary current.
