UMG 96RM-P/-CBM
m
Caution!
The UMG 96RM-P/-CBM is not suitable for
measuring DC voltages.
c
Earthing of current transformers!
If a connection is provided for the earthing
of secondary windings then this must
be connected to the earth.
C
It is not necessary to configure a connec-
tion schematic for the I4 measurement
input.
L2 L3
N
L1

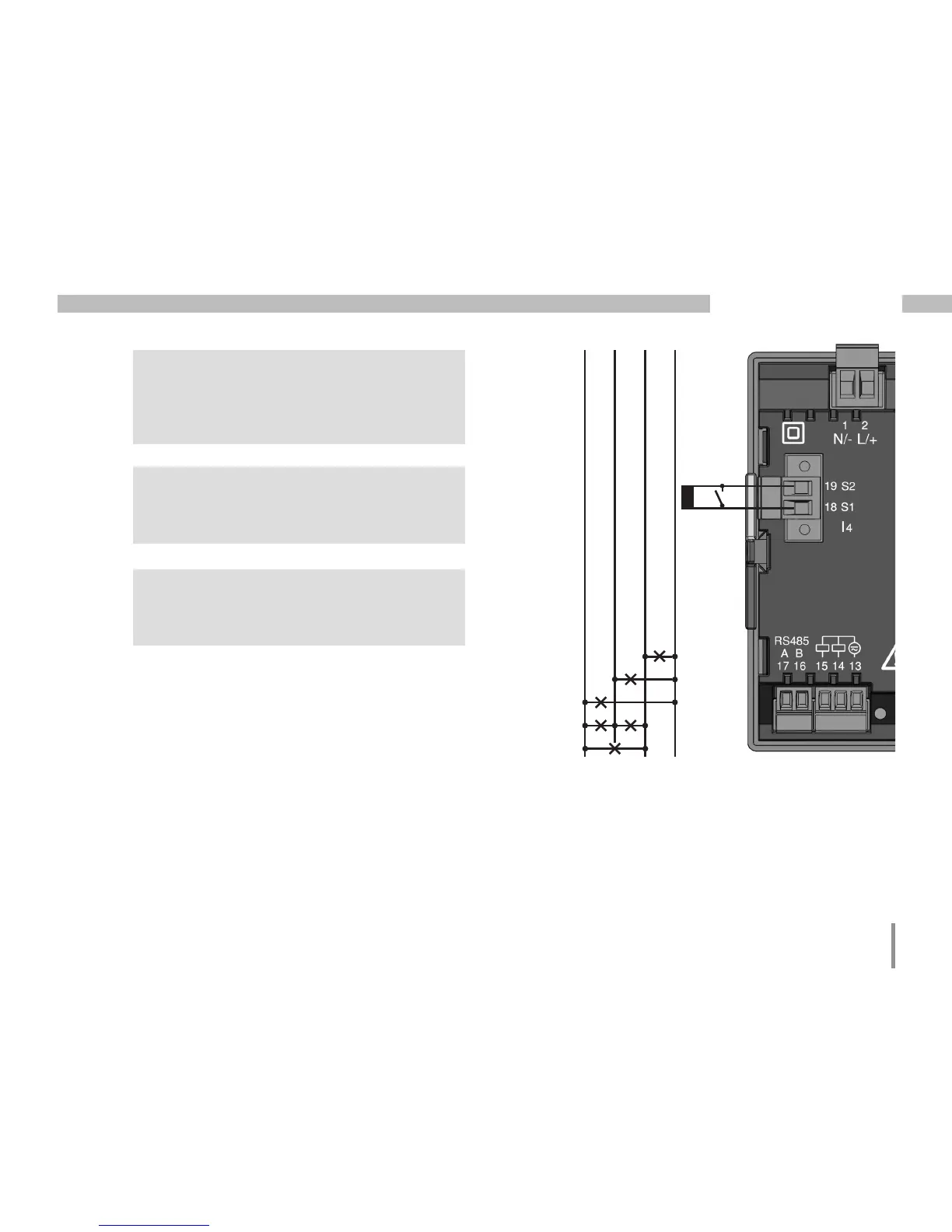

Fig. Current measurement (I4) via current
transformer (connection example)
Load
