UMG 96RM-P/-CBM
Ammeter
If you want to measure the current not only with
the UMG 96RM-P/-CBM but also with the ammeter,
the ammeter must be connected in series with the
UMG 96RM-P/-CBM.

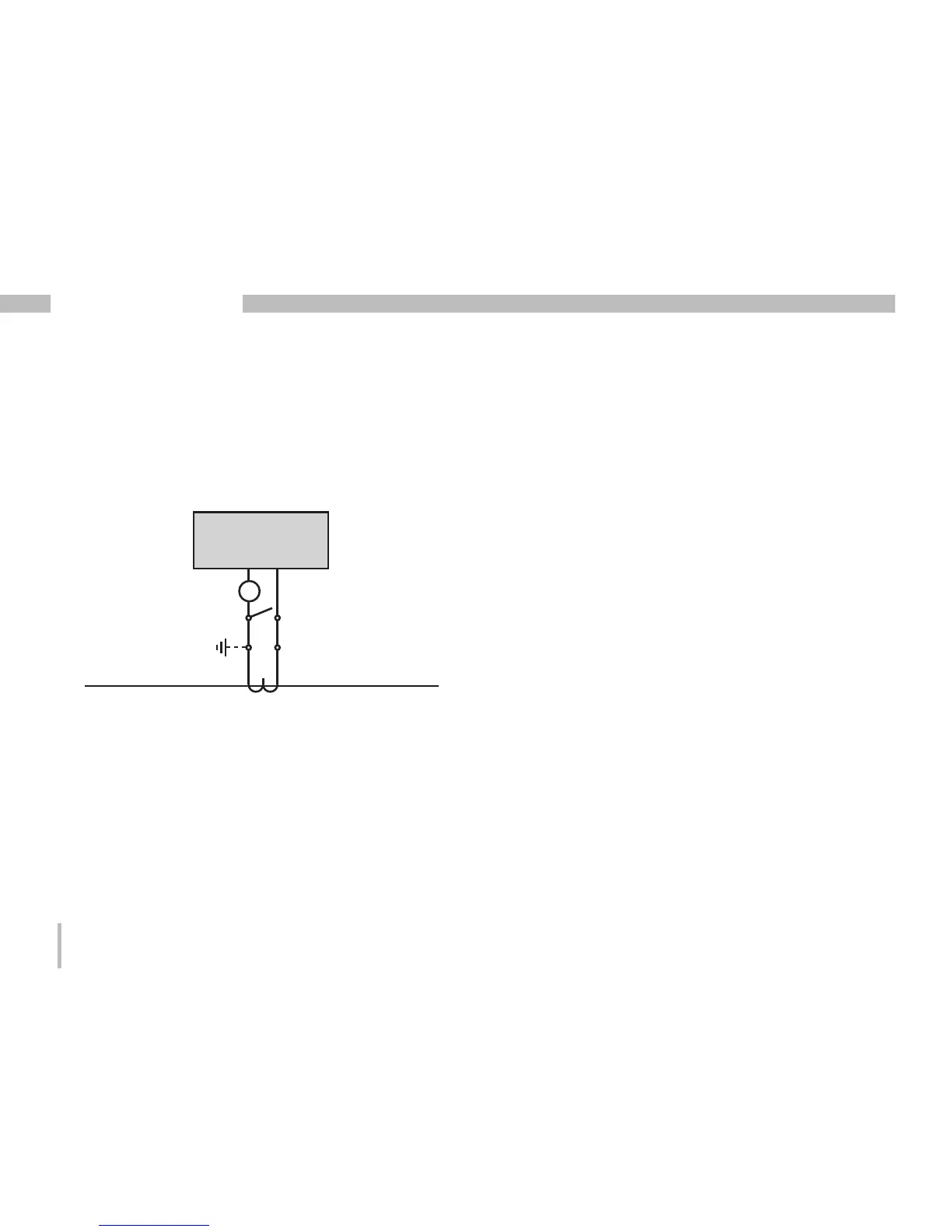

Fig. Current measurement with an additional
ammeter (example).
UMG
S2
I
S
1
Einspeisung
Supply
Verbraucher
Consumer
A
(k)S
1 S2(l)
P
2(L)(K)P1
