SEWING MACHINE MODEL DC5100
SERVICE ACCESS (1)
FACE COVER
TO REMOVE:
1.OPEN THE FACE COVER. REMOVE THE 2 SCREWS (A) AND REMOVE THE FACE
COVER (B).
TO ATTACH:
2. FOLLOW THE PROCEDURE ABOVE IN REVERSE.
TOP COVER
TO REMOVE:
1. REMOVE THE 3 SCREWS (C) AND REMOVE THE TOP COVER (D).
TO ATTACH:
2. FOLLOW THE PROCEDURE ABOVE IN REVERSE.

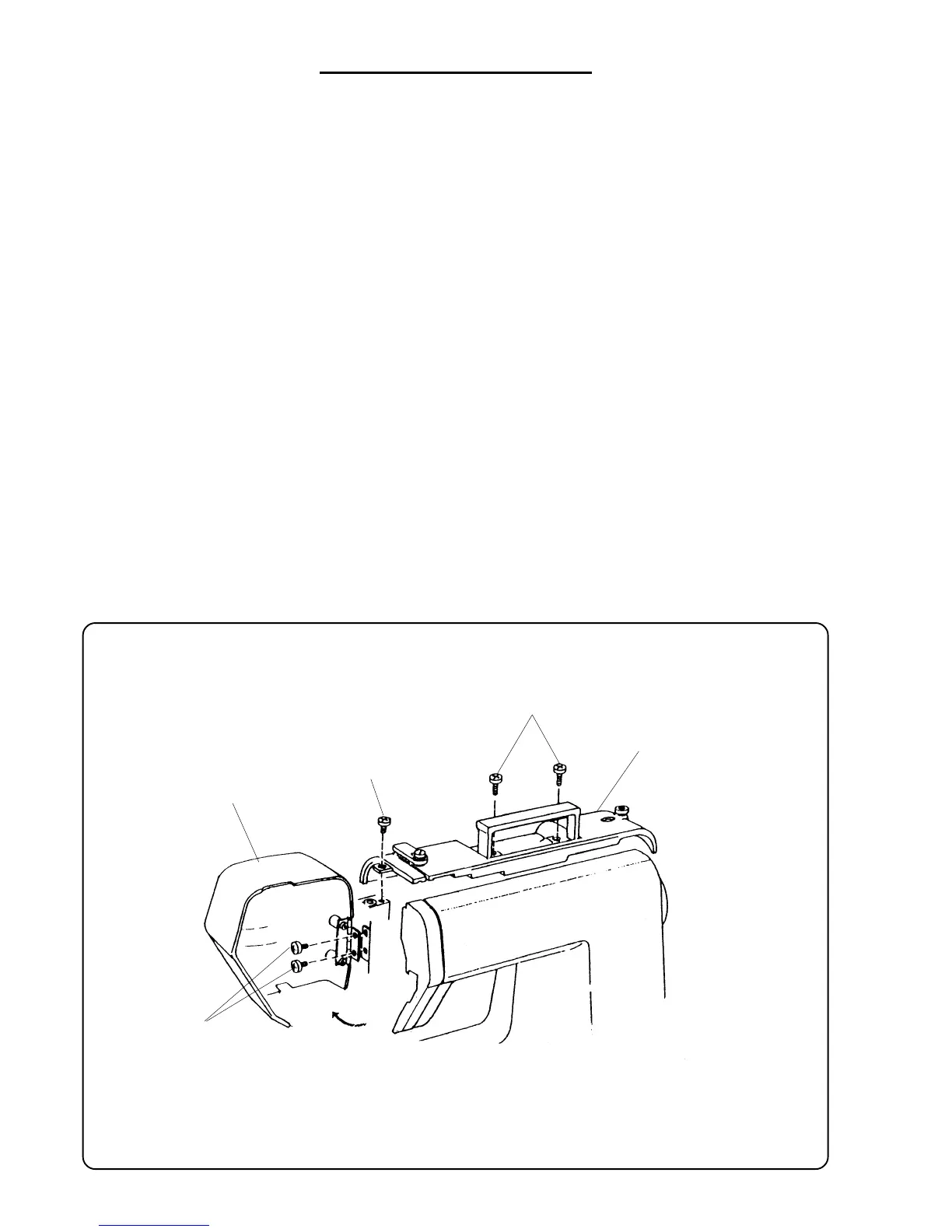

FACE COVER (B)
SCREW (A)
SCREW (C)
SCREWS (C)
TOP COVER (D)
