SEWING MACHINE MODEL DC5100
FREE ARM COVER
TO REMOVE:

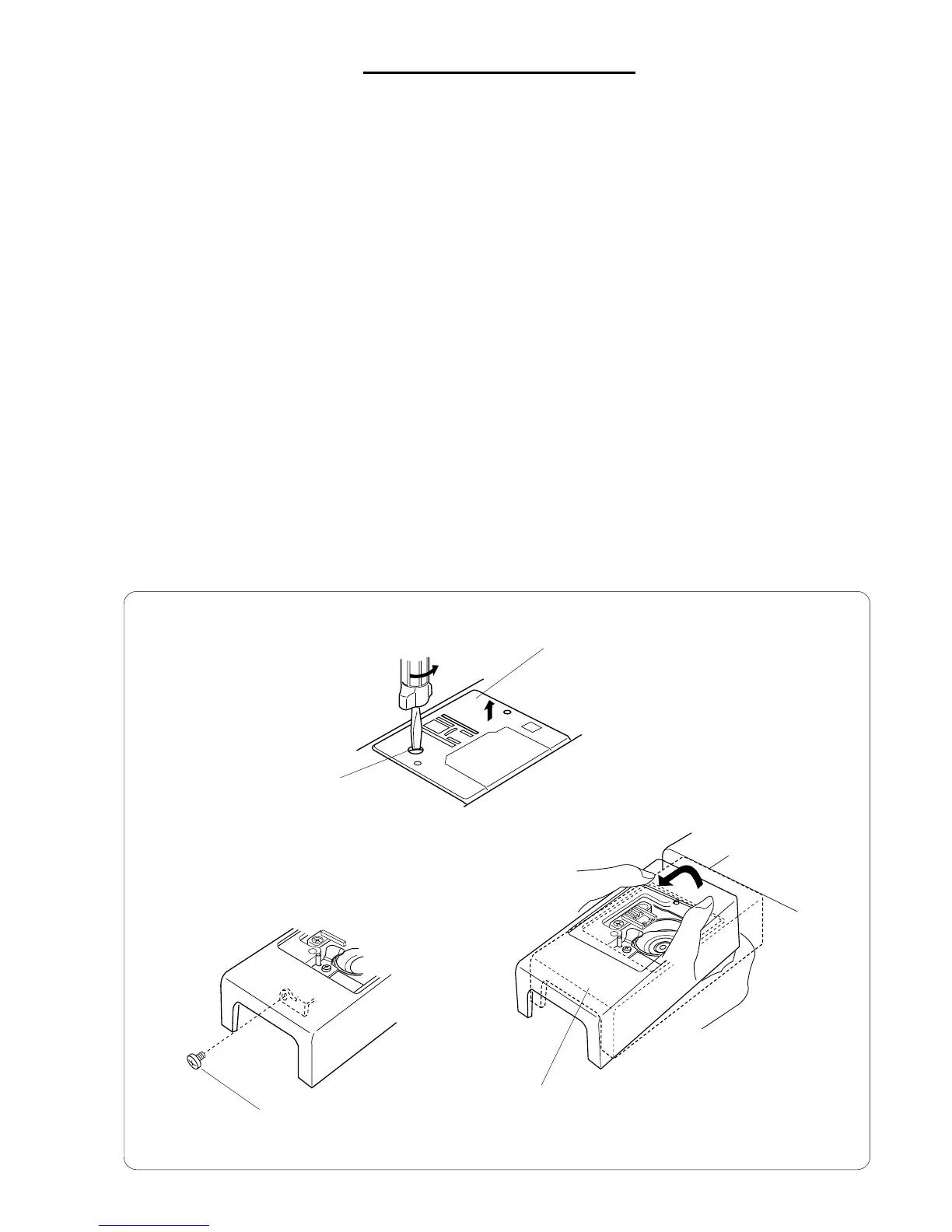

1. REMOVE SETSCREW (A) AND THE NEEDLE PLATE.
2. REMOVE THE BED COVER (SEE PAGE 14).
3. REMOVE SETSCREW (B) AND THE FREE-ARM COVER.
TO ATTACH:
4. FOLLOW THE PROCEDURE ABOVE IN REVERSE.
NEEDLE PLATE
SETSCREW (A)
SETSCREW (B)
FREE ARM COVER
SERVICE ACCESS (6)
