Janome DC5100 - Replacing the Fuses

36

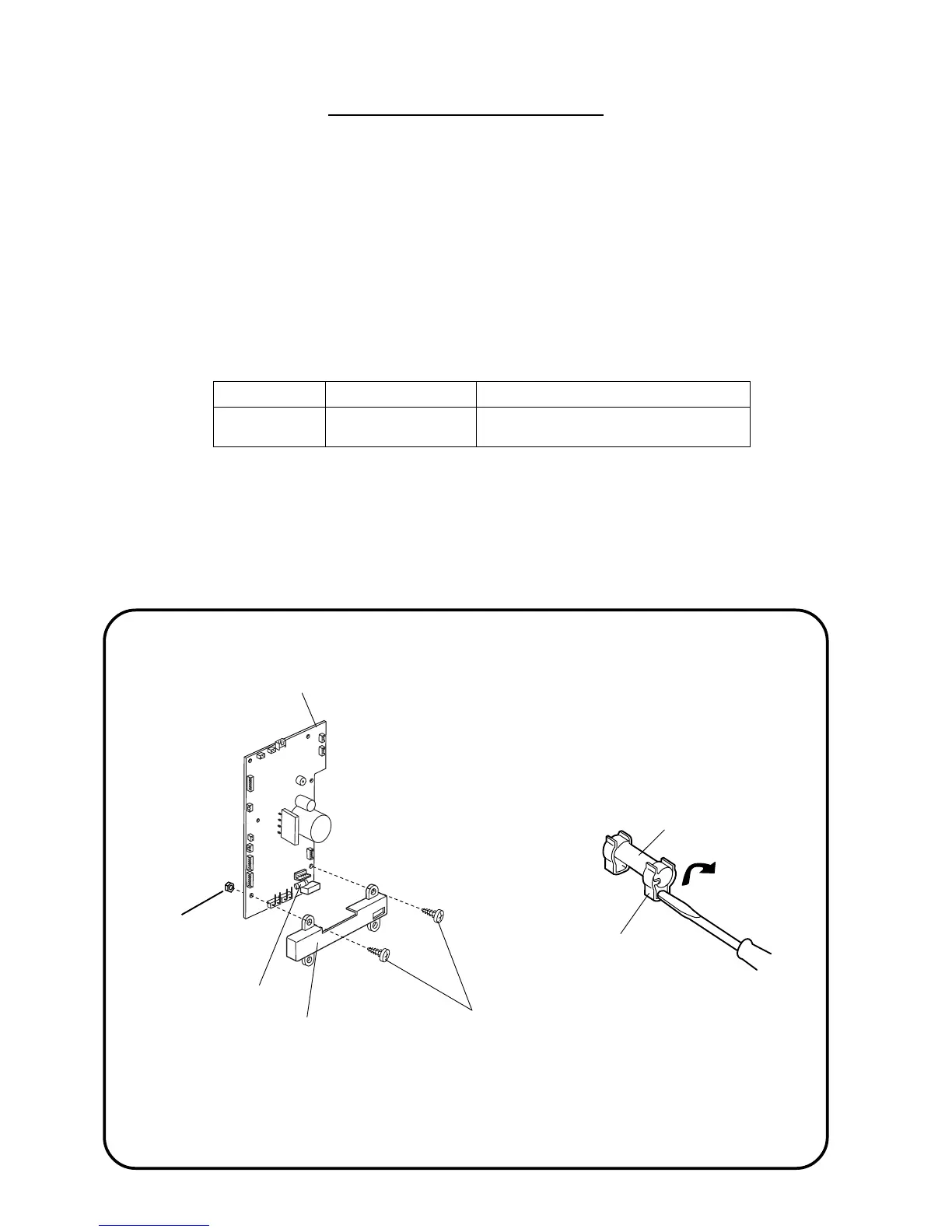

SEWING MACHINE MODEL DC5100
REPLACING THE FUSES
TO REMOVE:
1. REMOVE THE FRONT COVERS (SEE PAGE 15).
2. REMOVE THE PRINTED CIRCUIT BOARD "A". REMOVE THE FOUR SETSCREWS
AND REMOVE THE COVER FROM THE PRINTED CIRCUIT BOARD "A".
3. REMOVE THE FUSE (PRY UP THE FUSE WITH A SCREWDRIVER).
NOTE:
1. REPLACE THE PRINTED CIRCUIT BOARD "A" IF YOU NOTICE ANY BROWNING,
DISCOLORATION, OR OTHER ABNORMALITIES.
2. ONLY INSTALL FUSES WITH THE CORRECT RATING.
IF THE FUSE IS LOOSE, BEND THE FUSE CLIPS INWARD TO SECURE THE FUSE.
SETSCREWS (4)
PRINTED CIRCUIT BOARD "A"
COVER OF PRINTED
CIRCUIT BOARD "A"
FUSE HOLDER
FUSE
F1
AC 250V 2.5A
FUSE NO.
F1
PART NO.
000-144-605
TYPE/SPECIFICATION
TSD-2.5A-250V
5.2Ø X 20 MM 2.5A TIME-LAG FUSE
NUT
REPLACING THE FUSES
