SEWING MACHINE MODEL DC5100
MECHANICAL ADJUSTMENT (6)

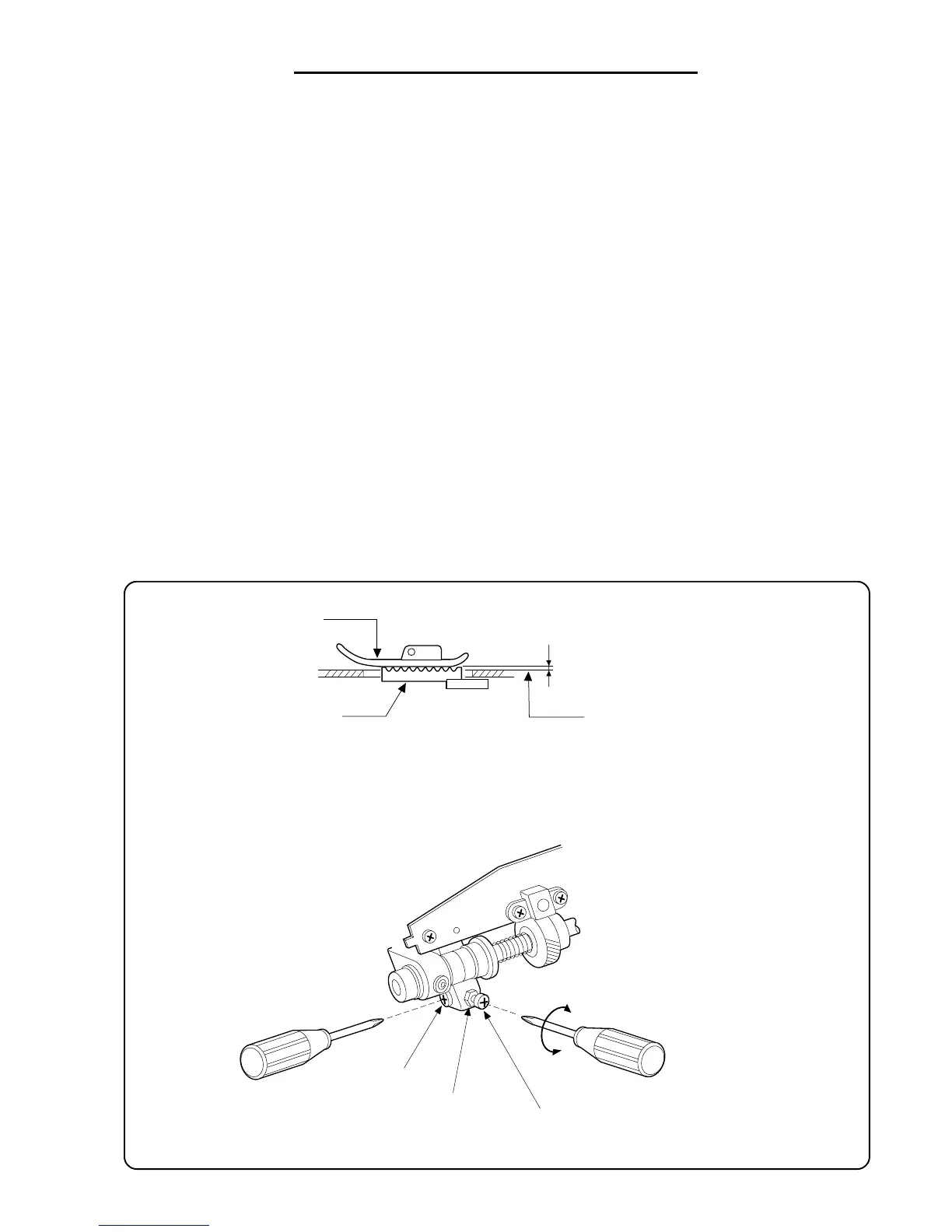

FEED DOG HEIGHT
THE HIGHEST POSITION OF THE FEED DOG SHOULD BE BETWEEN 0.8 TO 0.9 MM FROM THE SURFACE OF
THE NEEDLE PLATE WHEN THE THE PRESSER FOOT IS RAISED.
1. LOWER THE PRESSER FOOT.
2. TURN ON THE POWER SWITCH.
3. REMOVE THE BED COVER.
4. TURN THE HANDWHEEL TOWARD YOU TO SET THE FEED DOG AT THE HIGHEST POSITION.
5. LOOSEN THE SETSCREW(A) AND NUT(B).
6. ADJUST THE FEED DOG HEIGHT BY TURNING THE ADJUSTING SCREW (C).
7. TIGHTEN THE NUT (B) AND SETSCREW (A).
E (TO RAISE)
D
(TO LOWER)
ADJUSTING SCREW (C)
NUT (B)
SETSCREW (A)
PRESSER FOOT
FEED DOG
0.80-0.90 MM
SURFACE OF THE
NEEDLE PLATE
