29

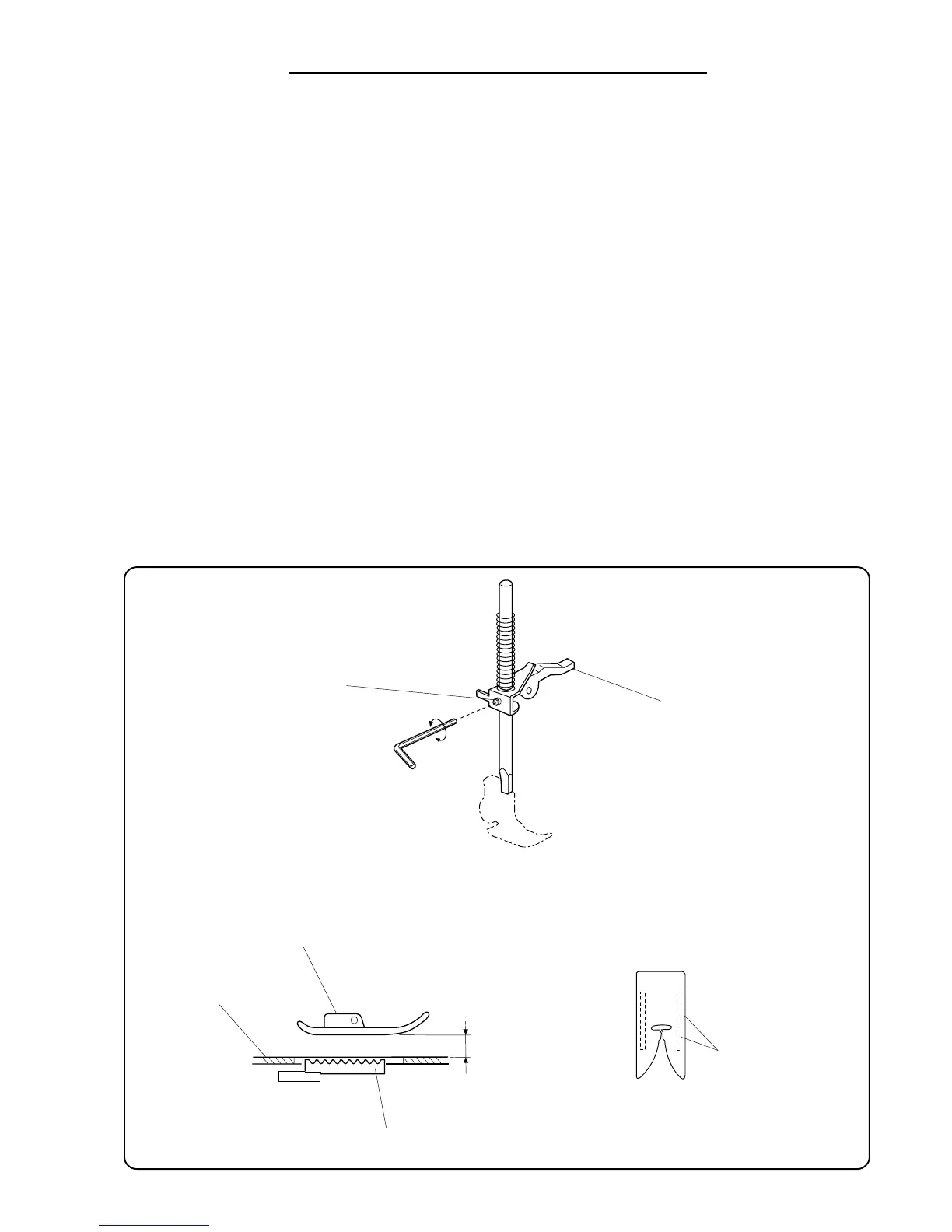

SEWING MACHINE MODEL DC5100
MECHANICAL ADJUSTMENT (12)
PRESSER BAR
LIFTER
SETSCREW 4X8
[PRESSER FOOT ALIGNMENT]
SHOULD BE
PARALLEL
[HEIGHT OF PRESSER FOOT]
PRESSER FOOT
NEEDLE PLATE
FEED DOG
PRESSER FOOT HEIGHT AND ALIGNMENT
WHEN THE PRESSER FOOT IS RAISED, THE CLEARANCE BETWEEN THE PRESSER FOOT AND THE NEEDLE
PLATE SHOULD BE 5.7 TO 6.3 MM.
WHEN THE PRESSER FOOT IS LOWERED, THE EDGE OF THE FOOT AND THE FEED DOG WINDOW ON THE
NEEDLE PLATE SHOULD BE PARALLEL.
1. OPEN THE FACE COVER AND RAISE THE PRESSER FOOT.
LOOSEN THE SETSCREW TO ADJUST THE PRESSER FOOT HEIGHT (6.0 MM) AND THE PRESSER
FOOT ALIGNMENT.
2. TIGHTEN THE SETSCREW FIRMLY.
3. CLOSE THE FACE COVER.
