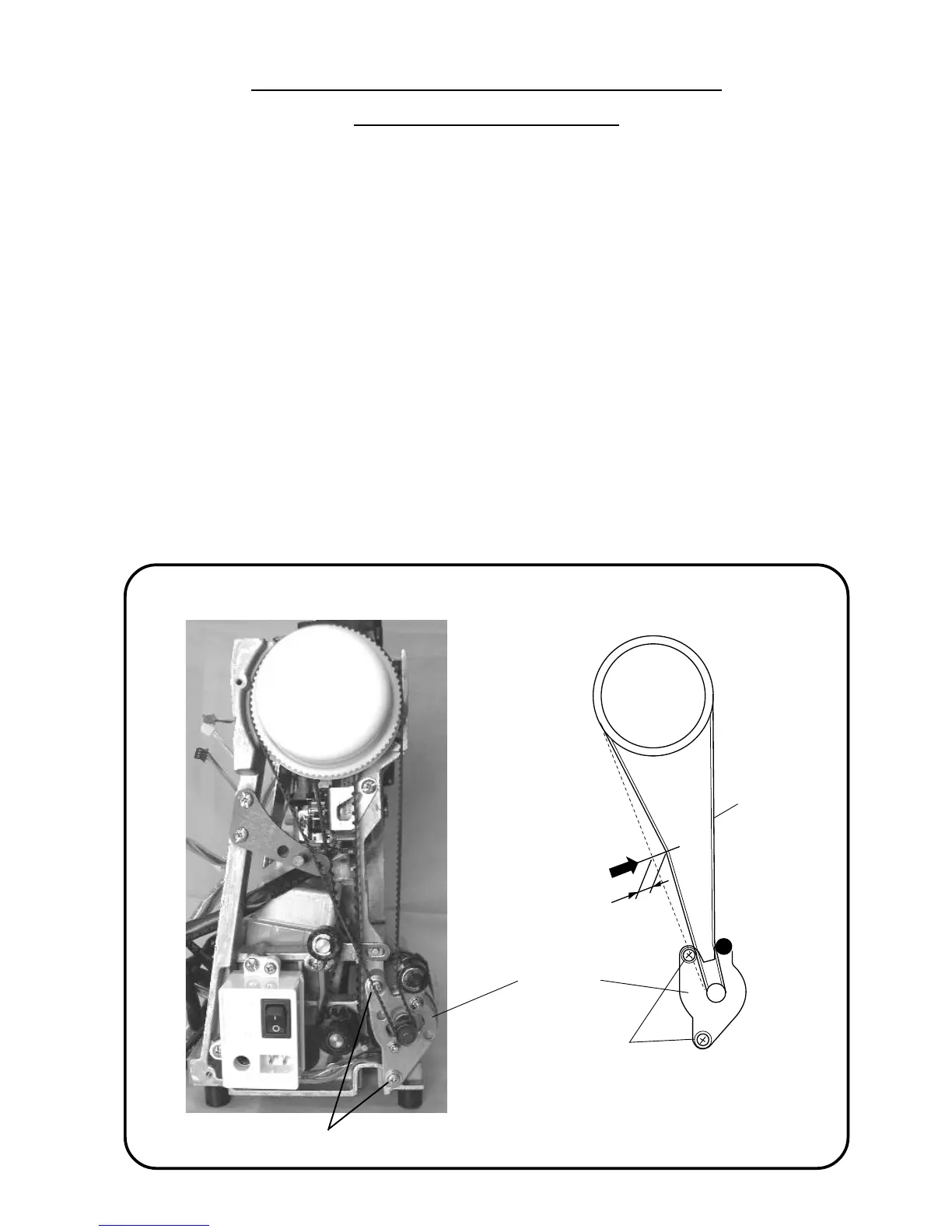

SEWING MACHINE MODEL DC5100
REPLACING DC MOTOR AND ADJUSTING
MOTOR BELT TENSION
PRESSURE 300G
BELT DEFLECTION:
7~9 MM
SETSCREWS (2)
SETSCREWS (2)
DC MOTOR
BELT
TO REMOVE:
1. REMOVE THE FRONT AND REAR COVERS (SEE PAGE 8).
2. DISCONNECT THE MOTOR CONNECTOR.
REMOVE THE TWO SETSCREWS, THEN REMOVE THE DC MOTOR AND BELT.
TO ATTACH:
3. SET THE MOTOR IN MACHINE AND REPLACE SCREW (A) AND (B).
4. INSERT THE MOTOR CONNECTOR INTO THE CONNECTOR POST (E) ON THE A-BOARD.
5. REPLACE THE MOTOR BELT.
6. MOVE THE MOTOR MOUNTING BLANKET (C) UP AND DOWN WHILE APPLYING APPROXIMATELY
300 GRAMS PRESSURE IN THE MIDDLE OF THE BELT, IT SHOULD DEFLECT 7 TO 9 MM WHEN SET
PROPERLY.
7. TIGHTEN THE SETSCREWS.
8. ATTACH THE FRONT COVER.
