Janome DC5100 - Replacing the Printed Circuit Board F

33
SEWING MACHINE MODEL DC5100

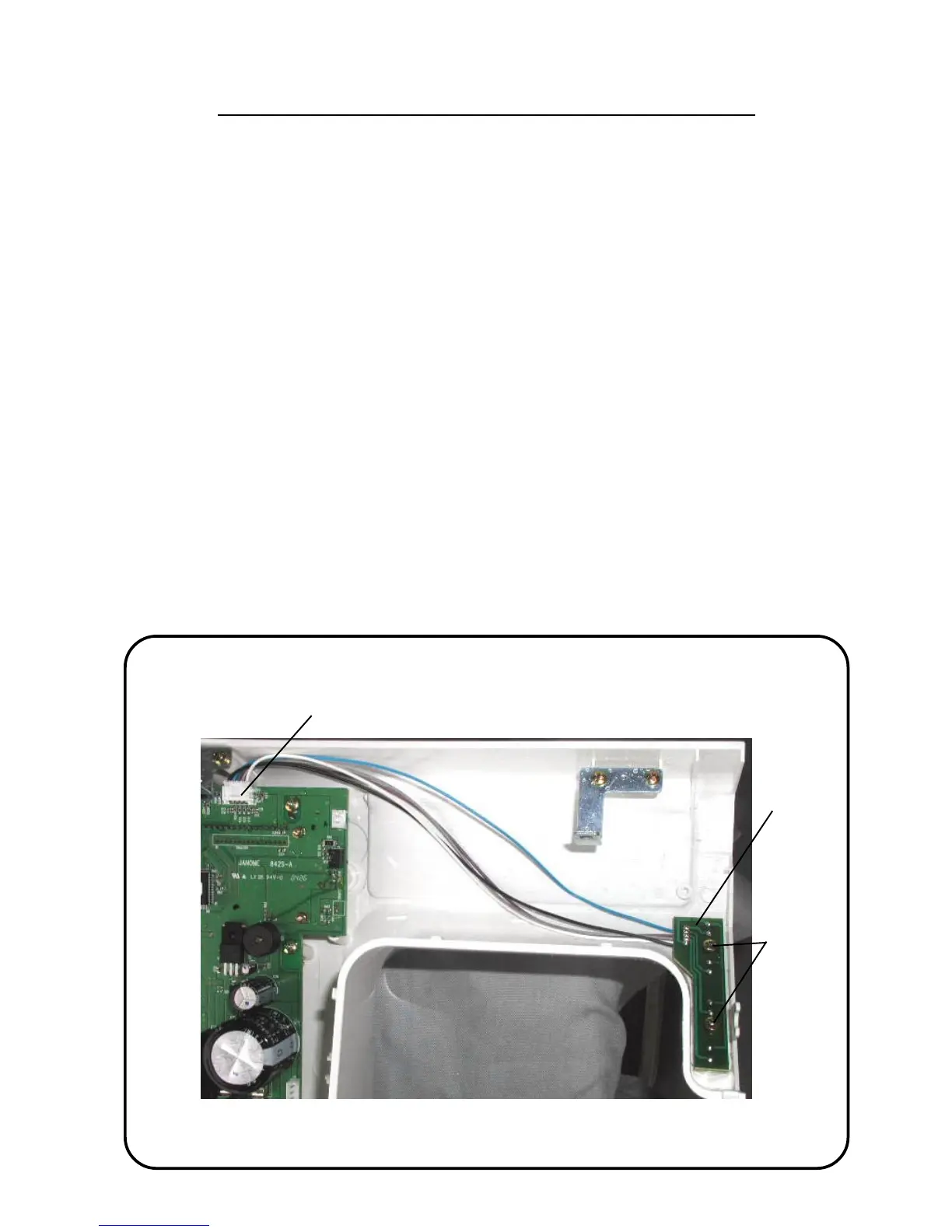

PRINTED CIRCUIT "F" BOARD
CONNECTOR
PRINTED
CIRCUIT
BOARD F
SETSCREWS
(2)
TO REMOVE:
1.REMOVE THE FRONT COVER UNIT
2.UNPLUG THE CONNECTOR OF THE PRINTED CIRCUIT BOARD "F".
3.REMOVE THE 2 SETSCREWS AND PRINTED CIRCUIT BOARD "F".
TO ATTACH:
4.FOLLOW THE PROCEDURE ABOVE IN REVERSE.
REPLACING THE PRINTED CIRCUIT BOARD "F"
