Janome DC5100 - Adjusting the Bobbin Winder Switch

41
SEWING MACHINE MODEL DC5100
ADJUST THE BOBBIN WINDING SWITCH
1.REMOVE THE FRONT COVER.
2.SET THE BOBBIN WINDER ARM IN THE SEWING POSITION AND LOOSEN THE SETSCREW.
ADJUST THE CLEARANCE BETWEEN THE BOBBIN WINDER ARM AND THE SWITCH FIXING
PLATE TO 0.7 TO 1.3 MM.
3.TIGHTEN THE SETSCREW.
4.INSTALL THE FRONT COVER.
TO CONFIRM:
TURN THE POWER SWITCH ON.
THE LED DISPLAYS WHEN THE BOBBIN WINDER SPINDLE IS SET THE BOBBIN
WINDING POSITION, AND DISPLAYS SEWING STITCH PATTERN SELECTION WHEN THE BOBBIN
WINDER IS RETURNED TO THE SEWING POSITION.

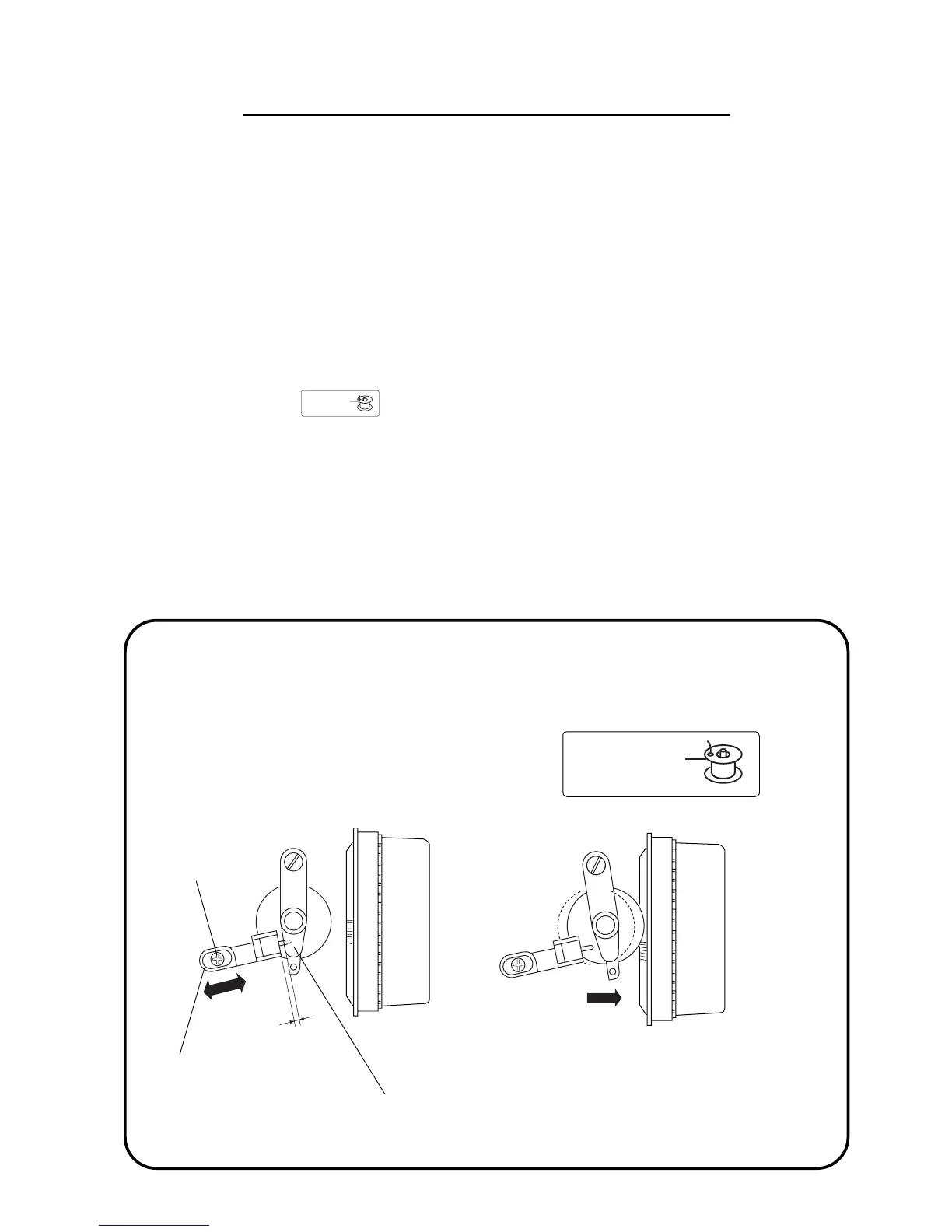

ADJUSTING THE BOBBIN WINDER SWITCH
SETSCREW
SWITCH FIXING
PLATE
APPROX.
0.7 TO 1.3mm
BOBBIN WINDING
BOBBIN WINDER ARM
BOBBIN
WINDING
BOBBIN
WINDING
