SEWING MACHINE MODEL DC5100
NEEDLE THREAD TENSION UNIT
TO REMOVE:
1. REMOVE THE FRONT COVER (SEE PAGE 15).
2. REMOVE SCREWS (A) AND (B) AND THE NEEDLE THREAD TENSION UNIT (C).
TO ATTACH:
1. REVERSE THIS PROCEDURE.
NOTE:
AFTER CHANGING THE NEEDLE THREAD TENSION UNIT, CHECK THE MECHANICAL ADJUSTMENT, "TENSION
RELEASE MECHANISM".

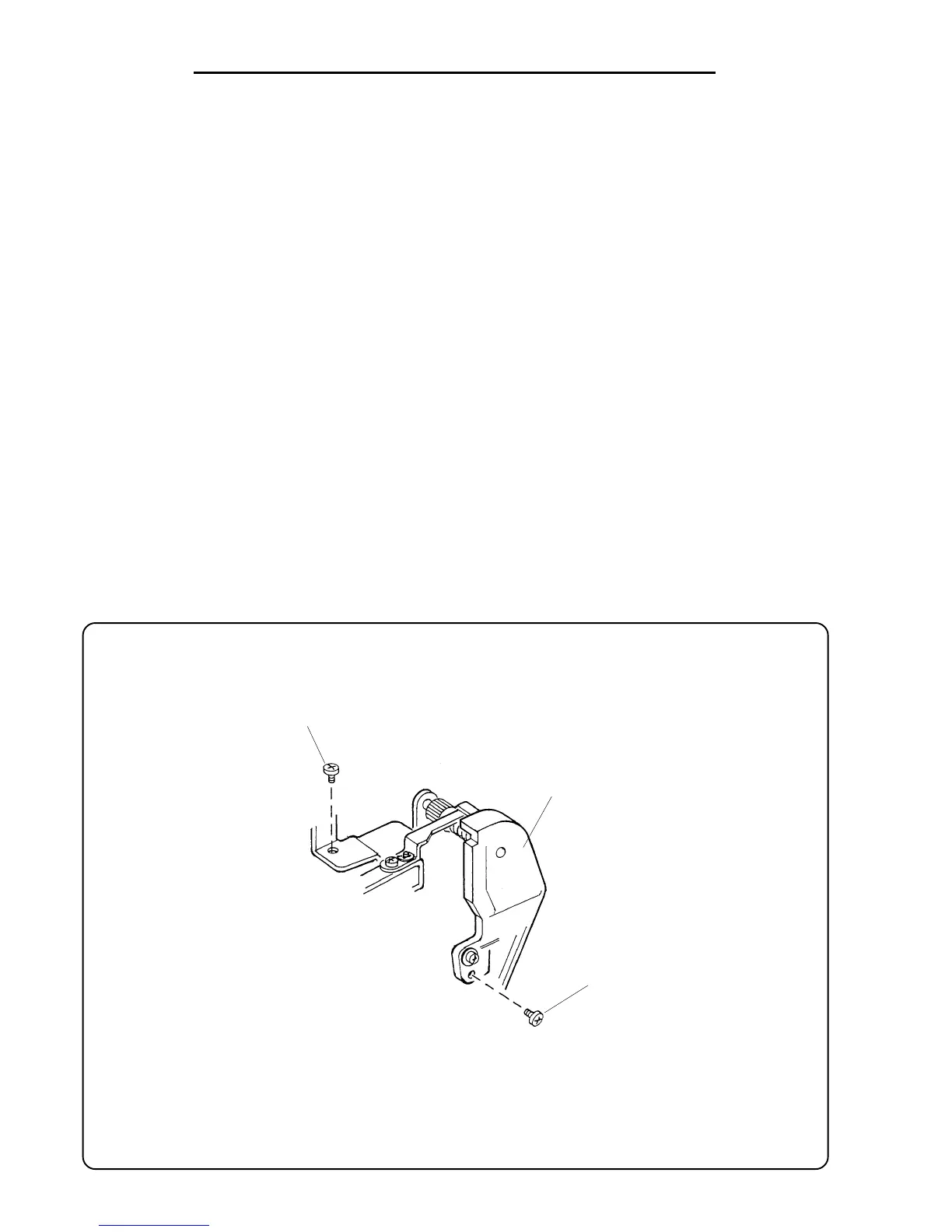

SCREW (A)
NEEDLE THREAD TENSION UNIT (C)
SCREW (B)
PART REMOVAL AND REPLACEMENT (1)
