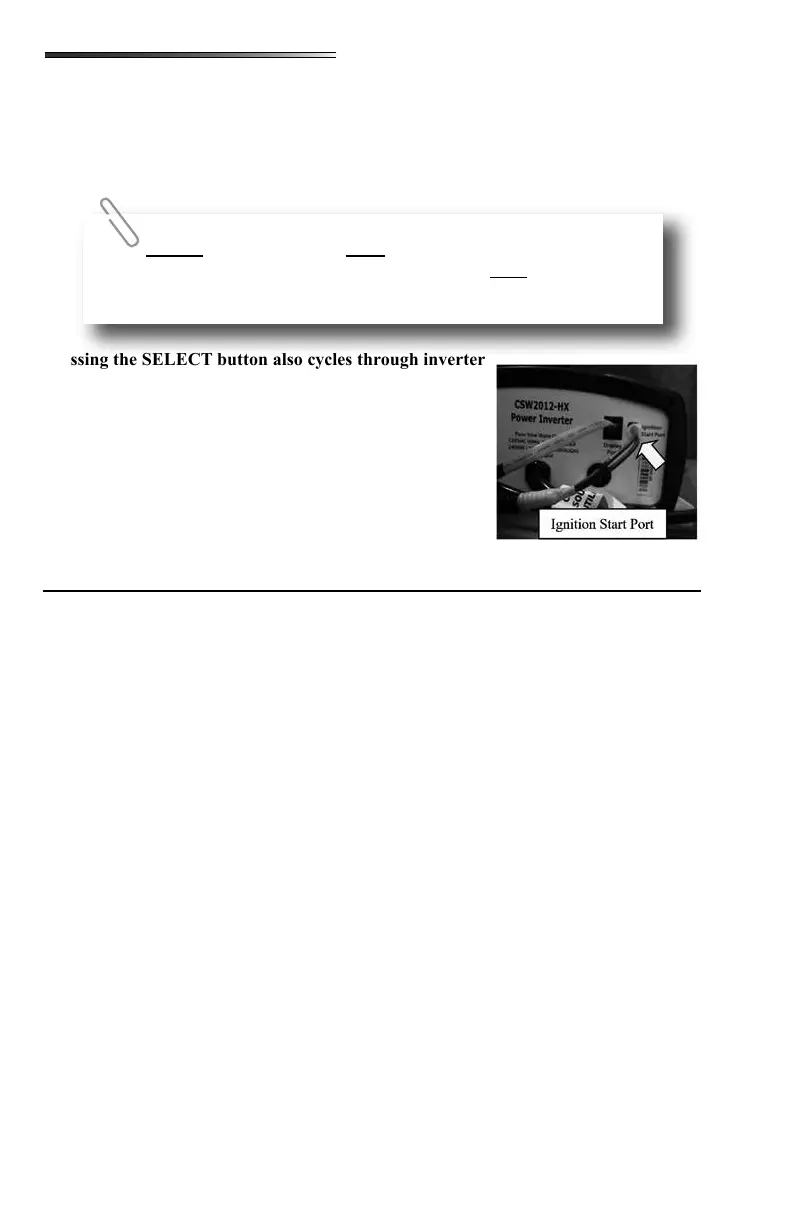

• STATUS LED FLASHES AMBER, DISPLAY LED IS OFF - If the unit is in Inverter
Mode, and you plug in shore power, the STATUS LED will begin ashing AMBER
and the unit will switch to Bypass Mode within 20 seconds of detecting an AC input.
• If the STATUS LED is RED and DISPLAY LED is OFF, the display will show an error
code of E01 through E12. This indicates a fault in the inverter circuit that needs atten-
tion. Inverter will shut down.
Refer to the Inverter manufacturers’ manual in your warranty
packet for further operating instructions, error codes, chang-
ing inverter settings and safety information.
The power button is a power disconnect switch and will
not remove DC power from the inverter. Disconnect power from the
inverter before working on it.
Power Converter
The power converter converts 120-volt AC power to useable 12-volt DC power when the
shore power cord is connected to an external power source.
The converter has a built-in protective thermal breaker that will shut it down should over-
heating occur. Overheating can be caused by operating the converter above its maximum
power output for an extended period of time, or by an obstruction to its ventilation air ow.
To reduce converter heat build keep unnecessary 12-volt lights and motors turned “o”.
Keep the converters cooling ns and fan clear of obstructions.
. Car batteries (CCA
rating) are not designed for RV applications. If doing a lot of dry camping use a
deep cycle battery rated in amp hours only (NO CCA rating).
If using multiple batteries they must be the same brand and type. Adding more
batteries will provide longer use of DC appliances when not on shore power but
may reduce charging eciency.
The battery works in conjunction with the converter to supply DC power to the
RV. A battery is typically only necessary if you do a lot of dry camping or have
slideouts and/or a leveling system.
Reverse polarity fuse provides protection for the converter when a battery is used.
If the battery is connected backwards to the fuse board this fuse would blow pre-
venting damage to the converter.
If your lights are dimming or ickering that usually indicates an overloaded con-
verter. Remove some of the load by turning o DC lights or appliances.
Fan is controlled by load. It will begin running at 3 to 6 amp DC draw. It increases
in speed with a higher load until 14 to 15 amps. Fan is at maximum speed and
stays there even with more load. If load drops below 6 amps DC, the fan shuts o.
