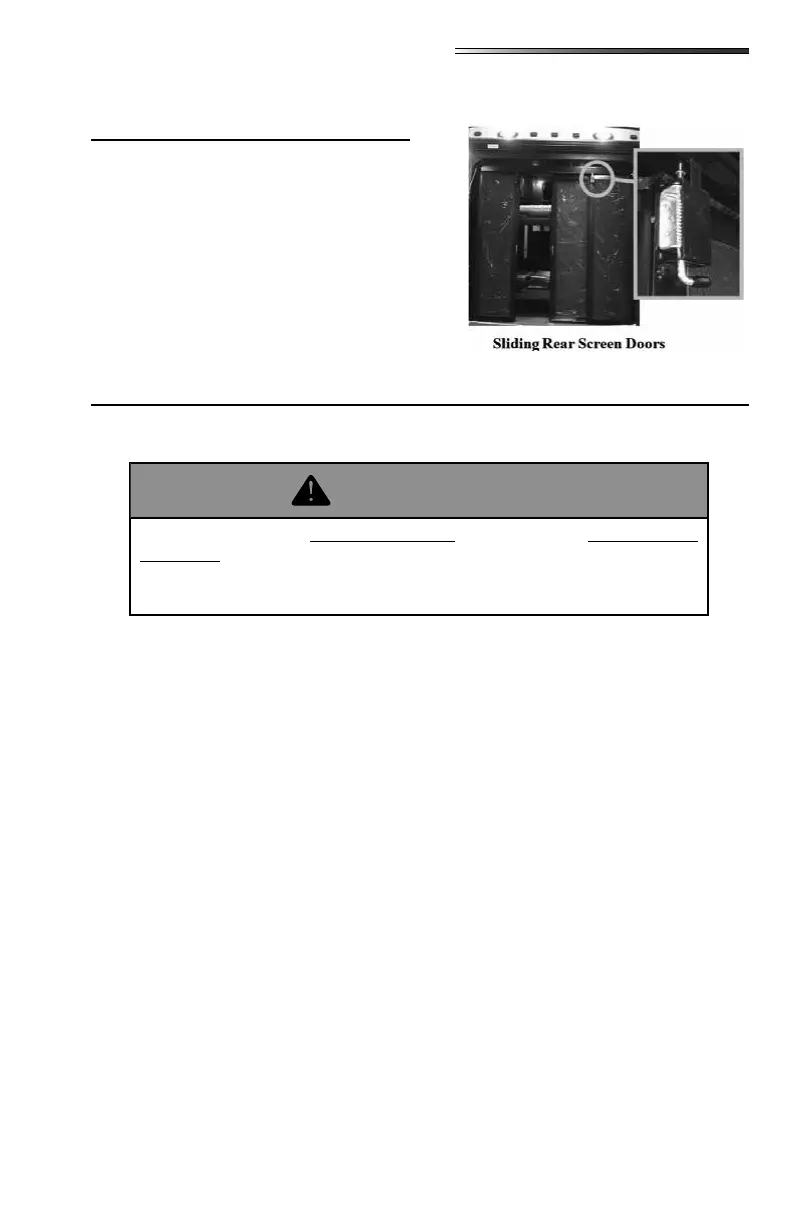

The two center doors slide back behind the outer
doors to allow walk out access to the deck. The
screen doors incorporate a swing out feature to al-
low loading of vehicles in the cargo bay. To oper-
ate this feature, pull down on the (spring loaded)
handle (photo), which unlocks the doors from the
door frame. They can now swing out over the
ramp door. Once the vehicle is loaded, swing the
doors back in place against the door frame, and
re-latch the spring loaded handle.
Patio Deck – Side (if so equipped)
Caution should be taken not to exceed patio capacity, and to maintain even weight distribu-
tion.
To set up the patio deck, unlatch the two keyed handles from the side of the RV ().
Lower the patio deck until the cables on each side support it. Support cables are attached
at the top of the door opening with a quick link () and to the deck with a safety pin
(). Patio deck is designed to be folded up with the support cables attached.
To set up the side rails, lift the 3 rails into their vertical positions. The rail supports drop into
a slot on the deck mounted brackets ().
The front railing attaches to the side railing with a ball and socket connector ().
The gate at the front of the deck has a pivoting bracket to latch the gate. This bracket latches
over a metal pin ().The patio deck comes equipped with mesh end curtains that snap to
the door jamb of the patio deck and to the frame work of the railings. These curtains close
o the gap between the railing and the door jamb ().
Before returning the patio deck to the stored position, the rails must be lifted up to release
them from the locking slots in the mounting brackets, and then they can be laid down on
the deck.
shows the complete patio deck with the optional step ladder.
Failure to observe the weight limit
or use other than intended may result in property damage or serious personal
injury.
