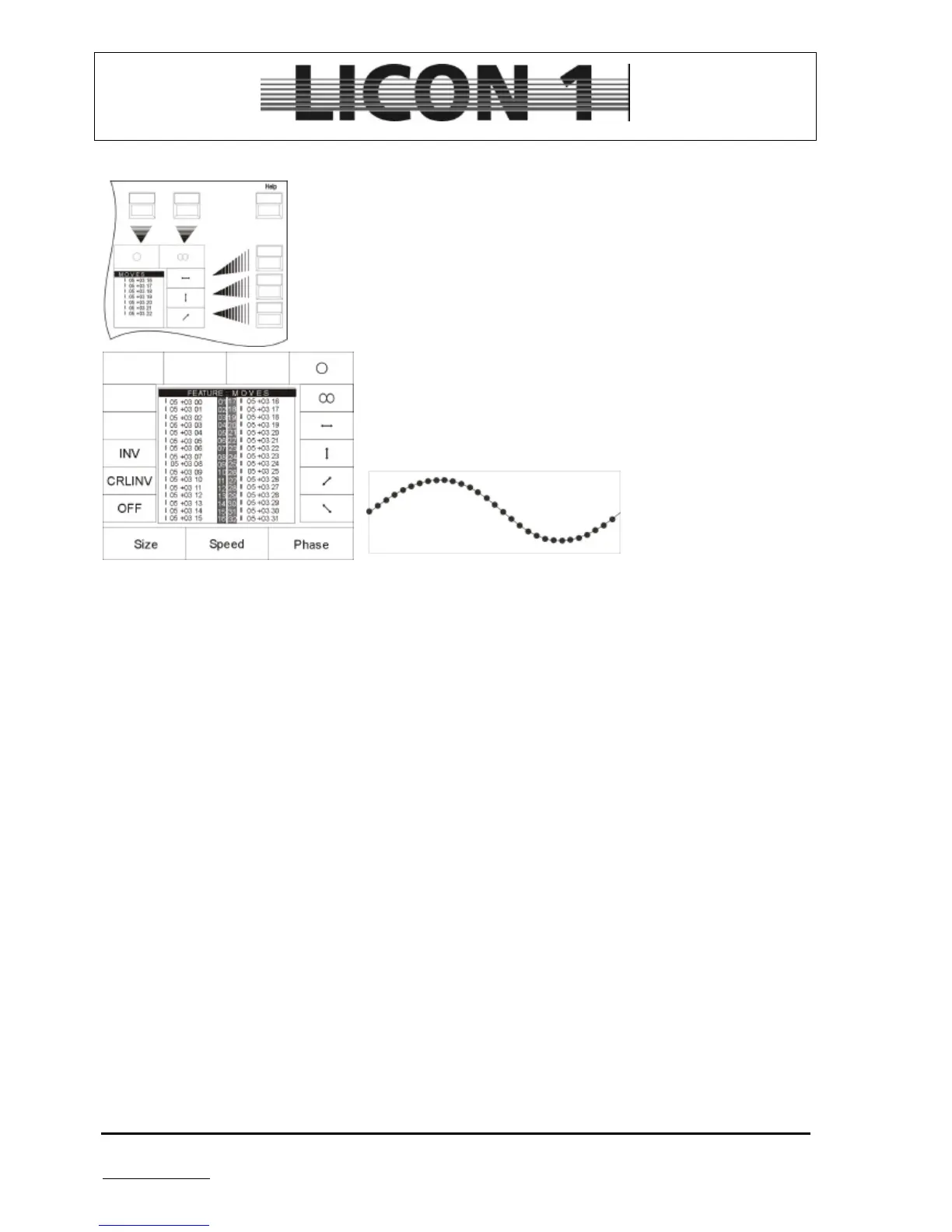

5.1 Phase function
The phase function enables the operator to program different start positions
for each fixture.
This feature is used to program waves, e.g.
A maximum of 31 phases is available.
To program a phase function select fixtures first.
Activate desired moving pattern and enter size and speed by means of
encoder wheels.
To assign each fixture to a different phase switch off all fixtures with
exception of fixture no. 2. Assign fixture no. 2 to phase one. Switch
off fixture no. 2 and activate fixture no. 3. Assign fixture no. 3 to
phase no. 2. Proceed with every other fixture the same way. If the
selected moving patterns was a up/down sweep, the result will be a
wave.
