Step no. 1:
Fixture no. 1 : colour red
Fixture no. 2 : colour green
Fixture no. 3-6: colour blue
Step no. 2
Fixture no. 1 : colour blue
Fixture no. 2 : colour red
Fixture no. 3 : colour green
Fixture no. 4-6: colour blue
Copy the parameter of one step:
Select the desired step by means of the softkeys LIST- or LIST+ .
Press softkey COPY and hold it.
While holding the softkey COPY select one of the chase steps by means of the softkeys LIST – or LIST+.
Release the softkey COPY and the values of the selected step will be overwritten immediately and shown on
the display.
à To confirm the process press the store key of combi-section.
After a short period of time the display will show the PROG COMB CHASE menu.
10.2.5 Page no. 6 of the chase generator (modification of the chase patterns)
On page no. 6 of the chase generator the pre-programmed chase patterns can be modified.

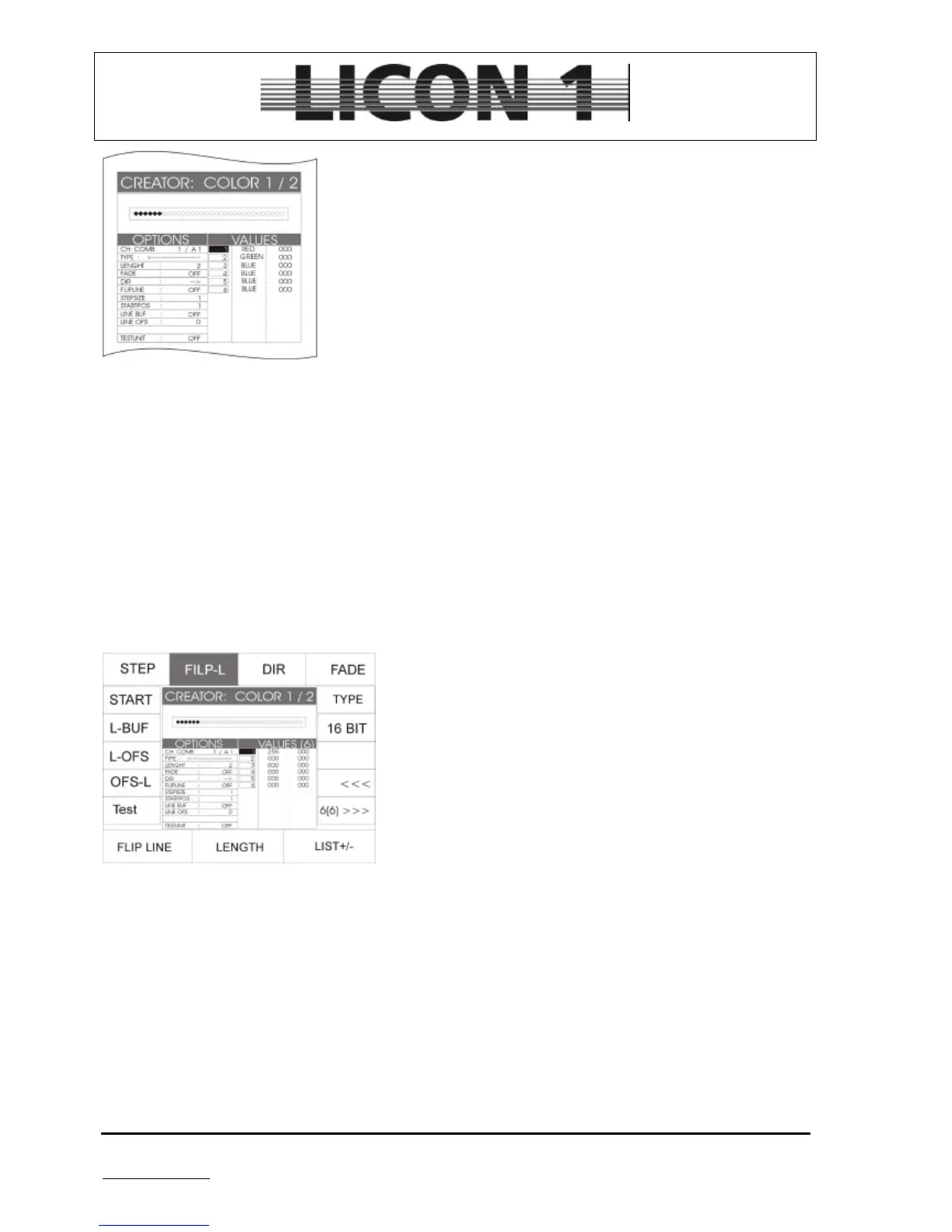

To start modification press softkey OPTIONS. You will find the following function displayed.
CH:COMB 1/D04 : name of the chase key
(in this example: PAGE 1, BANK D; CHASE-KEY NO. 4)
TYPE : >------------- way the chase runs
(symmetrical, asymmetrical, double symmetrical)
LENGTH : number of chase steps
(6 steps in this example)
FADE : ON/OFF
Fade on means the parameter can be faded, because it was
addressed with a faderamp in the store-matrix. Fade off means
the parameter can be switched only.
DIR : ----> direction of the pattern (in this example from left to right)
FLIPLINE :1
STEPSIZE :
STARTPOS:
LINEBUF :
LINE OFS :
TESTUNIT :
TYPE : The softkey TYPE enable to switch type of the chase. Choose between: symmetrical, double
symmetrical, unsymmetrical, double unsymmetrical, four times symmetrical and four times unsymmetrical.
>----------- ; >-----------< ; >------>------ ; >---< >---< ; >---->---<-----< ; >--->--->--->
LENGTH: LENGTH means the number of steps one chase contains.
The LENGTH can be varied by means of the encoder wheel situated in the middle.
