7. Ensure that the Host Machine is designed consid-
ering the risk of electronic components that can
cause induced noise. The noise generated by the
components on the Host Machine may affect and
degrade the Validation performance.
Mounting, Dismounting & Transportation
Methods for mounting, dismounting &
transporting the RBA-40C Unit:
1. Be sure to turn the Unit’s Power OFF before
mounting or removing the Unit from its perma-
nent location. Plugging or unplugging Connec-
tors from their Receptacles while the Power is
ON may cause damage to the Unit.
2. When reassembling a disassembled Unit Section,
ensure that each part is properly replaced into its
correct location.
3. Be careful not to use excessive outside pressure
on the Unit, or subject it to excessive vibration
during transportation.
4. Do not throw or apply external pressure on the
Unit. Improper handling may cause personal
injury and/or damage to the equipment.
5. Be sure to carry the Unit by both hands when
transporting it for your safety.
Operation Cautions
The Operation Cautions are defined as follows:
1. When closing the Unit, ensure all Service Door
including the Upper Guide locks securely.
2. Ensure that the RBA-40C Unit is properly placed
into its correct location.
Preventive Maintenance
The preventive maintenance requirements are
defined as follows:
1. Be sure to turn the Unit’s Power OFF before
beginning a cleaning or maintenance procedure.
Cleaning or performing maintenance while the
Power is turned on may cause personal injury if
the Unit mechanisms accidentally move.
2. To keep the RBA-40C Unit’s performance and
Banknote acceptance at optimal rates, clean and
maintain the Unit regularly. (Refer to “Cleaning
Procedures” on page 12 for the cleaning proce-
dures and schedule).
3. Perform cleaning and maintenance regularly
when using the equipment in an smoky environ-
ment such as where excessive Automobile
exhaust emission or Cigarette Smoke may exist.
4. Do not redesign or disassemble the Unit.
Unauthorized use by inadequately trained
personnel, or use outside the original manufac-
turer’s intent voids the warranty.
5. If the Unit is exposed to water or other liquids,
use a clean Micro-fiber Cloth to wipe off and
absorb excess liquids immediately. Any
remaining liquids may affect and degrade the
Sensors and Validation performance.
Banknote Fitness Requirements
The following Banknote types may not validate
correctly, or worse, can cause a Banknote jam and/
or damage to the Unit’s Transport Path. Banknotes
exhibiting the following conditions illustrated in
Figure 3 should be avoided:
• Torn
• Worn
• Taped
• Excessive folds or wrinkles
• Dirty
• Wet and/or Oiled
• Adhering foreign objects
• Excessive miscuts, misaligns and/or misprints
WARNING: This Unit is designed for
use with a Limited Power Source!
Design the Host Cabinet space to meet
all local related safety standards.
WARNING: Make sure Interface Harness
connections to the Host Machine are
shorter than 9.84 Feet (3 Meters) in
length. Cut off all unused portions of
the Interface Harness wiring to avoid
static electrical effects or short circuit
possibilities that could cause damage
to the Unit. (Refer to “Connector Pin
Assignment” on page 9 for the
recommended wires).
WARNING: Do not inject water or liquid
agents of any kind into the Unit, as this
may cause extreme damage to the Unit.
Caution: Do not use Alcohol, thinner or
Citrus based products for cleaning any
Banknote Transport Sensors or surfaces.
The lenses can become clouded by
chemical evaporation residue that may
cause acceptance errors.
Caution: Be careful to avoid personal
injury to your fingers when closing the
Upper Guide Section.

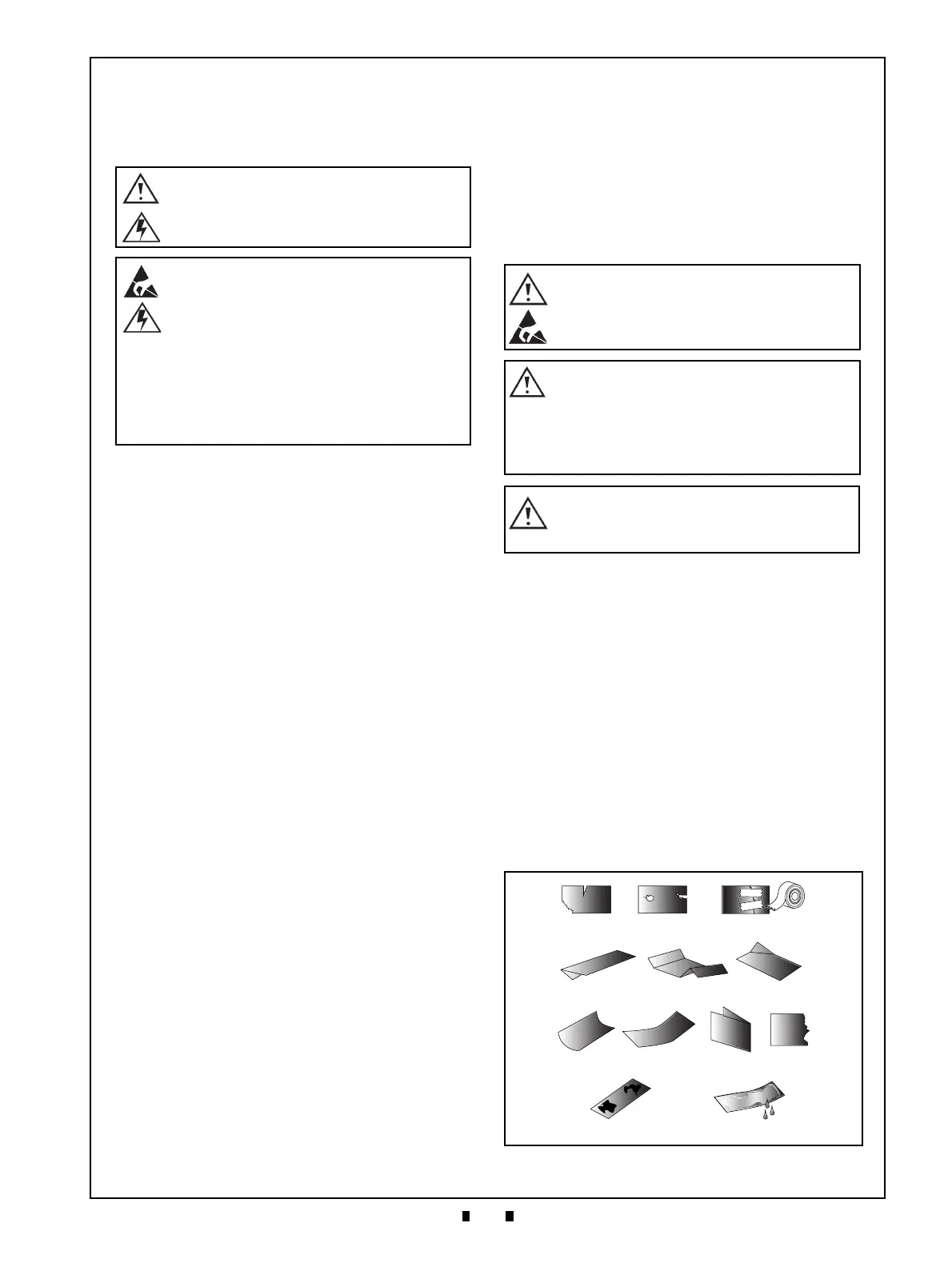

Figure 3 Unacceptable Banknotes
Figure 3 Unacceptable Banknotes
Damaged or Taped Banknotes
Wrinkled or Folded Banknotes
Curled, Folded or Partial Banknotes
Dirty Banknotes
Wet or Oiled Banknotes
