Section 5 RBA-40C™ Banknote Acceptor Preventive Maintenance
This section provides the preventive maintenance
for the RBA-40C™ Banknote Acceptor (RBA-
40C). It includes the following information:
• Clearing a Banknote Jam
• Opening the Centering Mechanism
• Cleaning Procedures
Clearing a Banknote Jam
To retrieve a jammed Banknote located inside the
Banknote Acceptor, proceed as follows:
1. Press on to the Upper Guide Open/Close Button
(Figure 6 a) located on both sides of the RBA-
40C Unit to open the Upper Guide (Figure 6 b).
2. Remove the jammed Banknote (Figure 6 c).
Opening the Centering Mechanism
If a Banknote jam occurs in the Banknote Acceptor
when the Centering Mechanism is closed, the
Upper Guide will not open. To release (open) the

Upper Guide, power cycle the Unit and allow it to
reset.
Cleaning Procedures
To clean the RBA-40C Unit, gently rub the Sen-
sors, Rollers or Belts using a dry, soft, 
lint-free, Micro-fiber Cloth ONLY.
1. Remove electrical power.
2. Press on to the Upper Guide Open/Close Button
to open the Upper Guide.
3. Clean the appropriate path and Lens of each Sen-
sor, Roller and Belt. (Refer to “RBA-40C Sen-
sors and Cleaning Locations” on page 13 for each
Sensor and Roller that requires cleaning).
5 PREVENTIVE MAINTENANCE

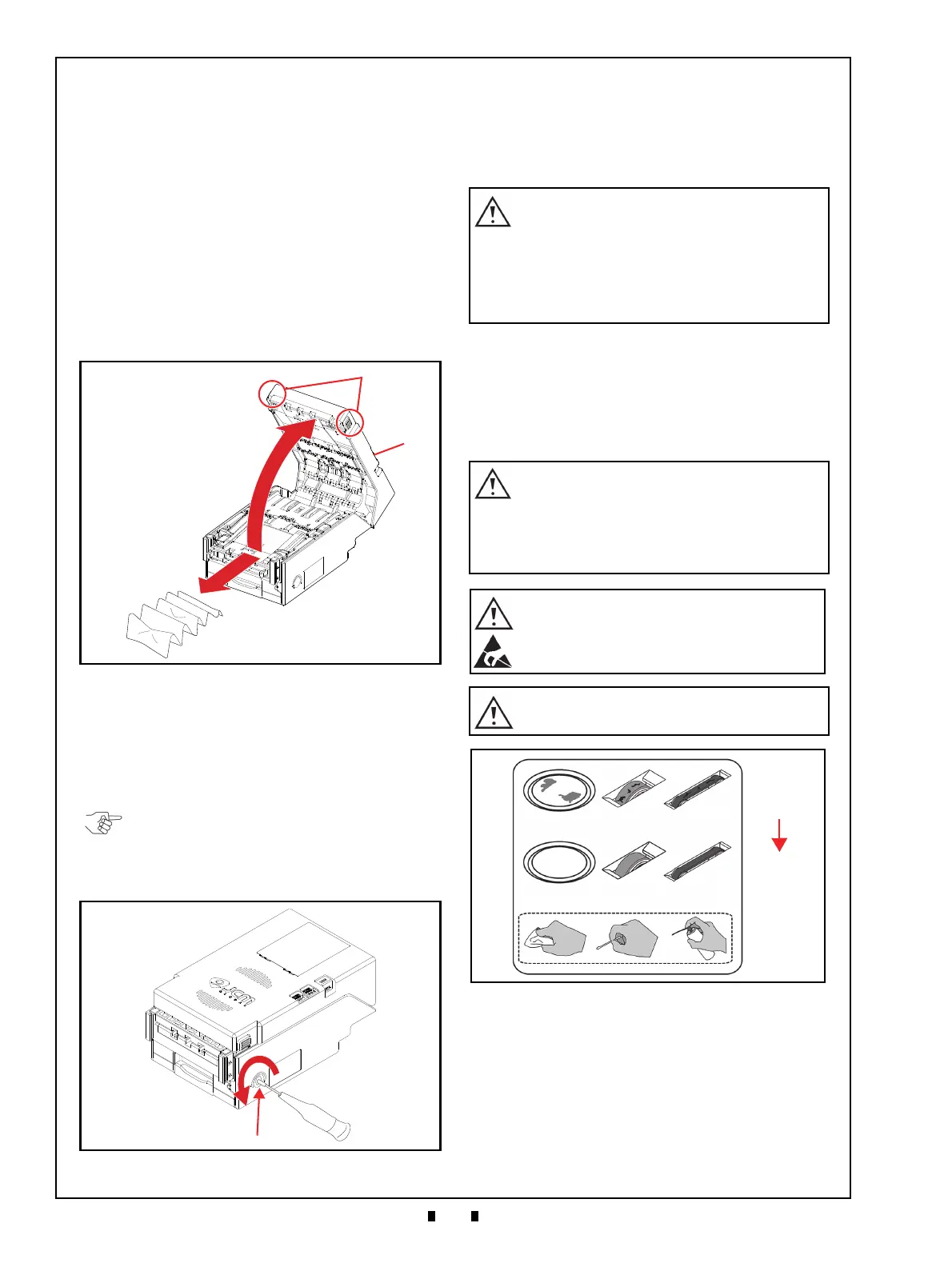

Figure 6 Clearing a Banknote Jam
Figure 6 Clearing a Banknote Jam
a
b
c
NOTE: If power cycling fails to clear the
Banknote jam, use a 5.5mm nut driver to
rotate the Centering Guide Open Shaft, then
open the Upper Guide and remove the
Banknote from the RBA-40C unit (Figure 7).
Figure 7 Opening the Centering Mechanism
Figure 7 Opening the Centering Mechanism
5.5mm Nut Driver
Centering Guide Open Shaft
To keep the RBA-40C Unit’s
performance optimal, perform routine
cleaning and maintenance;
• At least once a month; and/or
• Whenever Sensors, Rollers, Belts or
Banknote Path are dirty due to dust, foreign
objects or similar debris adhering to them.
Caution: Do not use alcohol, thinner or
citrus based products for cleaning any
Sensors or surfaces. The lenses can
become clouded by chemical
evaporation residue that may cause
acceptance errors.
Caution: Do not inject water or liquid
agents of any kind into the Acceptor, as
this may cause extreme damage to the
Unit.
Caution: Be sure to use non-flammable
compressed air only.
Figure 8 General Cleaning Image
Lens
Roller
Dry Lint-free Cloth/Cotton Swab/
Before
Cleaning
After
Cleaning
Belt
Non-flammable Air Jet
Figure 8 General Cleaning Image
