Preventive Maintenance RBA-40C™ Banknote Acceptor Section 5
Issue #4119-IGE-01-00 © 2020, JAPAN CASH MACHINE CO., LTD.
RBA-40C Sensors and Cleaning Locations
Figure 9 illustrates the various RBA-40C Unit’s Sensors, Rollers and Belts cleaning locations.
Table 13 lists the RBA-40C sensor type cleaning methods.
Table 13 RBA-40C Sensor Type Cleaning Methods
Sym. Sensor/Roller Type Cleaning Method
a Entrance Sensor
Wipe clean using a dry, lint free cloth, cotton
swab
or
Blow clean using non-flammable Compressed
Air.
(Refer to “Cleaning Procedures” on page 12).
b Centering Guide Timing Sensor
c
CIS
d
Anti-Pullback Entrance Sensor
e Magnetic Sensor
f Anti-Pullback Exit Sensor
g Exit Sensor

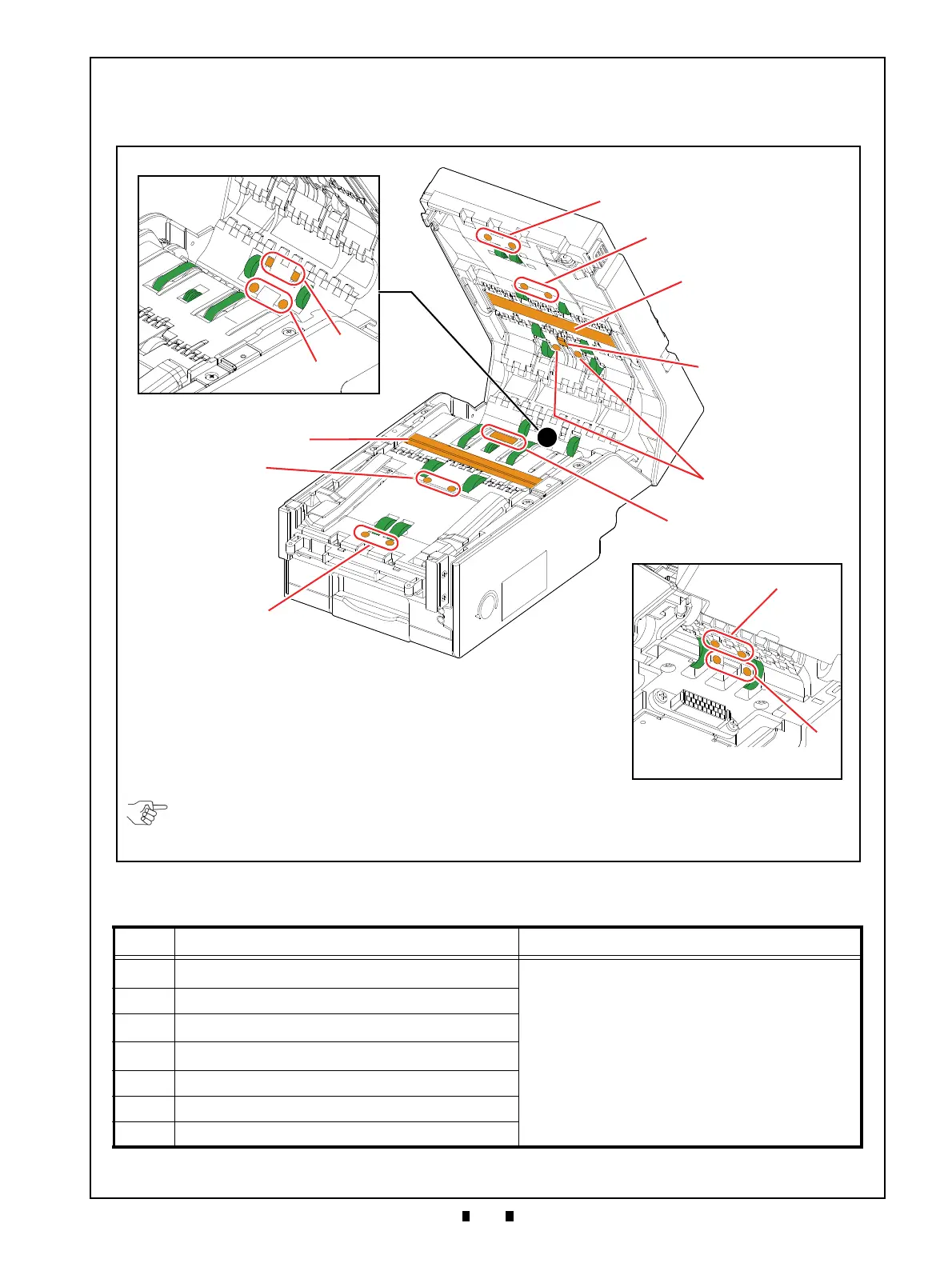

Figure 9 RBA-40C Sensors and Cleaning Loca-
Figure 9 RBA-40C Sensors and Cleaning Locations
b
a
c
e
NOTE: Wipe and clean all of the Green colored Rollers and Belts using a slightly damp, lint-
free, Micro-fiber cloth as needed. Do not allow liquids or fluids to drip into the Unit, to minimize
the risk of damage or improper performance.
