JCM RBA-40C - Environmental Specifications; Electrical Specifications; Structural Specifications

Specifications RBA-40C™ Banknote Acceptor Section 2
Issue #4119-IGE-01-00 © 2020, JAPAN CASH MACHINE CO., LTD.
7
Environmental Specifications
Electrical Specifications
Structural Specifications

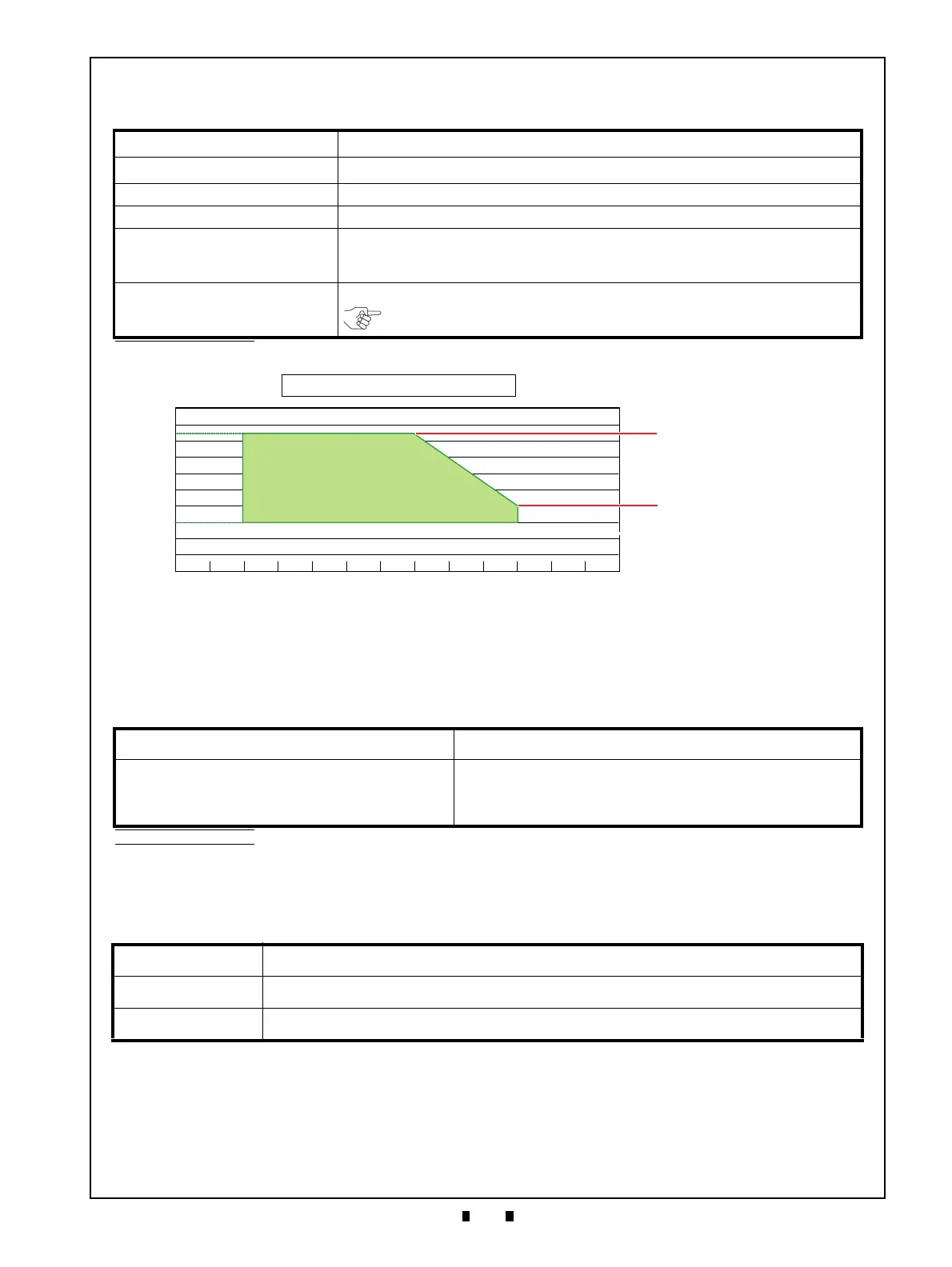

Table 5 RBA-40C Environmental Specifications
Operating Temperature:
+5ºC to +50ºC (41ºF to 122ºF)
*
*. Depends on hydrothermal conditions.
Storage Temperature:
-20ºC to +60ºC (-4ºF to 140ºF)
*
Relative Operating Humidity: 30%RH to 85%RH (non-condensed)
Relative Storage Humidity: 30%RH to 85%RH (non-condensed)
Visible Light Sensitivity:
Avoid contact with direct sunlight.
Interior lighting must be incandescent with a Radiant Angle of 15º degree
or more having an illumination index of 3000 lux or less
Installation:
Indoors Only, No cabinet vibration
Table 6 RBA-40C Electrical Specification
*
*. Measured on a brand new and factory default RBA-40C Unit.
Supply Voltage:
†
†. Use a Limited Power Source.
24V DC (±5%)
Current Consumption:
• Standby = 0.2A
• Operation = 0.5A
• Peak = 1.4A
Table 7 RBA-40C Series Structural Specification
Weight: Approximately 1.2kg (2.64lbs)
Mounting: Horizontal, 0 degrees, ±0 degrees angle (parallel to the Banknote insertion direction)
Outside Dimensions: Refer to “Unit Dimensions” on page 29.
100
90
80
70
60
50
40
30
20
10
0
50 10 15 20 25 30 35 40 45 50 55 60
Hydrothermal Condition Table
Relative Humidity [%RH]
Allowable
and Relative Humidity Range
35ºC/85%RH
50ºC/40%RH
Operating Temperature
Temperature [°C]
NOTE: Refer to “Installation Cautions” on page 2 for the details.
