Issue #4119-IGE-01-00 © 2020, JAPAN CASH MACHINE CO., LTD.
17
Standard Interface Circuit Schematics RBA-40C™ Banknote Acceptor Section 6
RBA-40C Bezel LED Light Controller Circuit Schematic

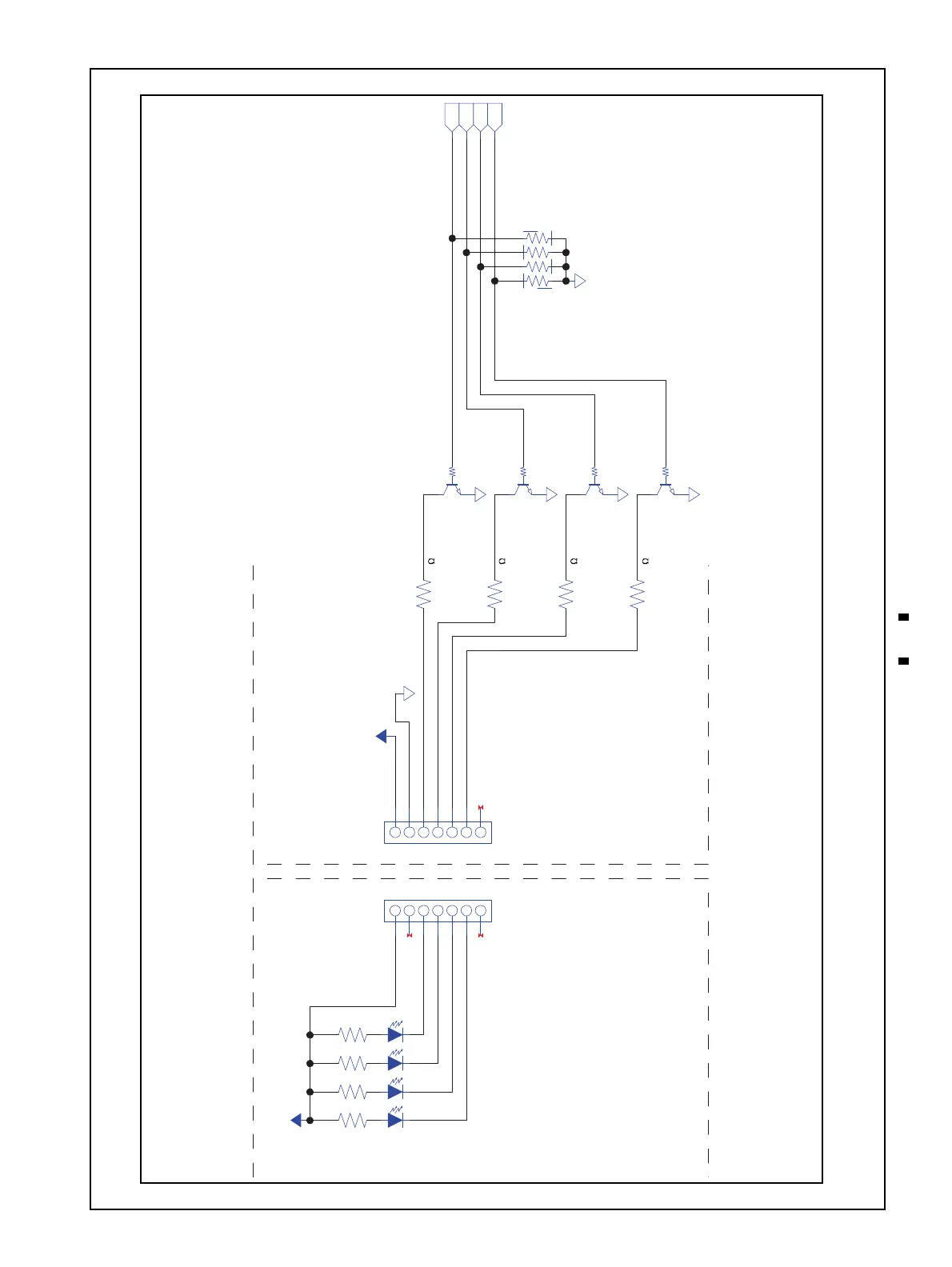

Figure 12 RBA-40C Bezel LED Light Controller Circuit Schematic
Figure 12 RBA-40C Bezel LED Light Controller Circuit Schematic
1
2
3
4
5
6
7
PW12V
GND
BZLED_1
BZLED_2
BZLED_3
BZLED_4
NC
1
2
3
4
5
6
7
PW12V
GND
BZLED_1
BZLED_2
BZLED_3
BZLED_4
NC
S7B-ZR-3.4
+12V
GND
+12V
47
47
47
47
GND
GND
GND
GND
6
1
3
4
6
1
3
4
UMH3N
UMH3N
UMH3N
UMH3N
2
5
5
15k
1
2
3
4
8
7
6
5
GND
2
Bezel Side Example
RBA-40C Unit Side
FET collector current of the LED light controller (Absolute Maximum Ratings): 100mA
