JCM RBA-40C User Manual

Operational Flowcharts RBA-40C™ Banknote Acceptor Section 7
Issue #4119-IGE-01-00 © 2020, JAPAN CASH MACHINE CO., LTD.
19
7 OPERATIONAL FLOWCHARTS
This section provides operational flowcharts of the RBA-40C™ Series Banknote Acceptor (RBA-40C).
Initialization and Banknote Acceptance Flowchart

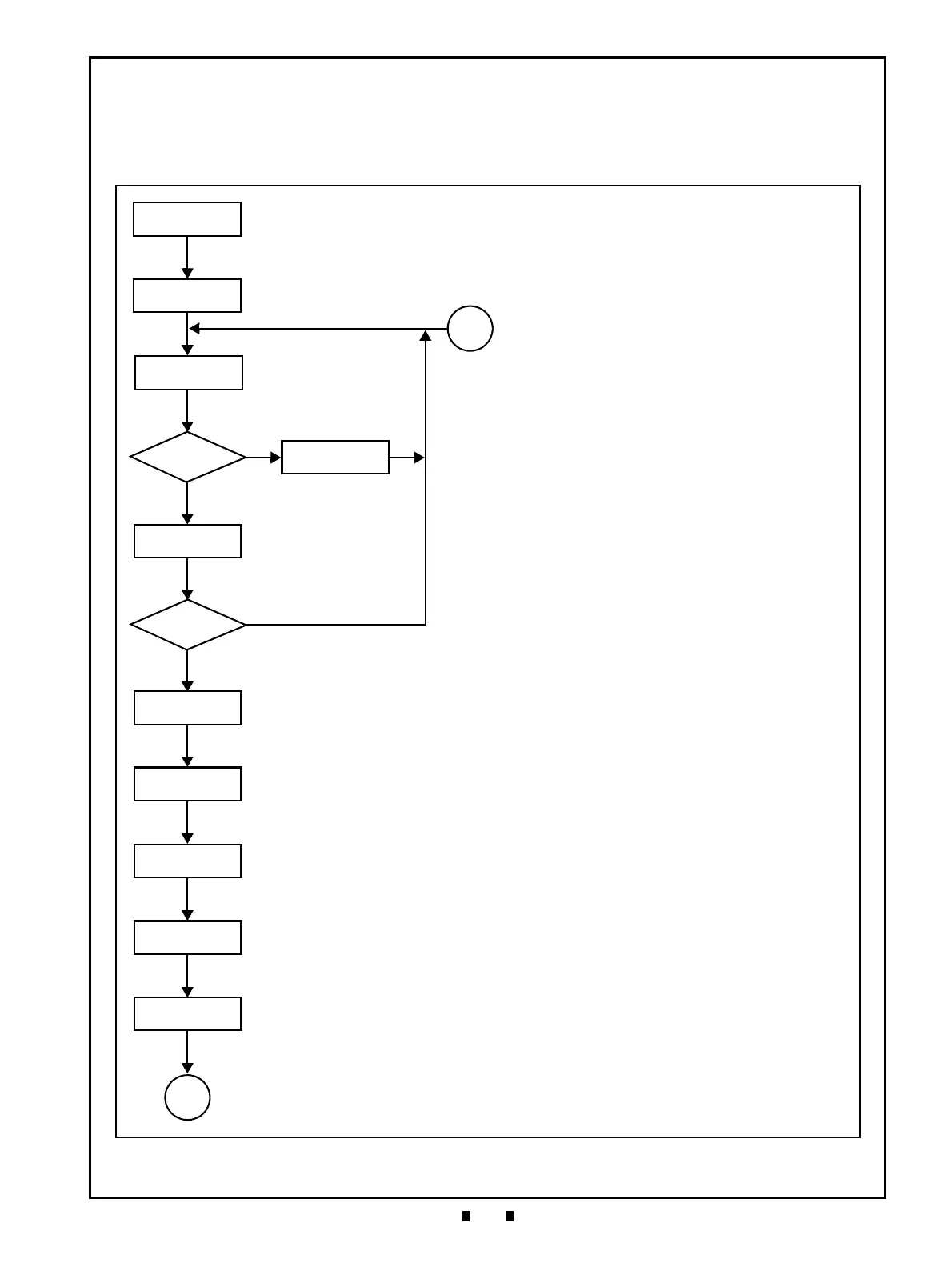

Figure 13 depicts a typical RBA-40C Initialization and Banknote Acceptance flow process.
Figure 13 RBA-40C Initialization and Banknote
Acceptance Flowchart
Figure 13 RBA-40C Initialization and Banknote Acceptance Flowchart
b) Initializing
c) Stand-by
d) Enable Acceptance?
f) External LED Display shows Enable Accept
Pattern
g) Inserted Banknote?
h) Take in the Banknote
i) Centering the Banknote
j) Start Transporting the Banknote
k) Sampling the Banknote Data
A) To “Validation” Flowchart (Figure 14)
l) Stop Transporting the Banknote
C) Return from “Discharging” Flowchart
(Figure 15)
a) Apply Power to the Unit.
e) External LED Display shows No Accept 
Pattern
A
b
d
e
YES
NO
a
f
c
g
h
YES
NO
i
j
k
l
C
