Section 1 RBA-40C™ Banknote Acceptor General Information
Product Descriptions
Model Descriptions
Table 1 lists the product model number
descriptions.
Type Descriptions
Table 2 lists the product type number descrip-
tions.
Software Descriptions
Table 3 lists the software number descriptions.
Precautions
The Figure 2 symbols are defined as follows:
1. (Type 1) Do not insert a damaged or exhibited
unfit condition Banknote; it may cause a jam
inside the unit.
2.
(Type 2) Do not expose the unit to water. The unit
contains several precision electronic devices that
can be damaged if water or any liquid is sprayed
or spilled into the unit.
3.
(Type 3) Do not install the unit in a dusty
environment. Dust may damage the unit or
degrade its performance.
User Cautions
Careful measures were taken in the design of this
product to ensure its quality; however, the follow
-
ing cautions pertain to all users and should be fol-
lowed for safe operation.
Installation Cautions
The Installation Cautions are defined as follows:
1. Do not allow the Unit to endure or operate at a
high temperature, in high humidity and/or in a
dusty environment.
2. Do not install the Unit into an area where exces-
sive vibration or shock is present or strong exter-
nal pressure is applied.
3. The Unit is not designed for outdoor installation.
Be sure that the Host Machine contains enough
protection to avoid wet or dusty conditions,
including the internal unit assemblies, when
installing in either an indoor or open-air space.
4. Avoid exposing the Unit to direct Sunlight and/or
incandescent Lamp Illumination. (Refer to
“Environmental Specifications” on page 7).
5. Ensure that the Host Machine is designed for
daily operational access for maintenance and/or
clearing a Banknote Jam. (Refer to “Unit Dimen-
sions” on page 29).
6. Do not use the Unit where it may be exposed to
airborne evaporated or sporadic chemicals and/or
oil.
Table 1 RBA-40C Model Number Specifications
N
o
(1)
Model Number
4 = Standard
(2)
Model Series Number
0 = Standard
1-9 = Reserved
Table 2 RBA-40C Type Number Specifications
N
o
(1)
Denomination (Country Code)
*
*. The Country Code is indicated per the ISO 3166 standard.
(2)
Bezel
0 = Without Bezel (Standard)
1-9 = Reserved
(3) Reserved
(4)
Magnetic Sensor
0 = Without Magnetic Sensor (Standard)
1 = With Magnetic Sensor
(5)
Interface Protocol ID
64 = ID-064GD
†
** = Last 2 digits of interface ID
†. Serial communication protocol developed by ADP.
Table 3 RBA-40C Software Number Specifications
N
o
(A)
Denomination (Country Code)
*
*. The Country Code is indicated per the ISO 3166 standard.
(B) Interface Protocol Name
(C) Software Version
Type: * * * (*) - * * * - * *
(1) (4) (5)(2)(3)
(A)
Software: RBA-40C (* * *) ID 0 * * V * * *
(B) (C)
Caution: User cautions should be
included in any user guides or manuals.
Caution: Careful measures were taken in
the design of this product to ensure its
quality; however, ensure that a fail-safe
design is used for the Host Machine to
assure safety.

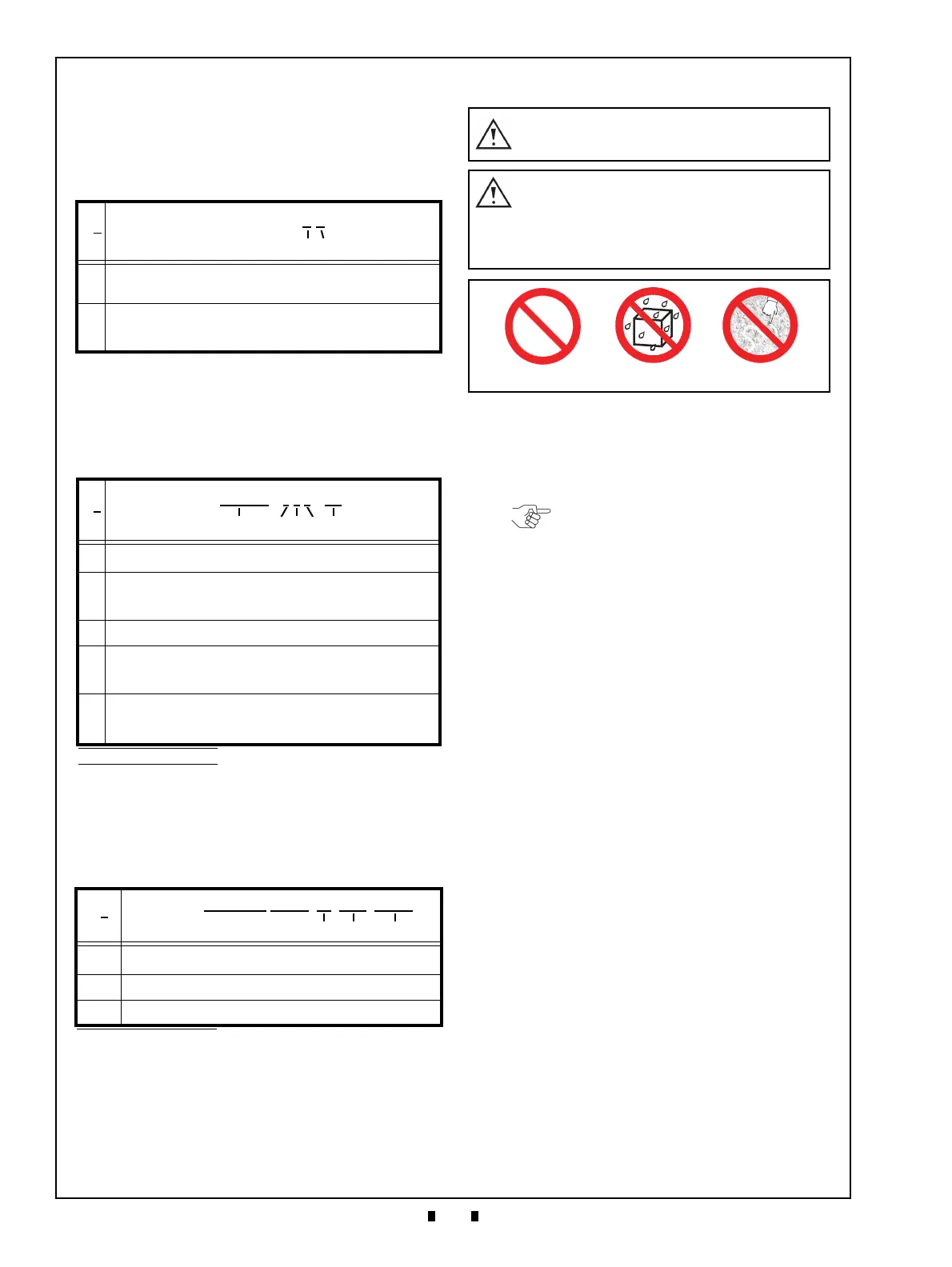

Figure 2 Precautionary Symbols
Figure 2 Precautionary Symbols
NOTE: Refer to “Banknote Fitness
Requirements” on page 3.
To Next Page
