4. Working with the woodchipper

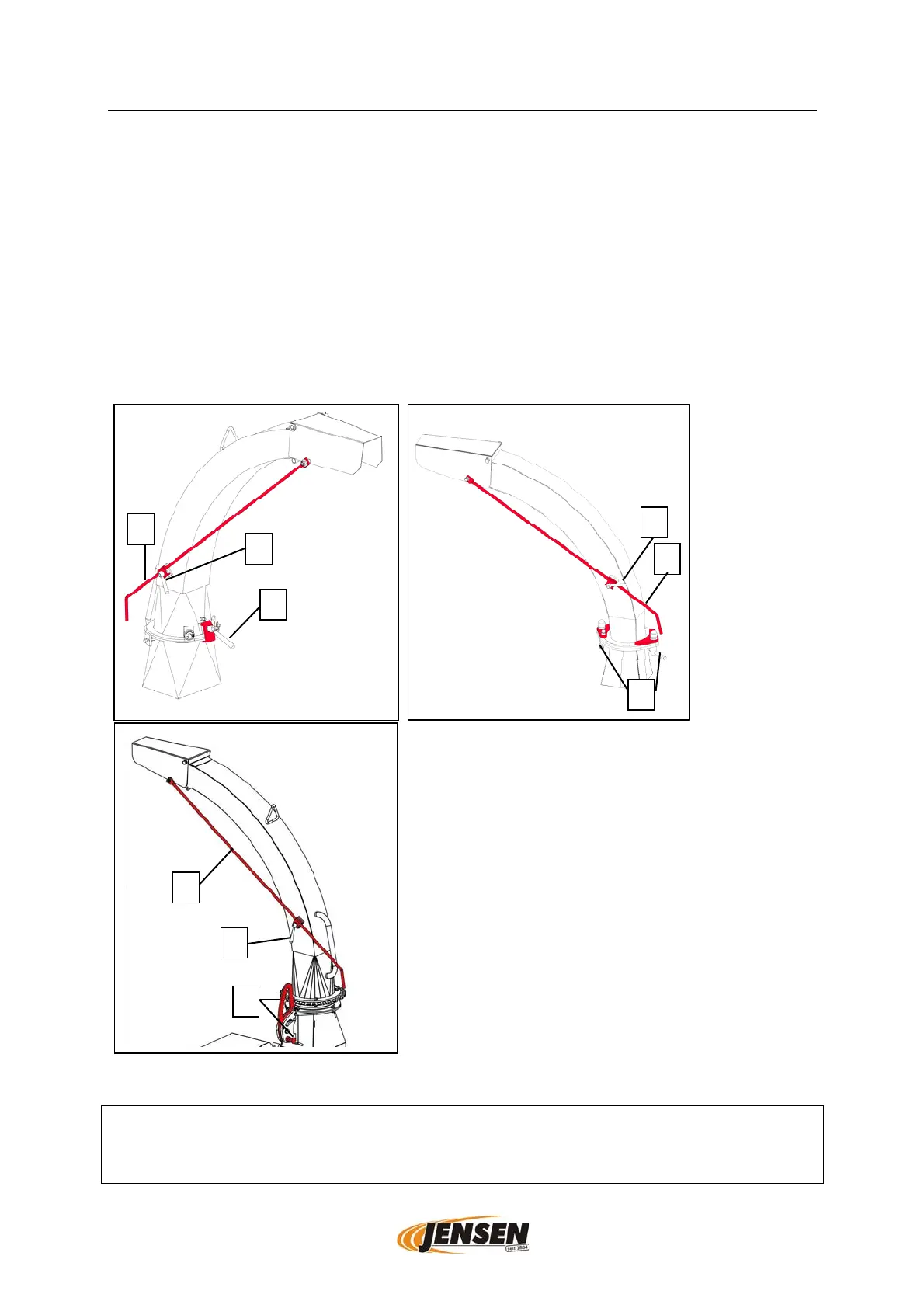

4.3 Positioning of the exhaust chute
1. Release the lock (1).
2. Rotate the exhaust chute in the desired position.
3. Fix the lock (1).
4. Release the lock for the exhaust cap (2).
5. Position the exhaust cap with the bar (3).
6. Fix the bar with the lock (2).
For machines with automatic exhaust positioning or on customer request the
procedure differs from the description in this chapter. The description of these cases
can be found in the appendix (e.g. remote control).
Schematic display, differences in design and type possible.
Danger of injuries and damage of property!
Position the exhaust chute and the exhaust cap away from the operator and other
persons or damageable items.
